Revision L MAC™ 3500 Resting ECG Analysis System 2-5
2021337-036

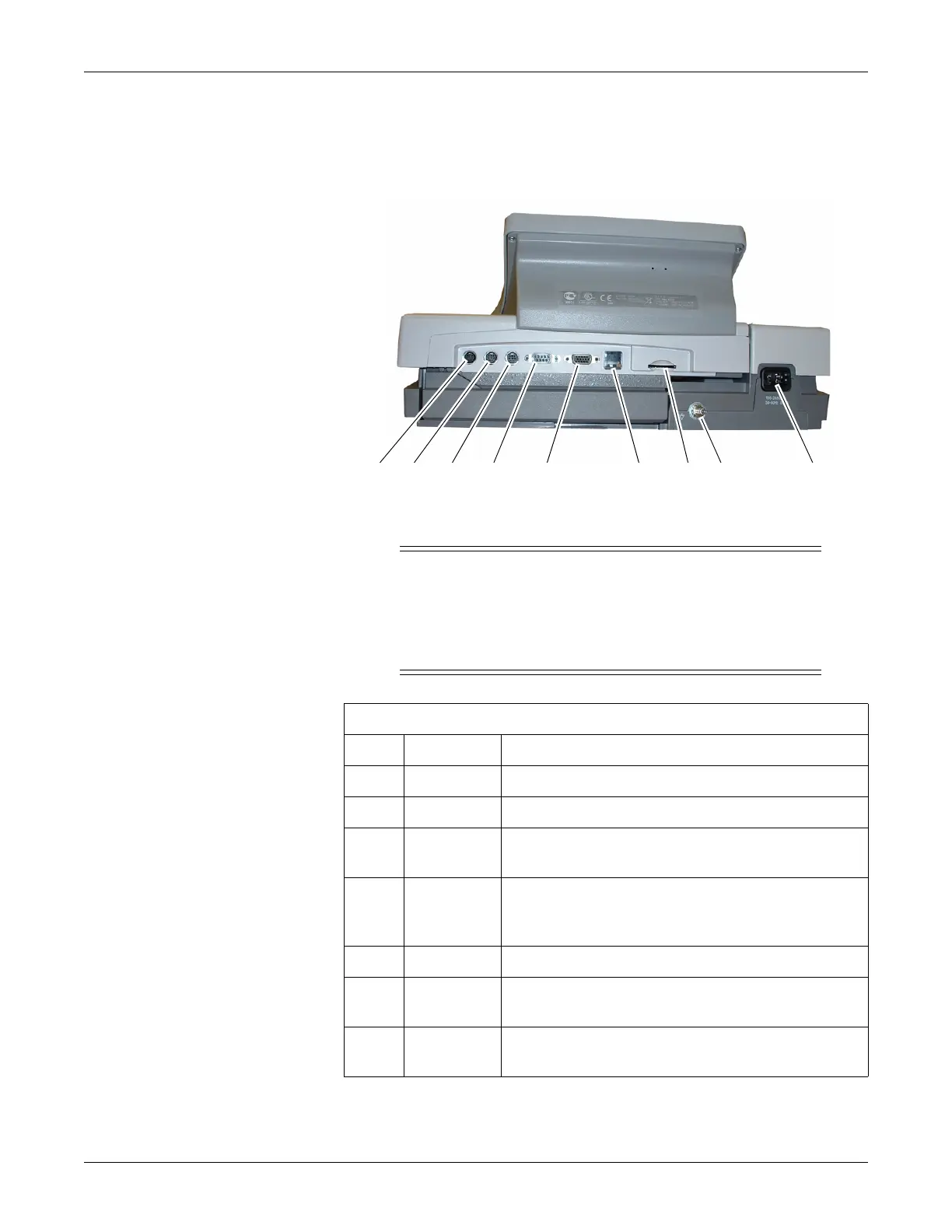

Equipment Overview: Connector Identification
Connector Identification
WARNING
LEAKAGE CURRENT – Keep leakage current within acceptable
limits when connecting auxiliary equipment to this device.
Total system leakage must not exceed 300 microamperes (United
States) or 500 microamperes (international).
Table 4. Back Panel Connectors
Item Name Description
A A Connect an optional card reader o
r optional bar code reader
B 1 External GE KISS pump connection.
C 2 Connect a local transmission cable, seria
l line, modem, or client
bridge (wireless option).
D ANA/TTL Connect a device requiring analog data or TTL trigger
(u
ltrasound, stress echo, ergometer, analog treadmill, blood
pressure units, etc.).
E EXT.VID. Connect an external video display.
F IR Point at a MAC 5000, MAC 5500, MAC 3500, or MUSE
sy
stem’s IR transceiver to transmit or receive ECG data.
G card slot Insert the system card into this slot to archive or restore data
from external media or
to update software.
