6-28 MAC™ 3500 Resting ECG Analysis System Revision L 
2021337-036
Parts Lists: Field Replaceable Units (FRUs)
Harness Kit for MAC 3500, pn 2030871-002
NOTE
This kit is used only for MAC 3500 Display Assembly p/n 2026299-002. It
does
not work with MAC 3500 Display Assembly p/n 2026799-001. If you
need a harness kit for 2026799-001, order Harness Kit 2030871-001.

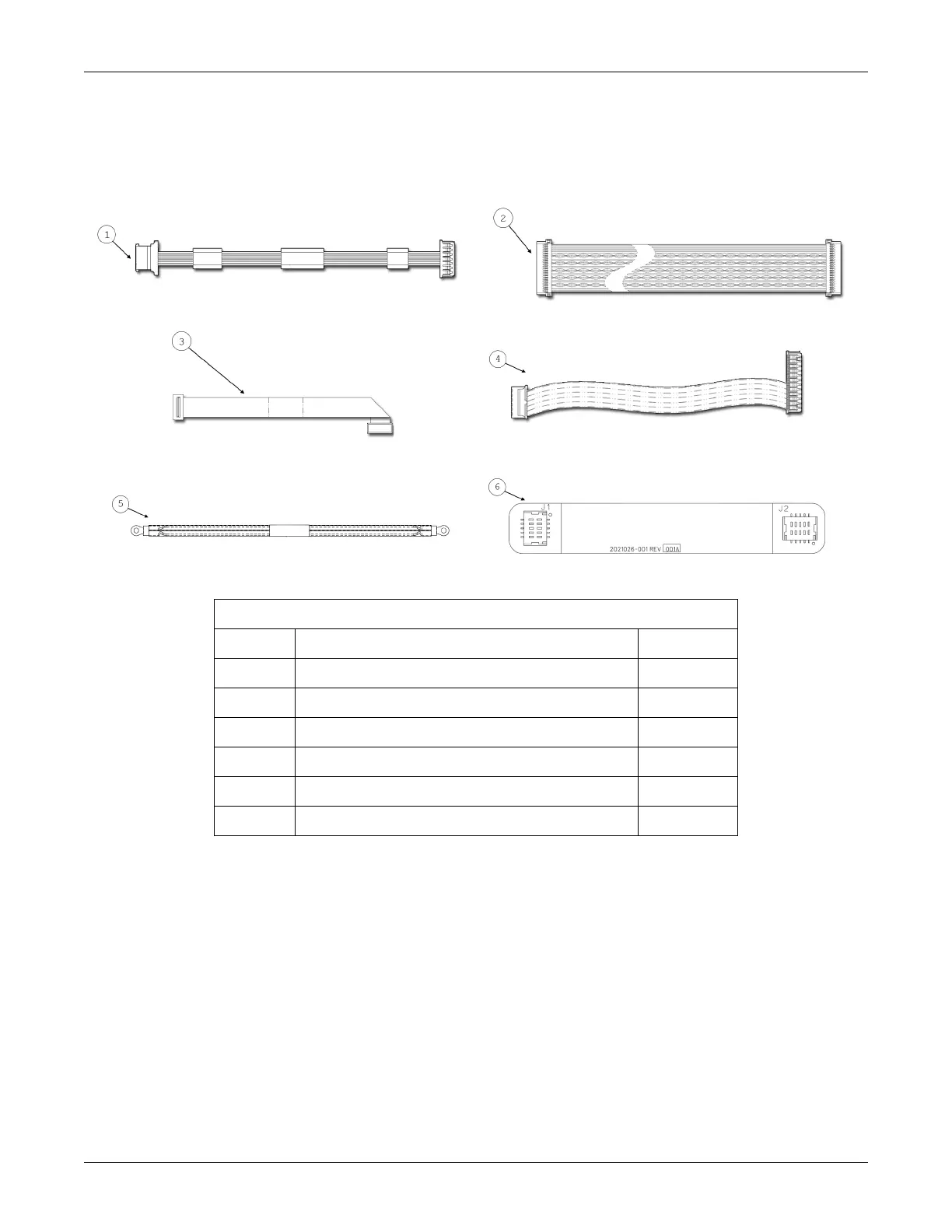

Table 17. Harness Kit, pn 2030871-002
Item Item Description Qty
1 ASSY MAC3500 BACKLIT CABLE-AUO 1
2 MAC3500 LCD CABLE 1
3 ASSY DISPLAY CABLE MAC3500 1
4 MAC3500 POWER CABLE MAIN BOARD TO LVDS 1
5 HARN LCD DISPLAY GROUND 2
6 FLEX CKT ASSY CAM 1
