3-10 MAC™ 3500 Resting ECG Analysis System Revision L 
2021337-036
Installation: General Assembly
Installing the Optional External Modem Kit
NOTE
The internal modem is standard for the MAC 3500.
The modem and its mounting bracket comes as
sembled and ready to install on the
trolley. To install a modem kit on the trolley, complete the following steps:

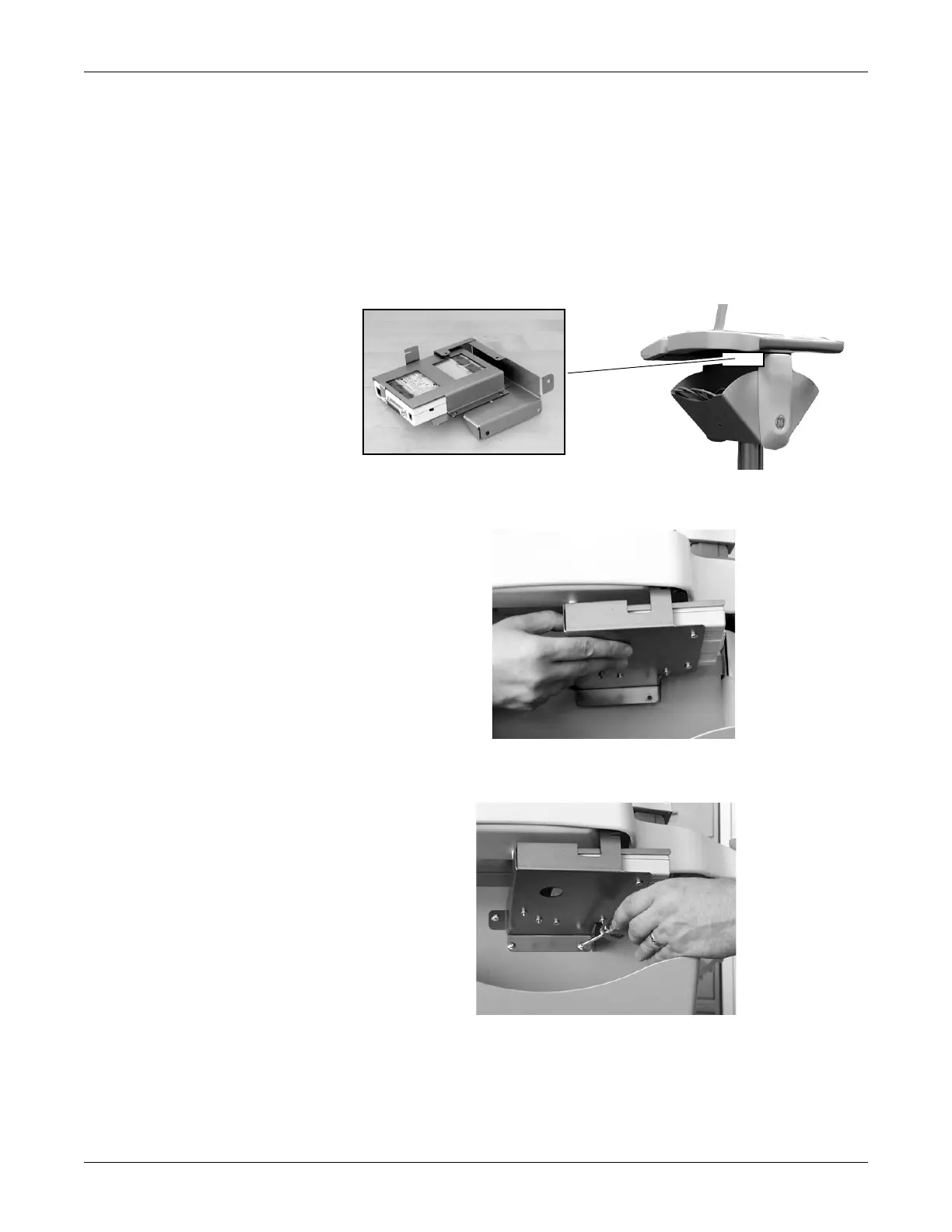

1. Find the modem mounting site located under the patient
cable arm at the rear of
th
e trolley where the kit is to be installed.
2. Slide the assembly up in place so that the bracket s
lot catches on the bracket lip.
3. Tighten the three mounting screws to secure the modem to the trolley.
115A, 116A
117A
118A
