DIRECTION 5472001-1EN, REVISION 6OPTIMA CT680 SERIES AND OPTIMA CT670 INSTALLATION MANUAL

Page 196 Appendix C - Operating Table Installation and Adjustment

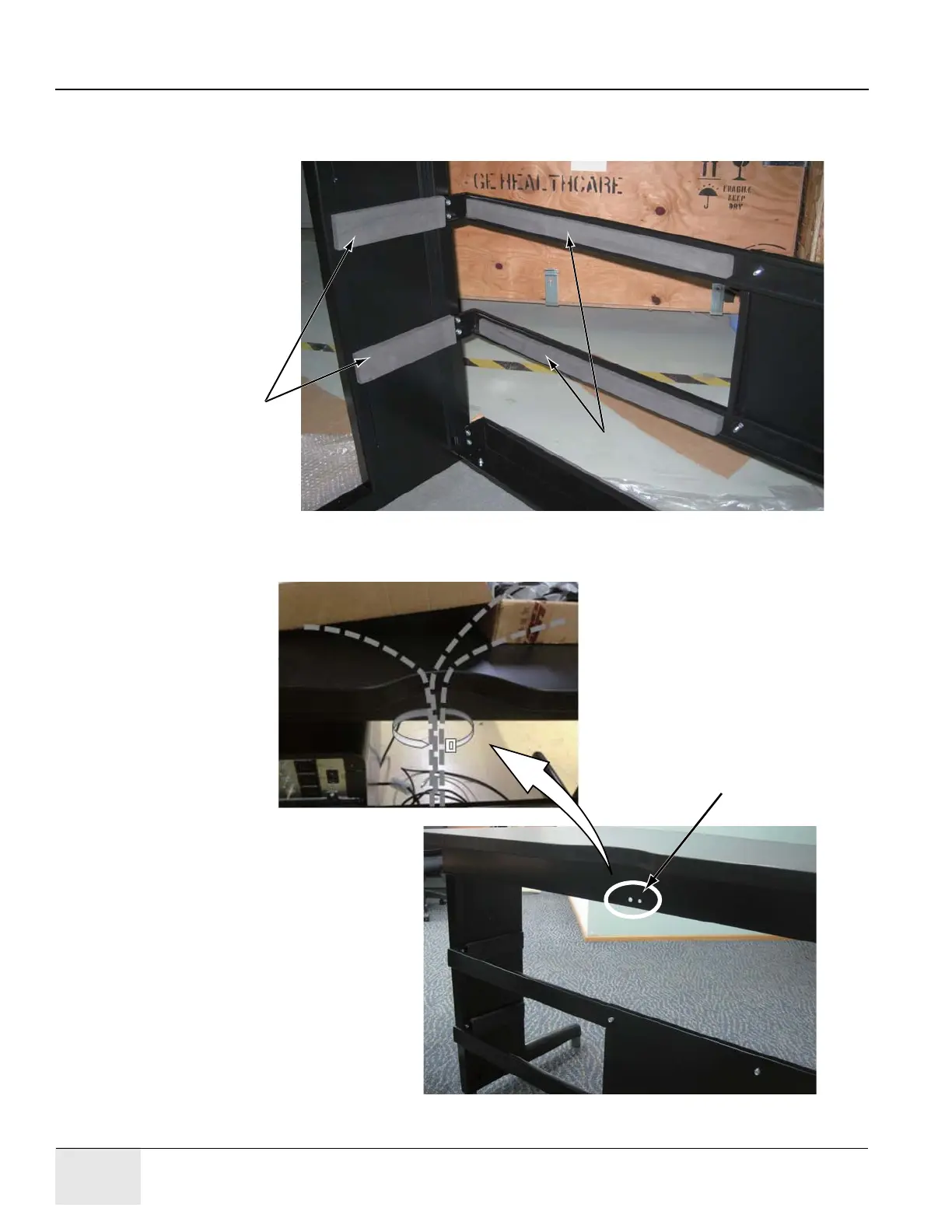

8.) Stick EVA A on the teams and EVA B on the right leg as shown in Figure C-6.

Figure C-6 EVA Attaching

9.) Overturn the table, then place monitors and route cables to the table.

Figure C-7 Route cables to the table

EVA A

EVA B

Holes for Fixing Cables

Default Chapter13
