– 16 –

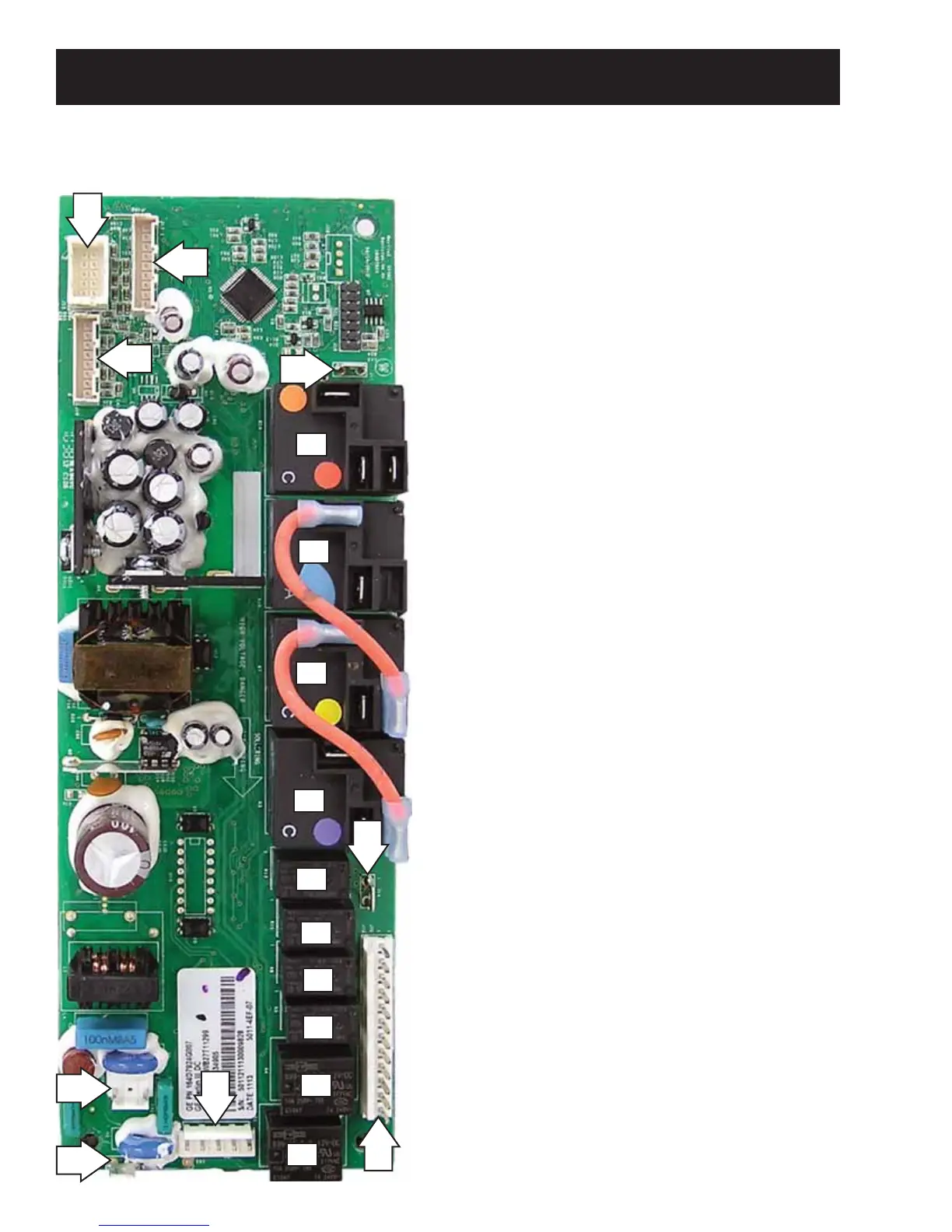

Circuit Boards Connector Locator Views

Relay Power Supply Module - PHS925

J21

J16

J17

(Continued next page)

J7 - Door Lock Motor, Cooling Fan, Jumper

Wire K8 to K1, Warming Drawer Element,

Neutral, Oven Light, Convection Fan Motor

Direction

J10 - Ground

J11 - Neutral Standby

J14 - L1

J15 - RPSM to DRM Communication

J16 - Oven Lock Switch, Oven Unlock Switch, FAD

J17 - Communication Cable (LINbus)

J20 - 240 VAC

J21 - Bad Line Monitor

K1 - Convection Fan Motor Direction

K3 - Broil/Bake Element Selector Relay

K4 - Oven Light

K5 - Cooling Fan

K7 - Bake/Convection Element Selector Relay

K8 - Convection Fan Motor

K10 - Convection Element Relay

K11 - Warming Drawer Element

K13 - Door Lock Motor

K14 - Double Line Break Relay

K11

K13

K10

K14

J10

J20

J14

J11

J15
