– 28 –

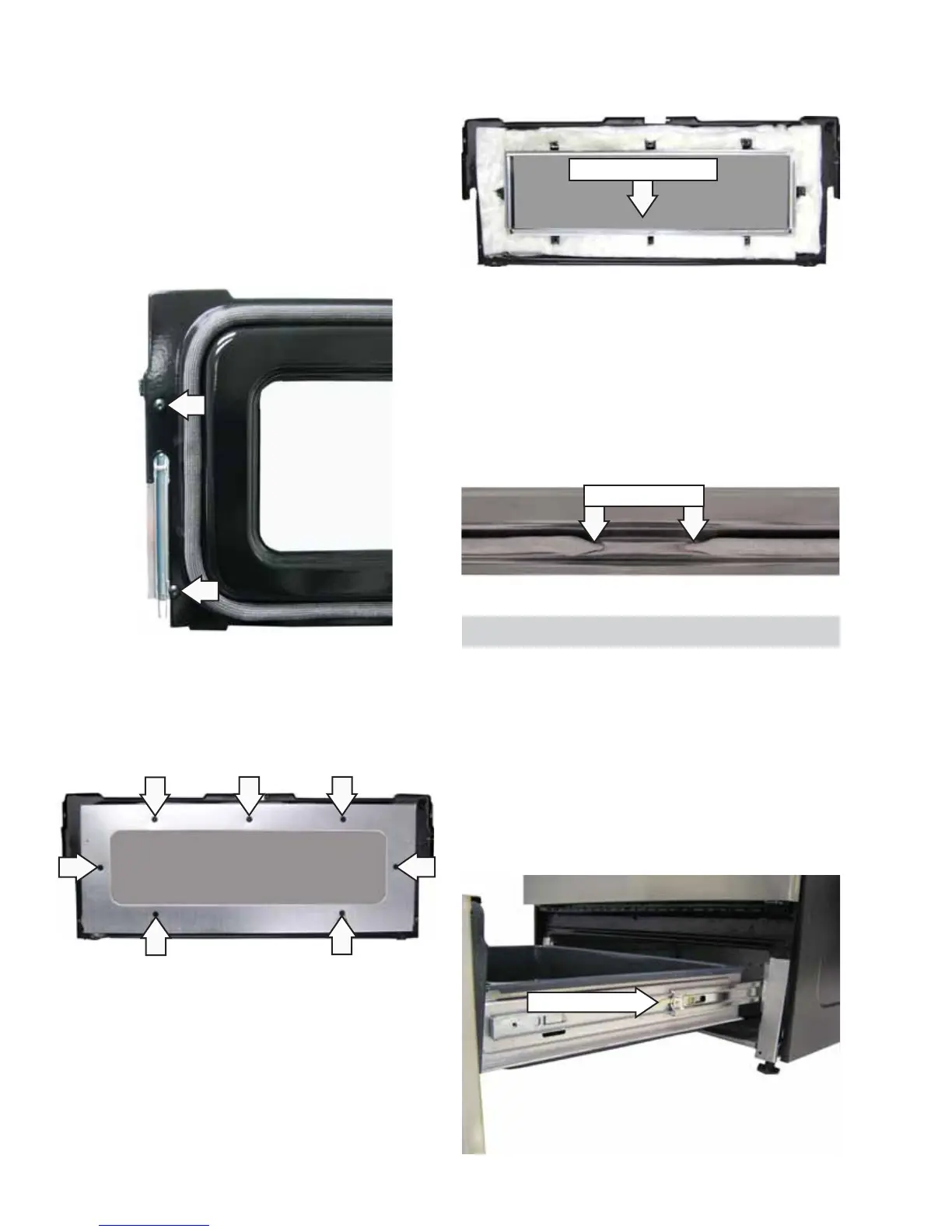

To replace the inner door assembly of the upper
oven door on PS978:
1. Remove the upper oven door outer door
assembly. (See To remove the outer door
assembly of the upper oven door on PS978,
this section.)
2. Remove the four T-20 Torx screws (2 on each
side) that attach each door hinge receiver to the
inner door.
3. Place the inner door panel gasket side down.
4. Remove the seven 1/4-in. hex-head screws that
hold the heat barrier to the inner door panel.
Warming Drawer Assembly
To remove and replace the warming drawer
assembly:
1. Pull the drawer out until it stops. Lift the tab on
the left side and push the tab down on the right
side while pulling the drawer out.
2. To replace the warming drawer, place the
drawer rail in the guides and push the drawer in
until it stops.
Right Side Tab
5. Remove the insulation and the inner glass
assembly from the inner door.
Inner Glass Assembly
When installing the door gasket, it is helpful to fold
the gasket in half and locate the center clip. Insert
the clip at the top of the door and work your way
around the door.
Make sure the gasket is tucked in the bottom slots of
the inner door panel. Use a small screwdriver to tuck
the loose ends of the gasket into the slots.
Bottom Slots
