– 56 –

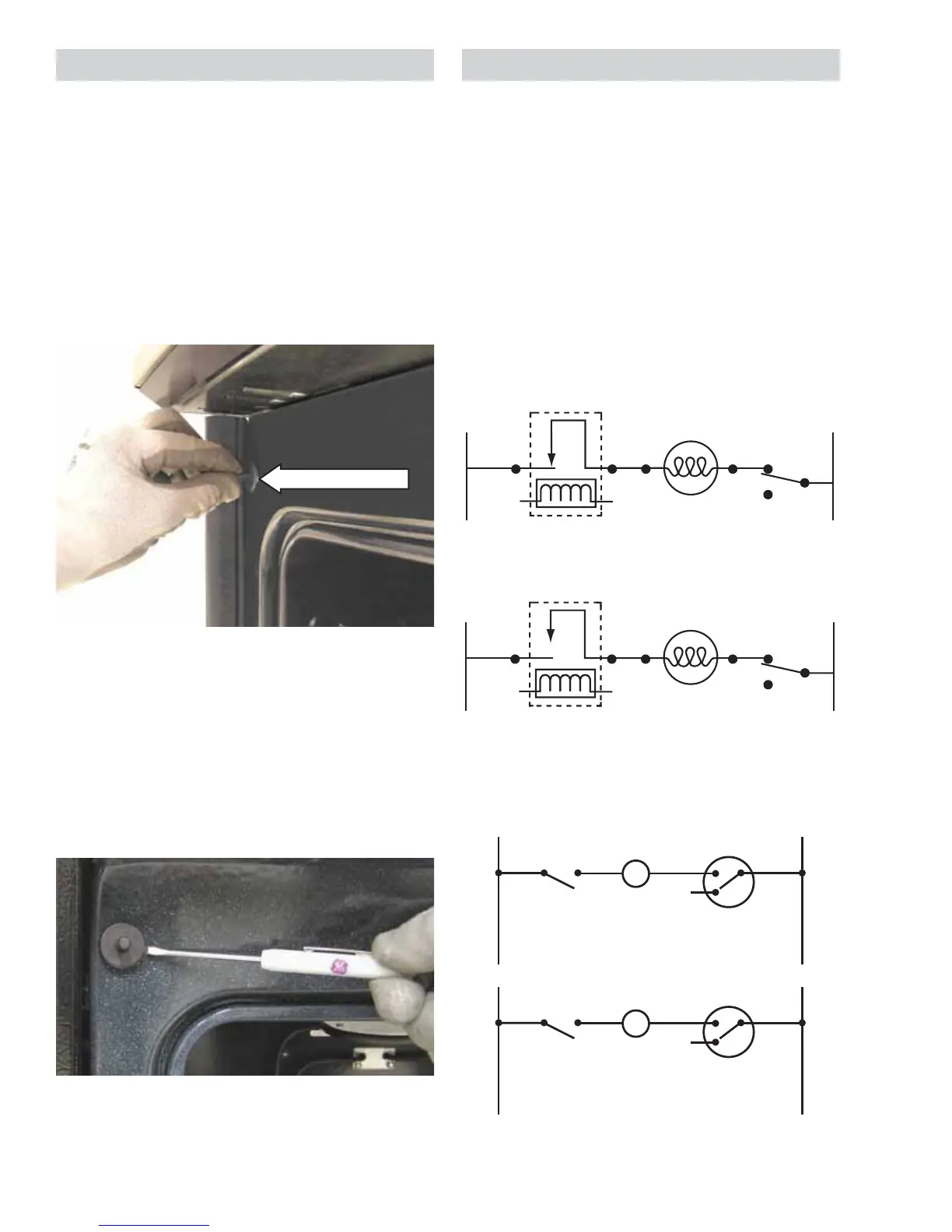

Door Switch
The oven utilizes a door switch located on the left
side of the door frame that is accessible from the
front. The oven door switch monitors the position of
the oven door and provides this information to the
oven's control board.
To remove the door switch:
1. Disconnect power to the range.
2. Pull the switch forward to locate the ends of 2
spring clips (1 on each side).
3. Insert a small fl at-blade screwdriver on 1 of 2
spring clips and depress the spring clip while
pulling the switch from the door frame.
4. Insert the small fl at-blade screwdriver on the
other spring clip, depress the spring clip, and
continue pulling the switch from the door frame.
5. Disconnect the door switch wire harness.
Spring Clip (1 of 2)
(Continued next page)
Door Lock Assembly
A motorized door lock assembly is located above
each oven. The assembly consists of a lock motor
cam and switch assembly, lock hook, and mounting
plate.
The lock motor is energized when the control is set
for clean and clean time selected. The lock relay
contacts will close and complete the circuit that
supplies the voltage to the lock motor. On PHS925
models, the oven latch is controlled by the RPSM. On
PS978 models, the upper oven latch is controlled by
the RPSM and the lower oven latch is controlled by
the DRM.
Door Locking/Unlocking Strip Circuit-PSH925
;
;>2:A4;0H
9 # 9&
;>2:
<>C>A
3>>A
BF8C27
=
=2
2
=>
;
;>2:A4;0H
9 # 9&
;>2:
<>C>A
3>>A
BF8C27
=
=2
2
=>
All Other Modes With Door Closed
L1 N
J14 MJ7-1
MK13
UPPER
DOOR
CLOSE DOOR
OPEN DOOR
LOCK
DOOR
SWITCH
MOTOR
M
D1J6-6 D1J6-7
D1K12
LOWER
DOOR
CLOSE DOOR
OPEN DOOR
LOCK
DOOR
SWITCH
MOTOR
M
Door Locking/Unlocking Strip Circuit-PS978
