Convection Element
• The element is rated at 2500 watts, has an
approximate resistance value of 23 , and
draws approximately 10 amps.
• The convection bake element is located on the
back wall of the oven and can be removed from
inside the oven cavity.
The convection element operates during the
following modes:
• Preheat
• Convection Bake
• Convection Roast
• Clean

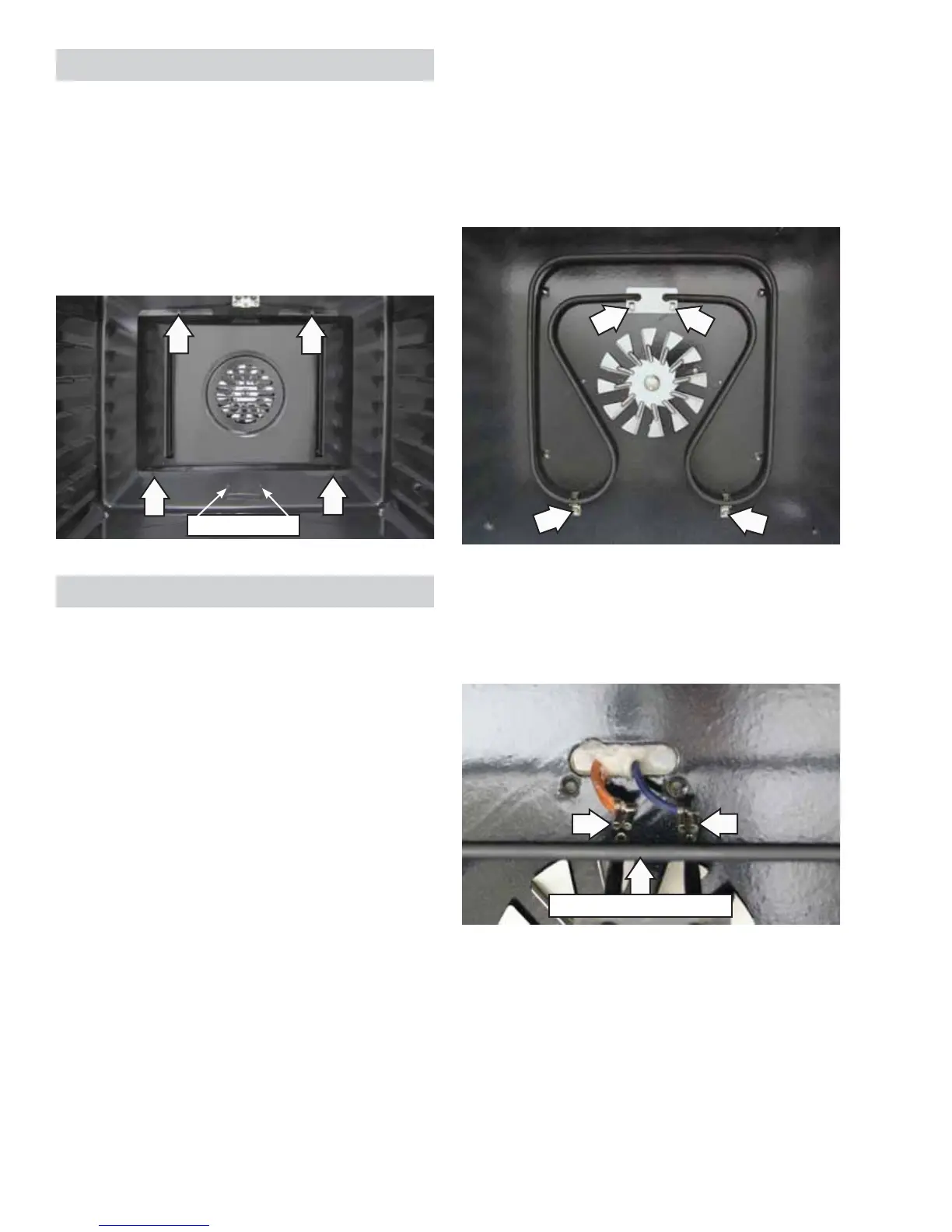

Convection Fan Cover
The convection fan cover is attached to the back
wall of the oven with four T-20 Torx screws. It is
necessary to remove the oven racks, and it is helpful
to remove the oven door (See Oven Door Assembly.)
when removing the convection fan cover.
Note: On PHS925, do not remove the two T-20 Torx
screws located near the bottom of the oven cavity
back wall.
Do Not Remove
To remove the convection bake element:
1. Remove the convection fan cover. (See
Convection Fan Cover.)
2. Remove the four 1/4-in. hex-head screws that
hold the convection element to the back wall of
the oven cavity.
3. Carefully pull the convection element towards
the front of the oven until the element terminals
are accessible.
4. Disconnect the wires from the convection
element.
Note: Upon reassembly, ensure displaced insulation
around oven and components is returned to its
original position.
