– 47 –

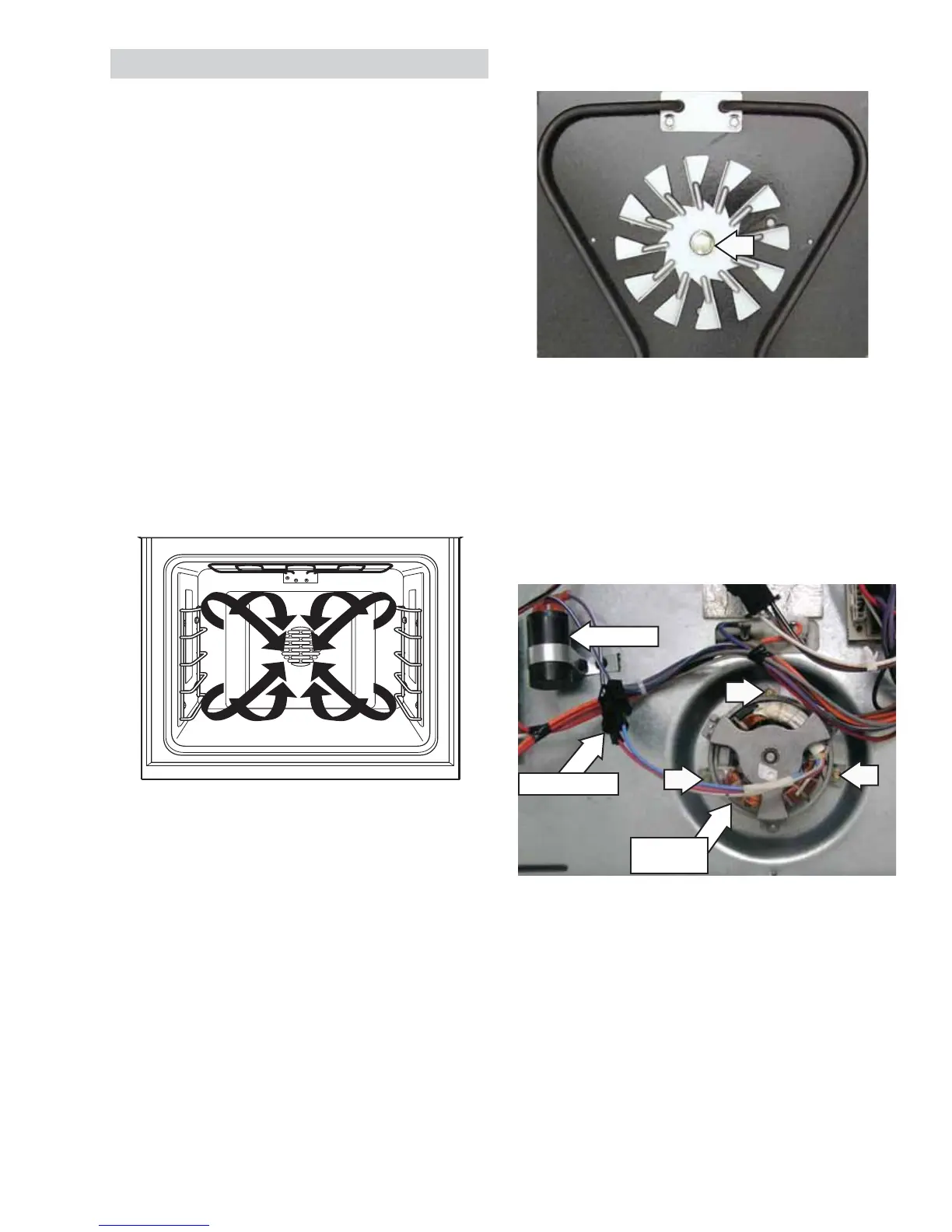

Convection Fan Assembly
The convection fan assembly is located on the
back wall of the oven cavity and consists of the
convection cover, fan blade, and motor. The fan
motor utilizes a capacitor that can be accessed
from the back of the range. (See Component Locator
Views.) The convection fan assembly can be
removed from the back of the range.
The convection fan operates during the following
modes:
• Preheat
• Convection Bake
• Convection Roast
The convection fan will turn on (after a short delay).
The fan may cycle on and off, and change direction
in any of these modes to best distribute hot air in
the oven. The convection fan shuts off when the
door is opened.
The convection fan motor has approximate
resistance values between the following wires:
• Red and Blue: 174
• Red and Gray: 78
• Blue and Gray: 96
To remove the convection fan and motor
assembly:
1. Remove the convection fan cover. (See
Convection Fan Cover.)
Note: The convection fan blade is attached to the
"D" shaped motor shaft with a left-hand thread 1/2-
in. hex-nut. Turn the nut clockwise to remove.
Convection Airfl ow
3. Pull the fan blade off the "D" shaped motor
shaft.
4. Remove the rear cover. (See Rear Cover.)
5. Disconnect the fan motor wire harness.
6. Remove the three 1/4-in. hex-head screws that
hold the convection fan motor to the range.
2. Remove the fan blade nut.
Convection
Fan Motor
Wire Harness
Capacitor
To Next Page
