– 33 –
Left Side Panel
It is necessary to remove the left side panel to
replace the bake element, hinge receiver, and upper
oven liner.

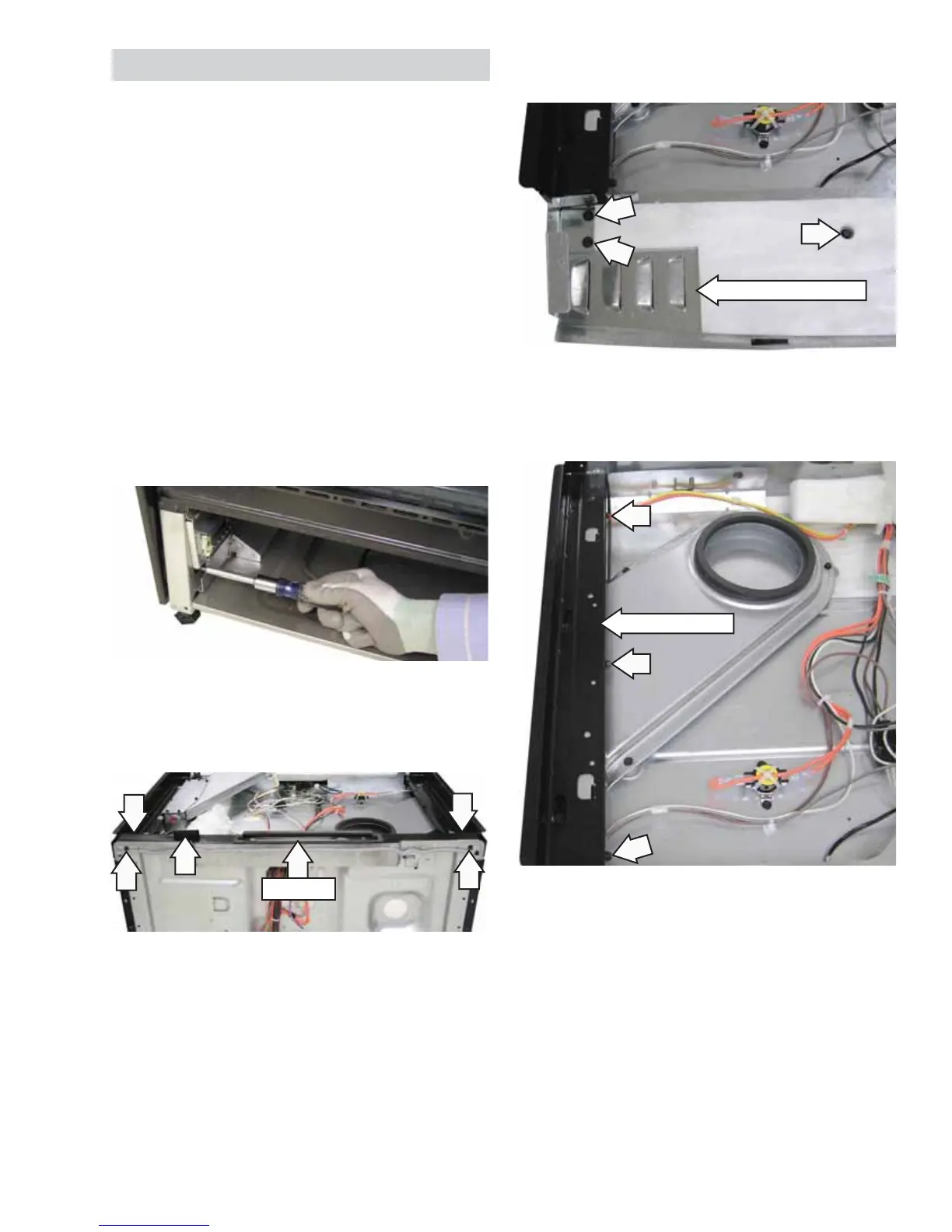

To remove the left side panel on PHS925:
1. Disconnect power to the range.
2. Remove the oven door and warming drawer.
(See Oven Door Assembly, Warming Drawer
Assembly.)
3. Remove the range from its installation.
4. Remove the cooktop. (See
Cooktop Assembly.)
5. Remove the rear cover. (See
Rear Cover.)
6. Remove the 1/4-in. hex-head hidden screw
located in the recess near the front leveling leg.
7. Remove the fi ve 1/4-in. hex-head screws (3 at the
rear and 2 on top) that attach the rear vent to the
range. Lift and remove the rear vent.
Rear Vent
8. Remove the three 1/4-in hex-head screws from
the top front of the control panel support.
Control Panel Support
9. Remove the three 1/4-in. hex-head screws from
the extension brace.
Extension Brace
(Continued next page)
