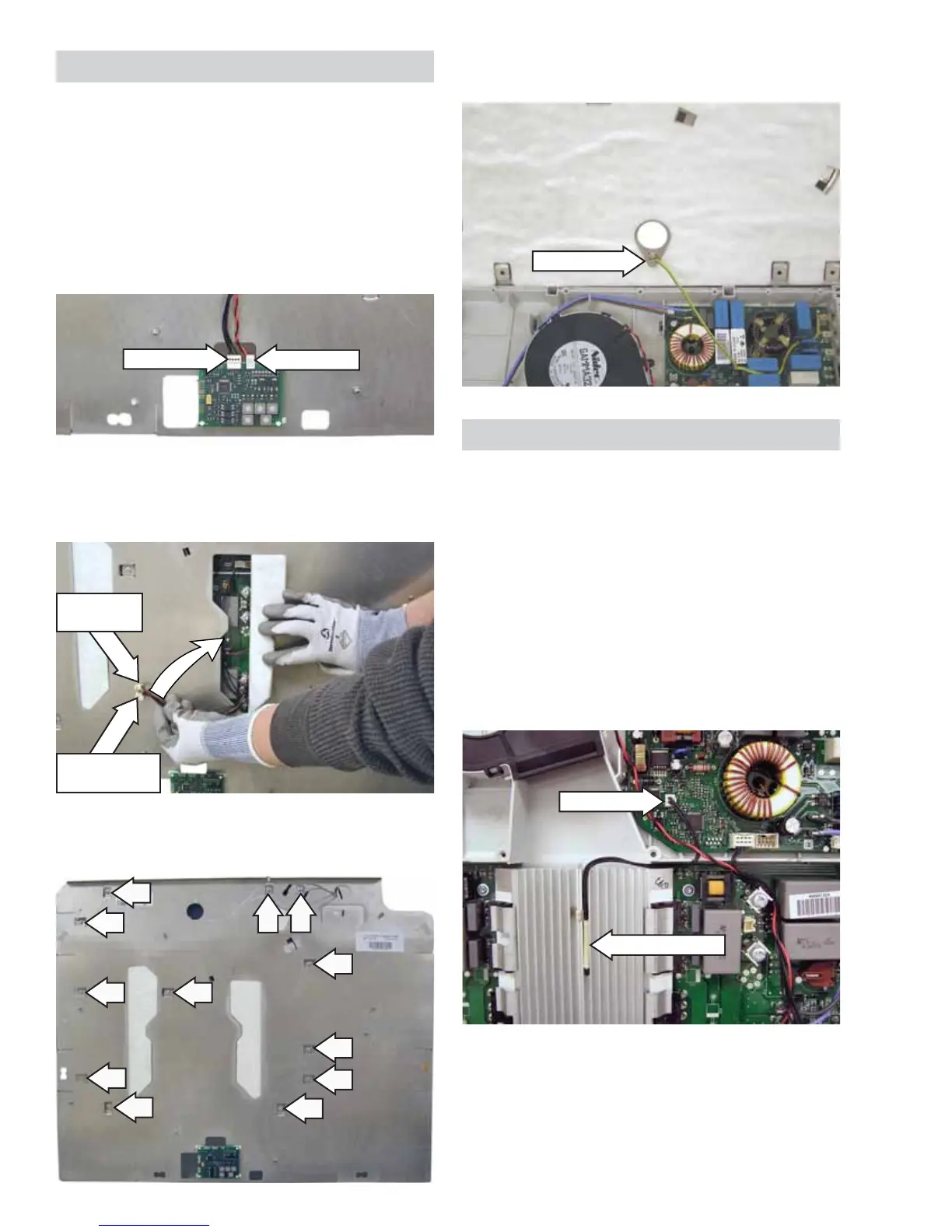

– 70 –
6. Lift the front of the aluminum plate up and
disconnect the ground wire.
Ground Wire
Thermal Cut Out
The thermal cut out is located between the fi ns of
each generator board heat sink and is connected
to the fi lter board with a wire harness. The location
of the thermal cut out allows it to sense an over-
temperature condition of the generator board.
The thermal cut out has a resistance value of less
than 1 Ω and opens at approximately 250°F. An
open thermal cut out will stop operation of the
cooktop. If the thermal cut out is open, check for
proper operation of the fan and possible vent
obstructions.
Thermal Cut Out
Disconnect
Induction Module
To remove the induction module:
1. Remove the cooktop elements. (See
Cooktop
Elements
.)
2. Mark and disconnect the 2 wire harnesses from
the bridge board.
3. Remove the plastic wire tie from the aluminum
plate.
4. Fold back insulation and place the fi lter-to-
bridge board and cooling fan harnesses inside
the module.
5. Remove the 12 Phillips-head screws that attach
the module to the aluminum plate.
Cooling Fan
Harness
Filter-to-Bridge
Harness
Disconnect
Disconnect
To Next Page
