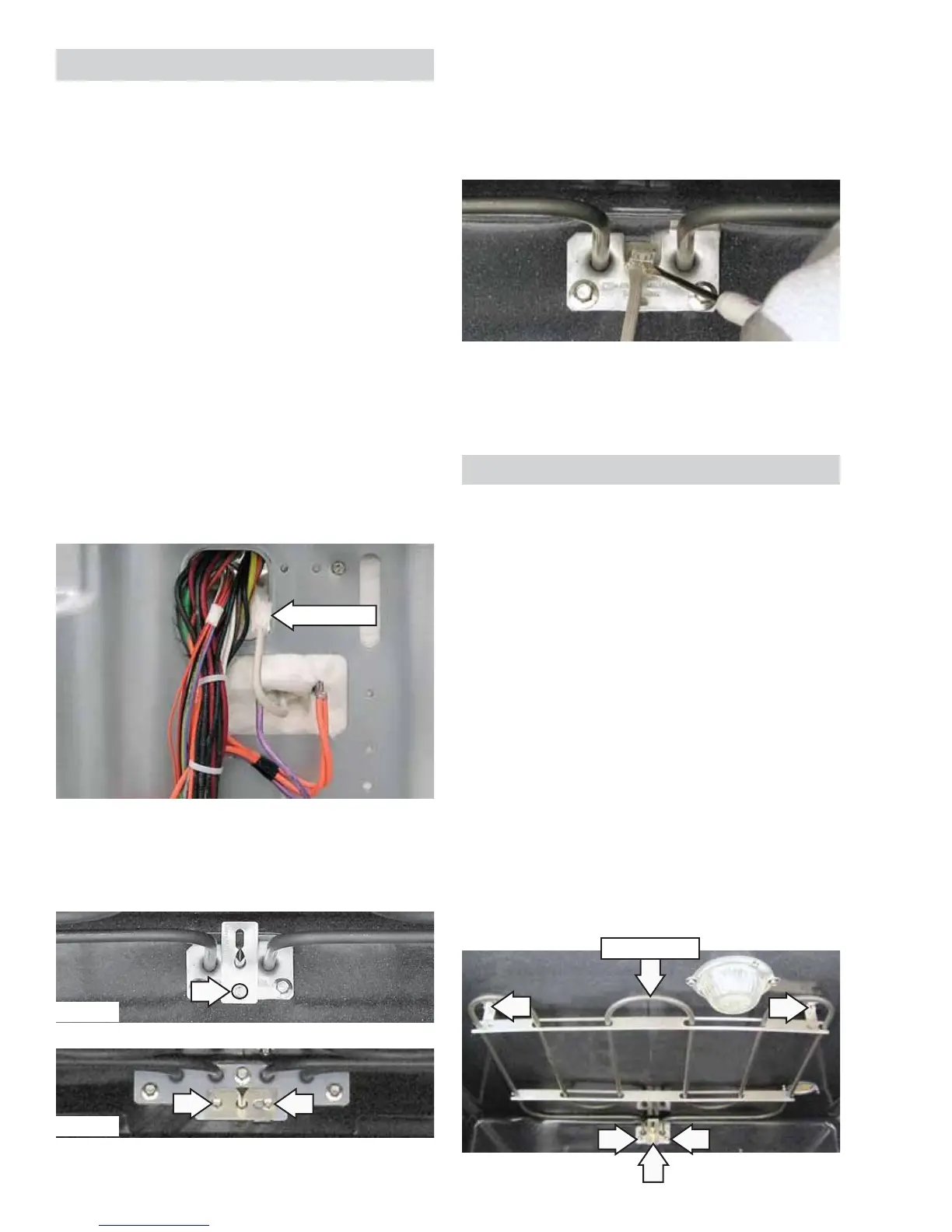

– 44 –
Disconnect
5. Carefully pull the sensor and sensor wiring
harness from the oven liner.
Note: When reinstalling the sensor, use a small fl at-
blade screwdriver to push and guide the sensor wire
harness into the oven liner.
Broil Element
Broil Element PSH925
• The broil element will not work if the meat probe
is plugged in.
• The broil element is located at the top of the
oven cavity. The oven sensor must be removed
to access the broil element.
The broil element is rated at 3800 watts and has
an approximate resistance value of 15 Ω. When
energized, the broil element will draw approximately
15 amps.
To remove the broil element:
1. Remove the 1/4-in. hex-head screw that
attaches the sensor to the back of the oven
cavity. (See Oven Temperature Sensor.)
2. Remove the four 1/4-in. hex-head screws that
attach the broil element to the oven cavity.
Note: Upon reassembly, ensure displaced insulation
around oven and components is returned to its
original position.
(Continued next page)
4. Remove the 1/4-in. hex-head screw (PHS925),
or the two 1/4-in. hex-head screws (PS978), that
attach the sensor to the broiler element bracket.
PHS925
PS978
Broil Element
Oven Temperature Sensor
The oven sensor is located on the back wall of
each oven cavity and attached to the broil element
bracket. The oven temperature sensor is connected
to the main logic board at location J501 and at
location J502 for PS978. The oven temperature
sensor has an approximate resistance of:
• 1080 at room temperature
• 1654 at 350°F
• 2650 at 865°F (Clean temperature)
The oven temperature sensor has a resistance
change rate of 2 per °F.
To remove the oven temperature sensor:
1. Disconnect power.
2. Remove rear cover. (See Rear Cover.)
3. Disconnect the sensor wire harness.
To Next Page
