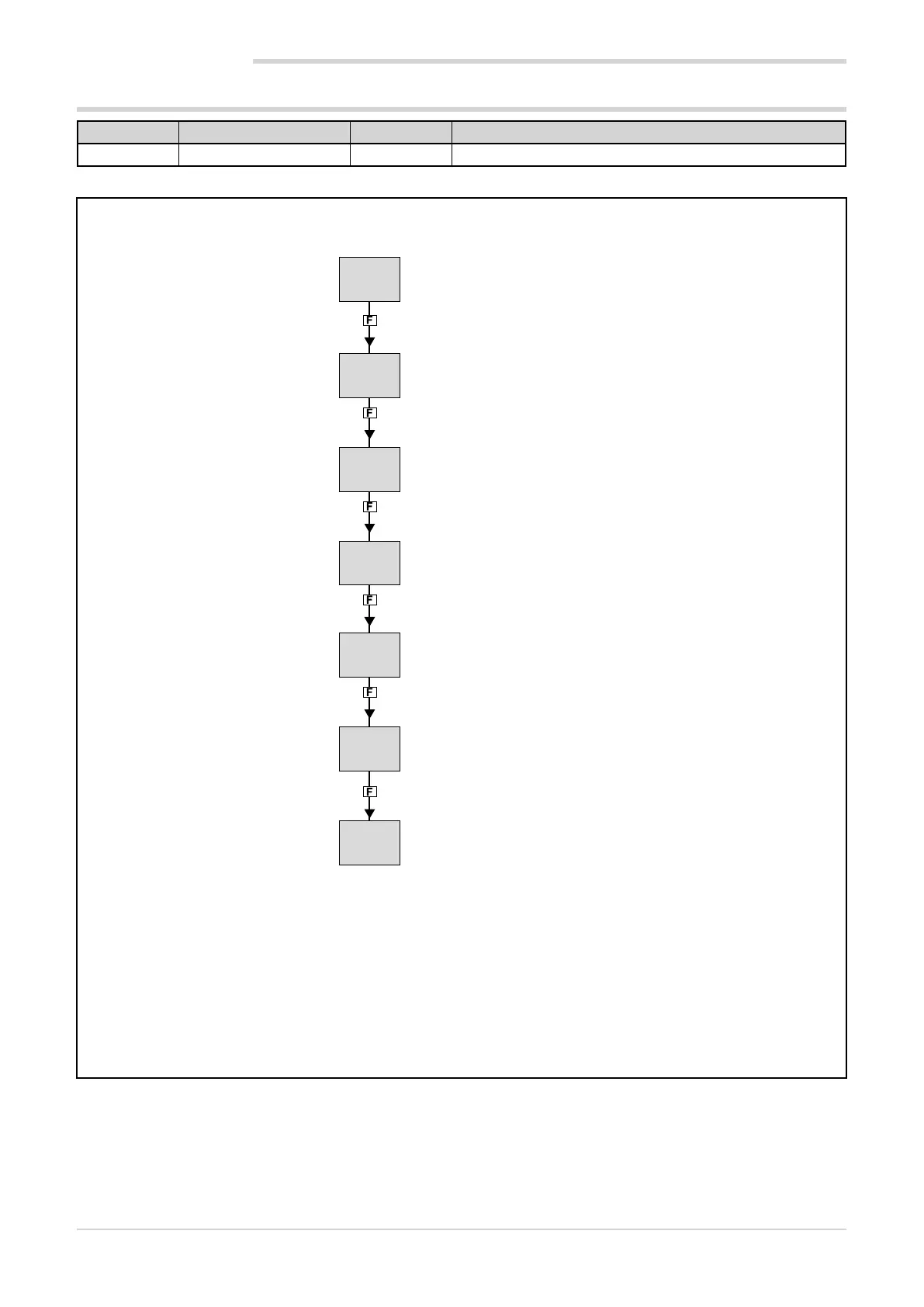

80224_MHW_650 L - 1250 L_07-2018_ENG - 52
Acronym
Scrolling message
Password
Description
OUTPU
OUTPUT CONFIG
Level 2
Lets you configur
e the indicator outputs.
4.8.
OUTPU Submenu – Configuring outputs
OUT.N
S.ou.x
F
F.ou.x
IN.DGN
SWTCH
FAULT
MSG.OU
Parameter
page
Selecting the output
53
Defining the output
state
53
Selecting the
function assigned
to relay
53
Setting the digital
input number
53
Setting the number
of cycles for signal
54
State of output with
broken input
54
Selecting the output
message
54
4. CONFIGURA
TION
53
55
Table of Contents
Contents
3
Table of Contents
3
Device Data
5
Introduction
5
Warnings and Safety
5
Glossary
6
Symbols Used in this Manual
6
Copyright
7
Disclaimer
7
1 General Description
8
Profile
8
Differences between Models
9
Indicator 650 L
10
Display and Keys 650 L
10
Cutout and Mounting Dimensions
11
Indicator 1250 L
12
Display and Keys 1250 L
12
Cutout and Mounting Dimensions
13
2 Installation
14
Mounting the Indicator
14
General Considerations
14
Mounting Dimensions
14
Protection against Infiltration of Dust
14
And Water
14
Vibrations
15
Minimum Space for Ventilation
15
Positioning
15
Fastening to the Panel
15
Connections
16
General Considerations
16
Electromagnetic Compatibility (EMC)
16
Cables
16
Power Supply
16
Connecting Inputs and Outputs
17
Connection Diagrams
18
General Diagram
18
Power Supply
19
Inputs
19
Outputs
19
Options
20
1250 L Connection Diagrams
21
General Diagram
21
Power Supply
22
Inputs
22
Outputs
22
Digital Inputs
23
Serial Line
23
Analog Output
23
RS485 Serial Connection Diagram
24
3 Commissioning
25
Information on Displays and Use of Keys
25
Menu Navigation
25
Displays
25
Display Characters
25
Power-On Sequence
26
Scrolling Messages
26
First Power-On
27
Fast Configuration
27
Setting up Quick Configuration
31
Setting up the Alarm
31
4 Configuration
32
Programming/Configuration Menu
32
First: Know What You're Doing
32
Passwords
32
Password in the User Menu
32
Main Menu
33
Legend for Submenus and Parameters
34
Submenu
34
Parameters
34
INFO Submenu - Information Display
35
SW.VER - Software Version
36
CODE - Serial Address of the Indicator
36
ERROR - Primary Input Error
36
SAP.C - SAP Code
36
Ser.n - Serial Address of the Indicator
36
Model of Indicator
37
INDIC - Type of Indicator
37
OUT.A1 - Analog Output 1 Available
37
X.in.dg - Digital Input Available
37
RS485 - RS485 Serial Port Available
37
Out1 - Type of Output
38
Out2 - Type of Output
38
Out3 - Type of Output
38
OUT1.S - Number of Cycles Output 1
38
OUT2.S - Number of Cycles Output 2
38
OUT3.S - Number of Cycles Output 3
39
T.DAYS - Total Working Days
39
P.DAYS - Partial Working Days
39
T.INT - Internal Temperature of Indicator
39
T.MIN - Minimum Internal Temperature of the Indicator
39
T.MAX - Maximum Internal Temperature of the Indicator
40
I.MAIN Submenu - Configuration of Main Input
41
Type - Selecting Sensor Type
42
SBR.E - Enabling Sensor Break Alarm (SBR)
43
Lin - Linearization Type
44
Unit - Displayed Engineering Units
44
FILT - Digital Filter
44
FILT.D - Digital Filter on PV Display
45
DEC.P - Number of Decimals Displayed
45
LO.SCL - Lower Limit of Scale
45
HI.SCL - Upper Limit of Scale
46
OF.SCL - Scale Offset Correction
46
LO.AL - Lower Limit for Alarms
46
HI.AL - Upper Limit for Alarms
46
ALARM Submenu - Configuration of Alarms
47
ALARM - Selecting the Alarm to be Configured
48
Selecting Direct or Inverse Alarm
48
Selecting Absolute or Deviation Alarm
48
Selecting Hysteresis Type
48
PWON.E - Disabling the Alarm at Power-On
49
LATCH - Set Alarm Latching
49
HYSTE - Hysteresis
49
DELAY - Alarm Trip Delay
50
MSG.AL - Alarm Message
50
MSG.AN - Alarm Reset Message
50
BLK.AL - Flashing of PV Display
51
BLK.AN - PV Display Alarm Flashing with Alarm Reset
51
I.DIGT Submenu - Configuring Digital Inputs
52
I.DIG.N - Selecting the Digital Input
53
S.in.X - Defining the Input State
53
F.in.X - Selecting the Assigned Function
53
MSG.IN - Selecting the Digital Input Message
53
OUTPU Submenu - Configuring Outputs
54
OUT.N - Selecting the Output
55
S.ou.X - Defining the Output State
55
F.ou.X - Selecting the Function Assigned to Relay, Logic or Triac Output
55
IN.DG.N - Setting the Digital Input Number
55
SWTCH - Output Cycle Limit Alarm
56
FAULT - State of Output with Broken Input
56
MSG.OU - Selecting the Output Message
56
OUT.AN - Submenu - Configuring the Analog Retransmission Output
57
S.o.a1 - Defining the Signal Direction of the Analog Output
58
T.o.a1 - Defining the Type of Analog Output
58
LO.A1 - Scale Minimum
58
HI.A1 - Scale Maximum
58
MODE Submenu - Functionality Configuration
59
Dig - Defining Type of Digital Inputs
60
ALRM.N - Number of Alarms Enabled
60
TY.TM - Base Time Settings for ALARM1 Alarm Condition Persistence
60
SERIA Submenu - Configuring Serial Communication
61
CODE - Identification Code
62
KBAUD - Selecting Communication Speed
62
Par - Selecting Parity
62
HMI Submenu - Configuring the Display and Keypad
63
Barg - Selecting the Bargraph Display
64
MSG.LO - -Lo Message Display
64
MSG.HI - -Hi Message Display
64
MSG.ER - Err Message Display
65
MSG.SB - Sbr Message Display
65
Lang - Display Language
65
SPEED - Message Scrolling Speed
65
BACKL - Backlighting Level
66
QUICK - Quick Configuration Menu
66
LINRZ Submenu - Configuring Custom Linearization
67
Stp.XX - Value of Step XX
68
MV.STA - Setting MV at Start of Scale
68
MV.FUL - Setting MV at Full Scale
68
MV.50C - Setting MV at Temperature of 50 °C
68
CAL Submenu - User Calibrations
69
U.CAL - Selecting the User Calibration
70
CAL - Resetting the Factory Calibration
70
C.LOW - Calibrating Minimum Current / Voltage
70
C.HIGH - Calibrating Maximum Current / Voltage
70
RTD.LO - Calibrating Minimum Resistance Value
71
RTD.HI - Calibrating Maximum Resistance Value
71
C.LO - Setting Analog Output Minimum
71
C.HIG - Setting Analog Output Maximum
71
PASC0 - Setting Level 0 Password
72
PASC1 - Setting Level 1 Password
72
PASC2 - Setting Level 2 Password
72
CFG - Entering the Reset Code
72
5 Examples and Application Notes
73
Control Application
73
Connection Diagram
73
Quick Configuration Procedure for Model 650L - R-RR0-00000-1-G
74
4-Point Input Correction
75
Alarms
76
Generic Alarms AL2-4
76
6 Programming with PC
77
Indicator-PC Connection
77
Programming Tool
77
Gf_Express
77
System Requirements
77
7 Operator Guide
78
Displays and Keys
78
Navigating the Menus
78
Power-On
78
Operation as Indicator
78
Errors During Operation
79
Configuration (User Menu)
80
8 Maintenance
83
Replacing the Indicator
83
Replacing the Gasket
83
Cleaning
83
Disposal
83
9 Technical Data
84
10 Order Methods
87
Model List
87
1250 L Model List
87
11 Accessories
