5. EXAMPLES AND APPLICATION NOTES
5. EXAMPLES AND APPLICATION NOTES
5.1. Control application
A TC measures temperature. Each branch of the circuit is
protected by a fuse and the alarm relay is protected with a
snubber circuit. Keep in mind one switch can control multi-
ple indicators.
The diagram below shows the various connections.
With Quick Configuration you set:
• sensor type (TC);
• engineering units of temperature (°C);
• the temperature value that trips the alarm (ALRM1).

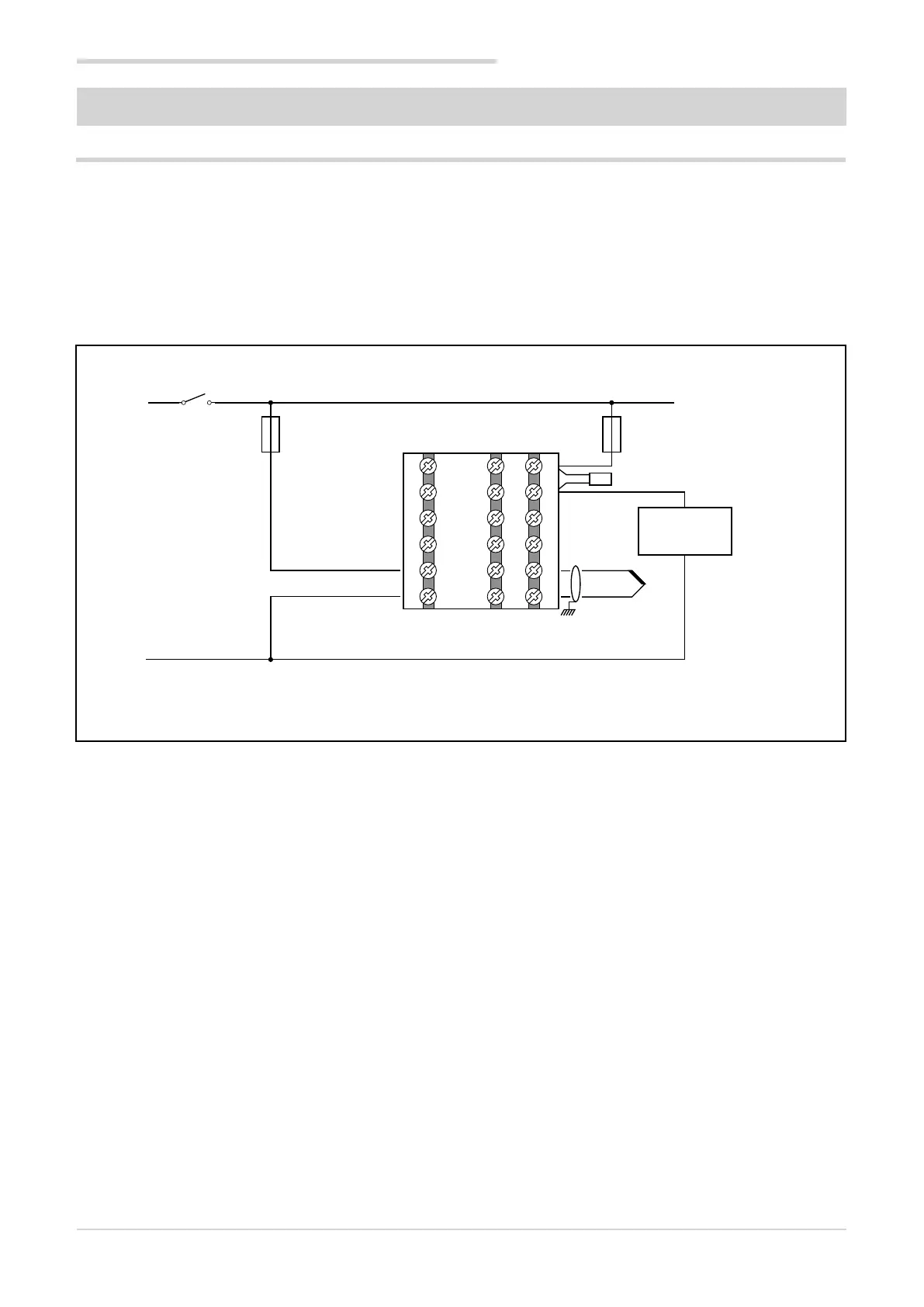

5.1.1. Connection diagram
6
5
4
3
2
1
7
8
9
10
11
12
19
20
21
22
23
24
+
-
T/C
L
N
Fuse relay alarmindicators
fuse
Cooling
alarm
650 L
Snubber
