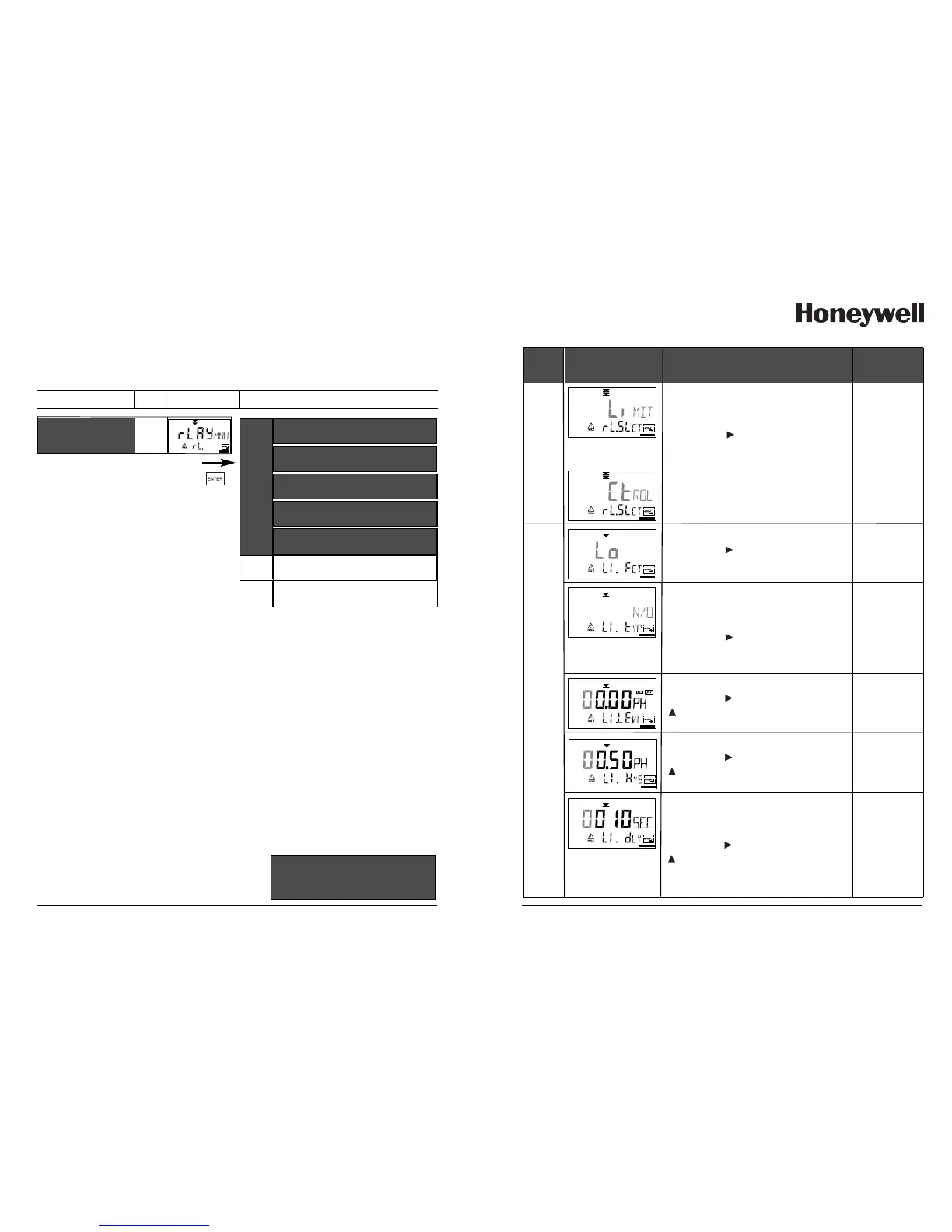

Honeywell APT4000PH User Manual

52
APT4000PH
Configuration
Limit function
Relay 1
Contact function
Contact response
Enter switching point
Enter hysteresis
Delay
Relay 2 menu group
Controller menu group
L1.
L2.
Ct.
Relay / Controller
rL.
Code
Display
Menu group
Select menu item
End:
Press CONF, then ENTER
53
LiMIT
(CtROL)
Code
Display
Action
Choices
rL.
Use of relays:
• Limit function (LiMIT)
• Controller (CtROL)
Select with key,
proceed with ENTER
Note: Selecting CtROL leads to
Controller menu group Ct.
Lo
(Hi)
Limit 1 function , see Page 55.
Select with key,
proceed with ENTER
Limit 1 contact response
N/C: normally closed contact
N/O: normally open contact
Select with key,
proceed with ENTER
N/O
(N/C)
Limit 1 switching point
Select with key, edit number with
key, proceed with ENTER
00.00 pH
(
XX.XX pH
XXXX mV)
Limit 1 hysteresis
Select with key, edit number with
key, proceed with ENTER
00.50 pH
(
XX.XX pH
XXXX mV)
Limit 1 delay
The contact is activated with
delay (deactivated without delay)
Select with key, edit number with
key, proceed with ENTER
0010 SEC
(
0 to
9999 SEC)
L1.
