APT4000PH
Package contents
Check the shipment for transport damage and completeness.
The package should contain:
• Front unit of APT4000PH
• Lower case
• Bag containing small parts
• Instruction manual
• Specific test report
Assembly
11
10
9
8
76 5
4
1
2
3
6 Sealing inserts (1 piece)
7 Rubber reducer (1 piece)
8 Cable glands (3 pieces)
9 Filler plugs (3 pieces)
10 Hexagon nuts (5 pieces)
11 Sealing plugs (2 pieces),
for sealing in case of wall mounting
1 Jumper (2 pieces)
2 Washer (1 piece),
for conduit mounting: Place washer
between enclosure and nut
3 Cable ties (3 pieces)
4 Hinge pin (1 piece),
insertable from either side
5 Enclosure screws (4 pieces)

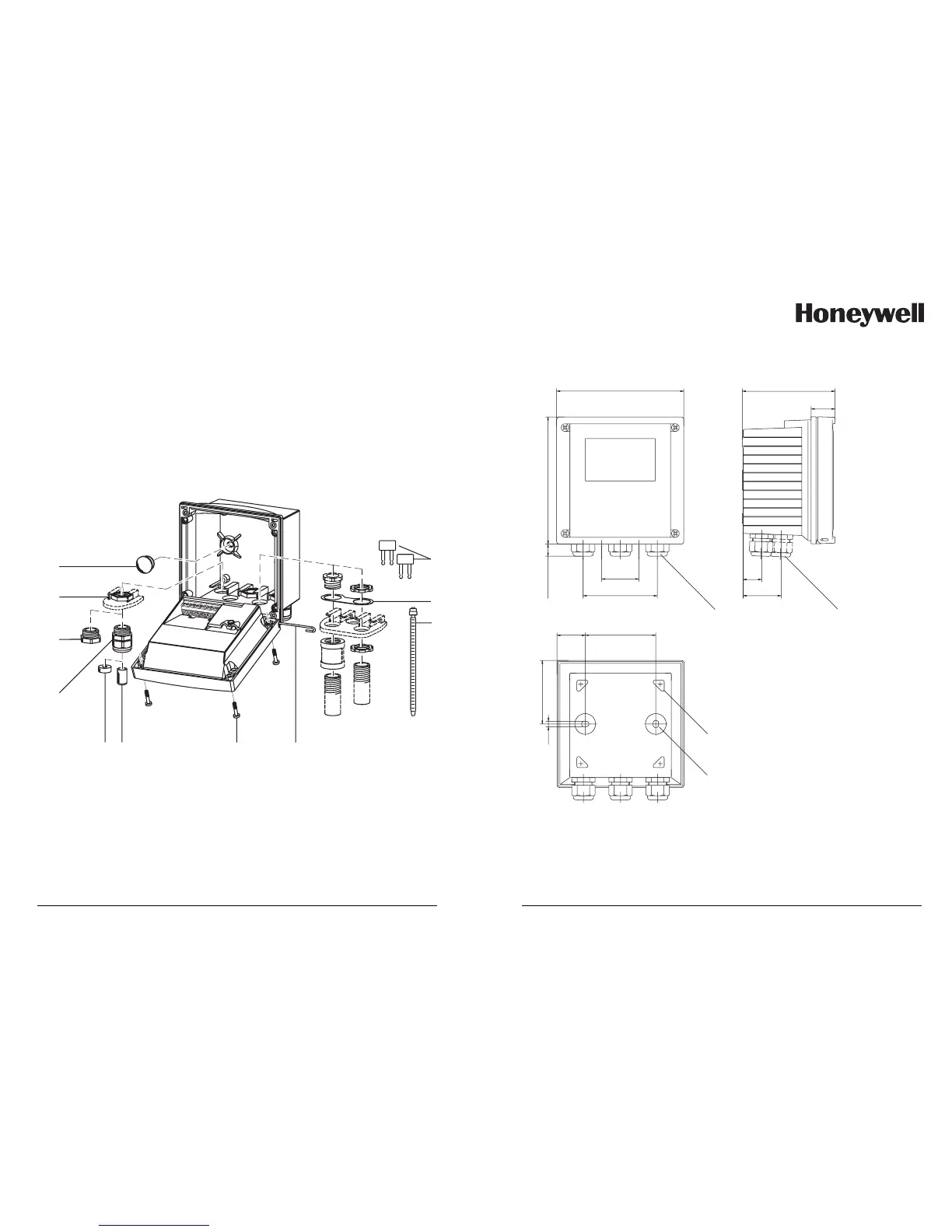

Fig. 1: Assembling the enclosure
9
Mounting plan
144
144
15
42
84
80
32
21
43
105
27
72
6,2
12
3
4
1 Cable gland (3 pieces)
2 Breakthroughs for cable gland
or conduit 1/2”,
dia 21.5 mm (2 breakthroughs)
Conduits not included!
3 Breakthroughs for pipe mounting
(4 breakthroughs)
4 Breakthroughs for wall mounting
(2 breakthroughs)
Fig. 2: Mounting plan
All dimensions in mm.
