APT4000PH
Parameter set 1/2

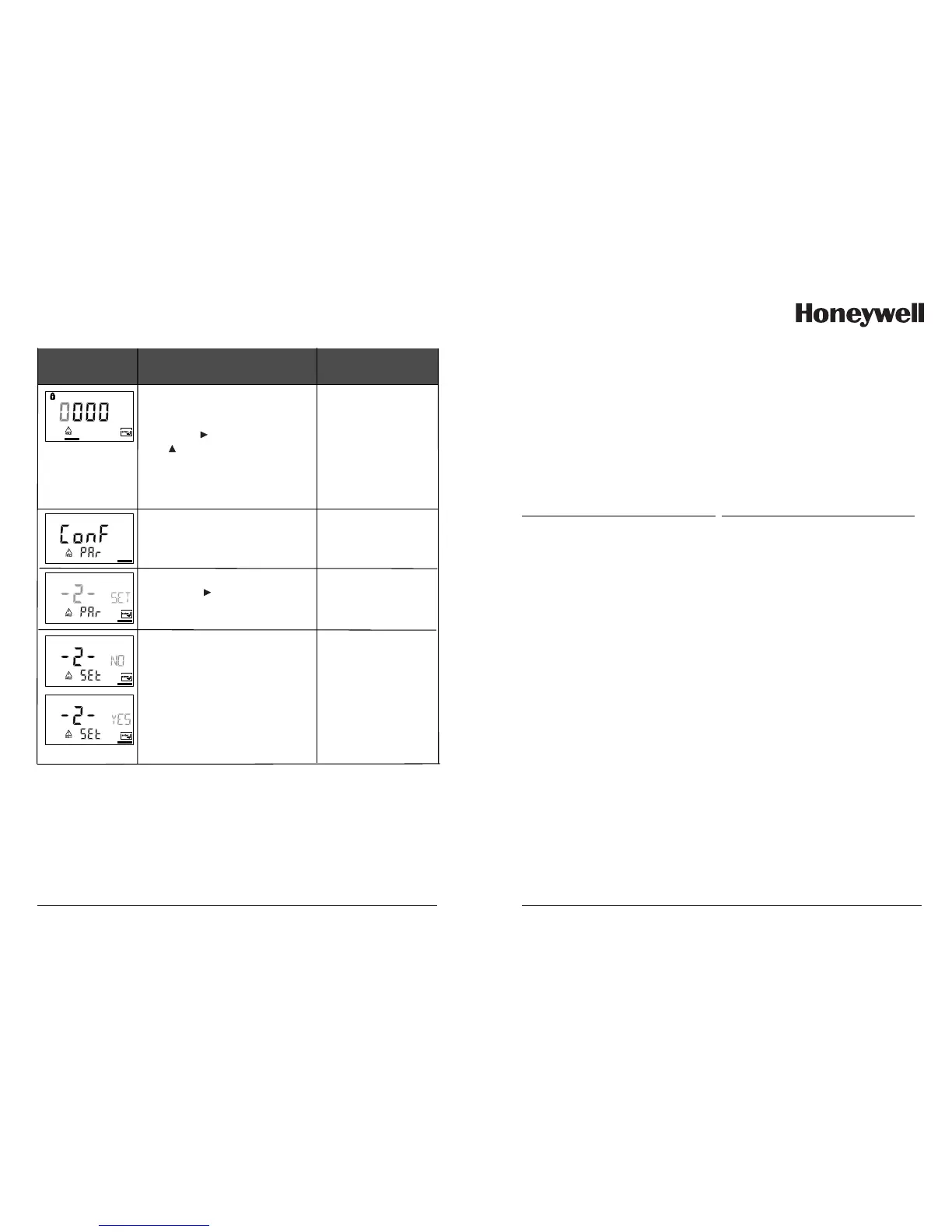

Display
Action Remark
Select parameter set 1 or 2.
Select with key,
proceed with ENTER
Switch between parameter sets
Press CONF key,
ENTER code 7654
Select with key, edit number
with key, proceed with ENTER
Wrong settings change
the measurement
properties!
If an invalid code is
entered, the
APT4000PH returns to
measuring mode.
Welcome display
(ConF) appears
for approx. 3 sec
Since the complete device config-
uration is changed in one step,
there is a security prompt
(No/Yes). When pressing ENTER
directly, the selection is not
stored.
61
Two complete parameter sets are stored in the EEPROM.
As delivered, the two sets are identical but can be edited.
Note:
Fill in your configuration data on the following pages.
Code. Parameter Default setting
o1. pH/ORP unit pH
o1. Electrode type FEt
o1. 0/4-20 mA 4-20 mA
o1. Current beginning 00.00 pH
o1. Current end 14.00 pH
o1. Filter time 0 sec
o1. 22mA signal OFF
o1. Hold behavior LAST
o1. Fix current 021.0 mA
o2. Unit °C / °F °C
o2. Temp probe 8.55 NTC
o2. 0/4...20mA 4-20 mA
o2. Current beginning 000.0 °C
o2. Current end 100.0 °C
o2. Filter time 0 sec
o2. 22mA signal OFF
o2. Hold behavior LAST
o2. Fix current 021.0 mA
tc. TC measurement Auto
tc. Measuring temp 025.0 °C
tc. TC calibration Auto
tc. Calibration temp 025.0 °C
tc. TC medium 00.00 %/K
CA. Cal solution -04-BUF
CA. Cal interval 0000 h
AL. Sensocheck OFF
AL. Alarm delay 0010 sec
AL. LED Hold off
Code. Parameter Default setting
rL. Relay function Limit
L1. Contact function Lo
L1. Contact response N/O
L1. Switching point 00.00 pH
L1. Hysteresis 00.50 pH
L1. Delay 0010 sec
L2. Contact function Hi
L2. Contact response N/O
L2. Switching point 14.00 pH
L2. Hysteresis 00.50 pH
L2. Delay 0010 sec
Ct. Setpoint 07.00 pH
Ct. Neutral zone 01.00 pH
Ct. P action 0100 %
Ct. I action 0000 sec
Ct. D action 0000 sec
Ct. PLC/PFC controller PLC
Ct. Pulse length 0010 sec
Ct. Pulse frequency 0060 /min
Ct. Hold behavior LAST
Pb. EasyCLN/Rinse Rinse
Pb. Rinsing interval 000.0 h
Pb. Rinse duration 0060 sec
Pb. Contact type N/O
Pb. Cleaning interval 000.0 h
Pb. Calibration interval 000.0 h
Pb. Lock interval Off
Default settings of parameter sets
To Next Page
