Honeywell APT4000PH User Manual

6
APT4000PH
Intended use
The APT4000PH is used for pH/mV, ORP, and temperature
measurement in industry, environment, food processing and
sewage treatment.
The rugged molded enclosure can be fixed into a control panel
or mounted on a wall or at a post. The protective hood provides
additional protection against direct weather exposure and
mechanical damage.
The analyzer can be easily replaced and it accepts commercially
available electrodes with a nominal zero point at pH 7 and
DURAFET II electrodes.
Trademarks
The following names are registered trademarks. For practical
reasons they are shown without trademark symbol in this
manual.
DURAFET
®
, MEREDIAN
®
are registered trademarks of
Honeywell Inc., USA
EasyClean
®
is a registered trademark of Mettler Toledo GmbH,
Switzerland.
Sensocheck
®
Sensoface
®
Calimatic
®
GainCheck
®
are registered trademarks of Knick GmbH & Co. KG, Germany.
7

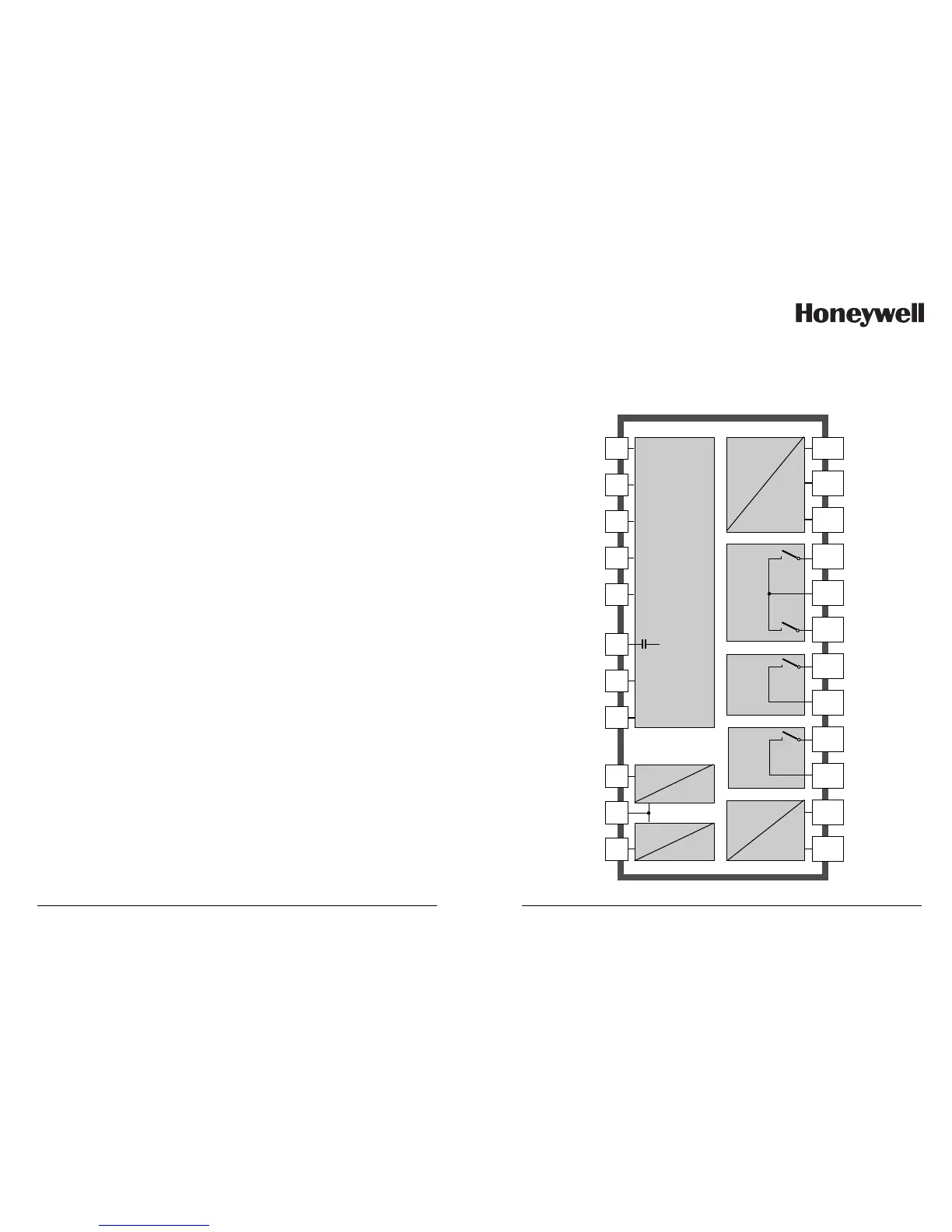

Overview of APT4000PH
1
2
3
E
D
C
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
pH / mV /
temp
input
Hold
input
Control
input
Output 1
Output 2
Alarm
Wash
Power
Glass
electrode
Reference
electrode
Auxiliary
electrode
RTD
RTD
Shield
+ DURAFET II
– DURAFET II
Hold
Hold/
CONTROL
CONTROL
+ Output 1
- Output 1/2
+ Output 2
Relay 1
Relay 1/2
Relay 2
Alarm
Alarm
Wash
Wash
Power
Power
R1
R2
Power supply
for
DURAFET II
electrode
