Honeywell Solaris 7980g User Manual

Solaris 7980g User Guide 43

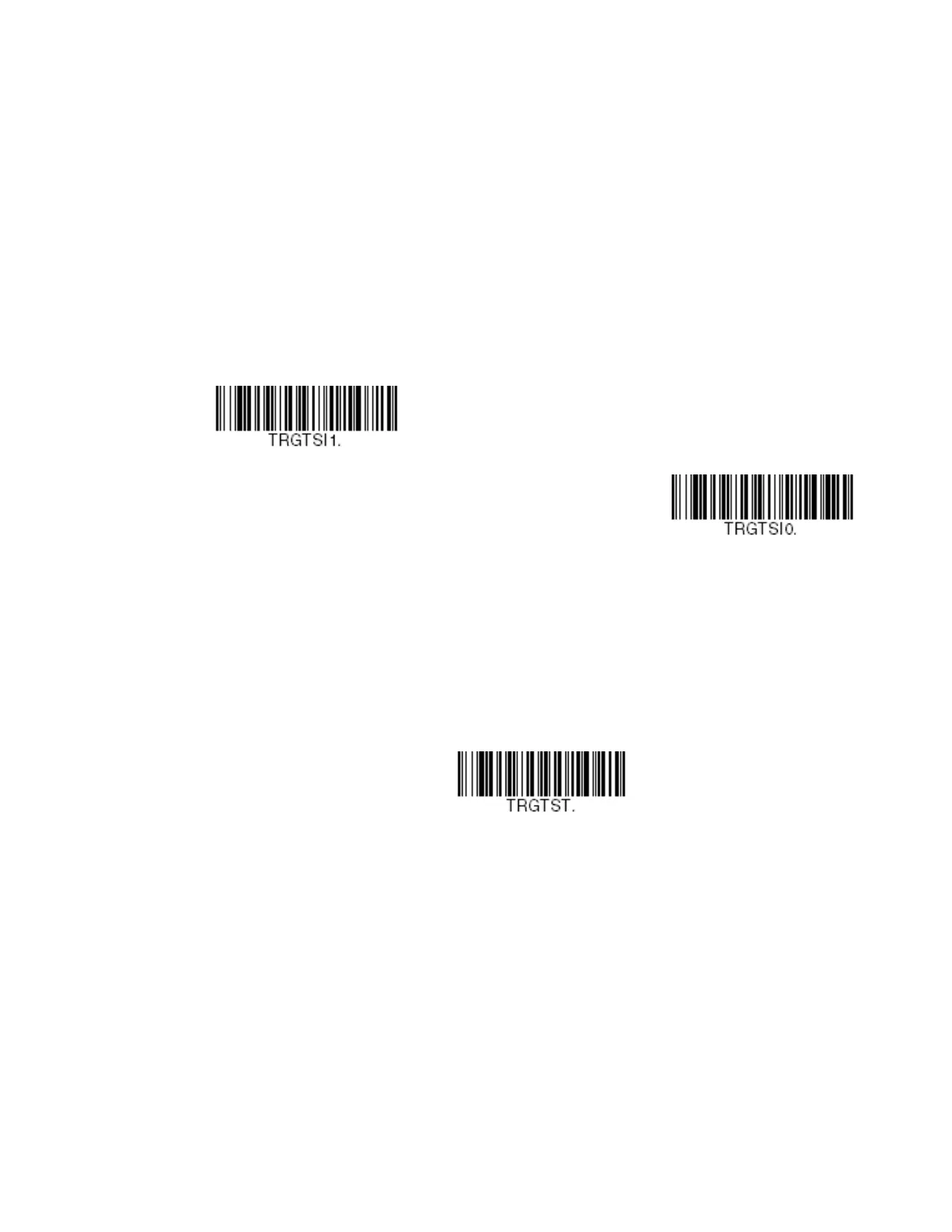

Presentation Sleep Mode
When Presentation Sleep Mode On is selected, the scanner goes into sleep mode
(illumination is off and the LED will slowly blink on and off) after the time interval
set using Presentation Sleep Mode Timeout, during which there is not activity. The
scanner will wake when an object is presented to the window or the pitch or volume
button is pressed. Default = Presentation Sleep Mode On.
Note: In some conditions the scanner will switch between Presentation Idle Mode and
Presentation Sleep Mode according to ambient light level. This allows the scanner to
wake up in very dark conditions.
Note: This selection is unavailable when the Illumination Lights or LED Illumination -
Presentation Mode are set to off.
Presentation Sleep Mode Timeout
Use this selection to set a timeout (in seconds) for the scanner when using
Presentation Sleep Mode. When this time has elapses with no activity, the scanner
will enter the Presentation Sleep Mode timeout selected. After scanning the Pre-
sentation Sleep Mode Timeout bar code, set the timeout duration (from 0-
3600000) by scanning digits on the Programming Chart, then scanning Save.
Default = 300000 (300s).
* On
Off
Presentation Sleep Mode
Timeout

Honeywell Solaris 7980g Specifications

General

Input voltage	100 - 240 V
Input frequency	50 - 60 Hz
Power consumption	400 mA
Power source type	AC
AC adapter output voltage	5 - 5.2 V
USB version	2.0
Standard interfaces	Keyboard wedge, RS-232, USB
USB 2.0 ports quantity	1
Connectivity technology	Wired
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	5 - 95 %
Certification	CE, RoHS
Product color	Black
LED indicators	Status
Housing material	-
Programming function	Yes
International Protection (IP) code	IPX5
Sustainability certificates	RoHS
Type	Fixed bar code reader
Scanner type	1D/2D
Maximum scan area	0 x 190 mm
Yaw reading angle	-75 - 75 °
Pitch reading angle	-65 - 65 °
Light levels (direct sunlight)	0 - 100000 lx
Linear (1D) barcodes supported	Codabar, Code 11, Code 128, Code 32, Code 39, Code 93, EAN-13, EAN-8, Intelligent Mail, JAN, MSI, PLANET, POSTNET, Plessey, Telepen, Trioptic, U.P.C.
2D (matrix & stacked) barcodes supported	Aztec Code, Codablock, Code 49, Data Matrix, Han Xin, MaxiCode, Micro QR Code, PDF417, QR Code
Harmonized System (HS) code	84716070

Weight and Dimensions

Depth	85 mm
Width	152 mm
Height	148 mm
Weight	539 g
