HP 8590 L-Series User Manual

Procedure to Change the Memory Card Battery
The battery is located beside the card’s write-protect switch on the end opposite the connector.
Caution
The battery power enables the memory card’s memory to retain data. You can
lose the data when the battery is removed. Replace the battery while the card
is installed in a powered-up instrument.
1. Locate the groove along the edge of the battery clip. See Figure 2-9.
2. Gently pry the battery clip out of the card. The battery fits within this clip.
3. Replace the battery, making sure the plus (+) sign on the battery is on the same side as the
plus ( + ) sign on the clip.
HP Part Number: 1420-0383 or commercial Lithium CMOS type part number CR 2016.
.
I!!!!
DO NOT THROW BATTERIES AWAY BUT
COLLECT AS SMALL CHEMICAL WASTE.
0
sk78Oa
4. Insert the battery clip into the memory card, holding the clip as oriented in Figure 2-9.
(Face the “open” edge of the clip toward the write-protect switch on the memory card.)
5. Write the date that the battery was replaced on the memory card label. This will help you
to remember when the battery should be replaced.
.
=
INSERTION END
m
HEWLETT
PACKAPD
a5700A
,?K BYTE HAM
WPITE PRCJTECT 5WlTCH
BATTERY SLOT
GPOOVE BATTEP I’ ii P

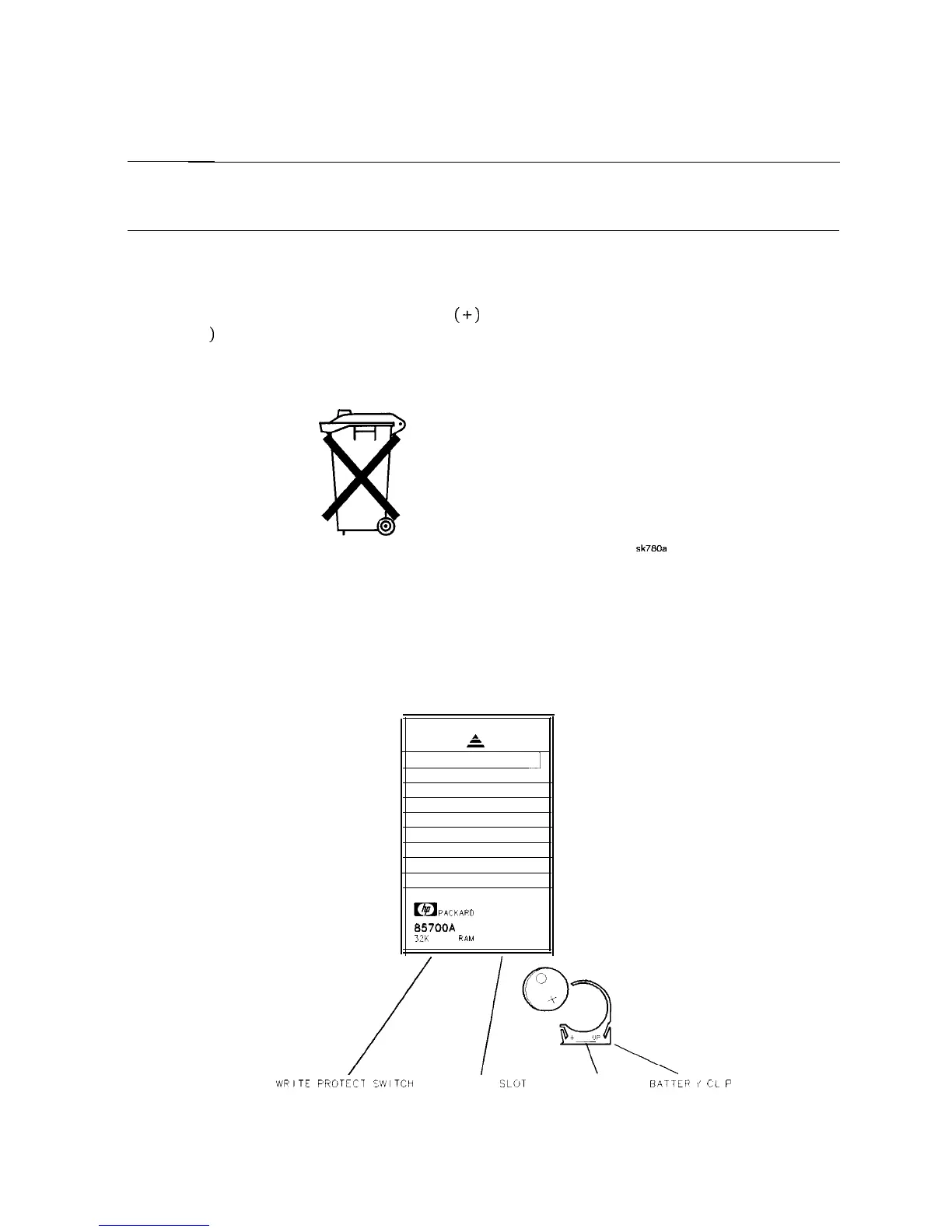

Figure 2-9. Memory Card Battery Replacement
Getting Started 2-21
