6–22 376220-001 Service Reference Guide, dc5100
Removal and Replacement Procedures— Microtower (MT) Chassis
6.12 Front I/O Devices
1. Prepare the computer for disassembly (Section 6.1, “Preparation for Disassembly”).
2. Remove the access panel and rotate the computer so the system board is parallel to the table
to make it easier to work on (
Section 6.3, “Access Panel”).
3. Remove the front I/O panel assembly (Section 6.11, “Front I/O Panel Housing Assembly”).

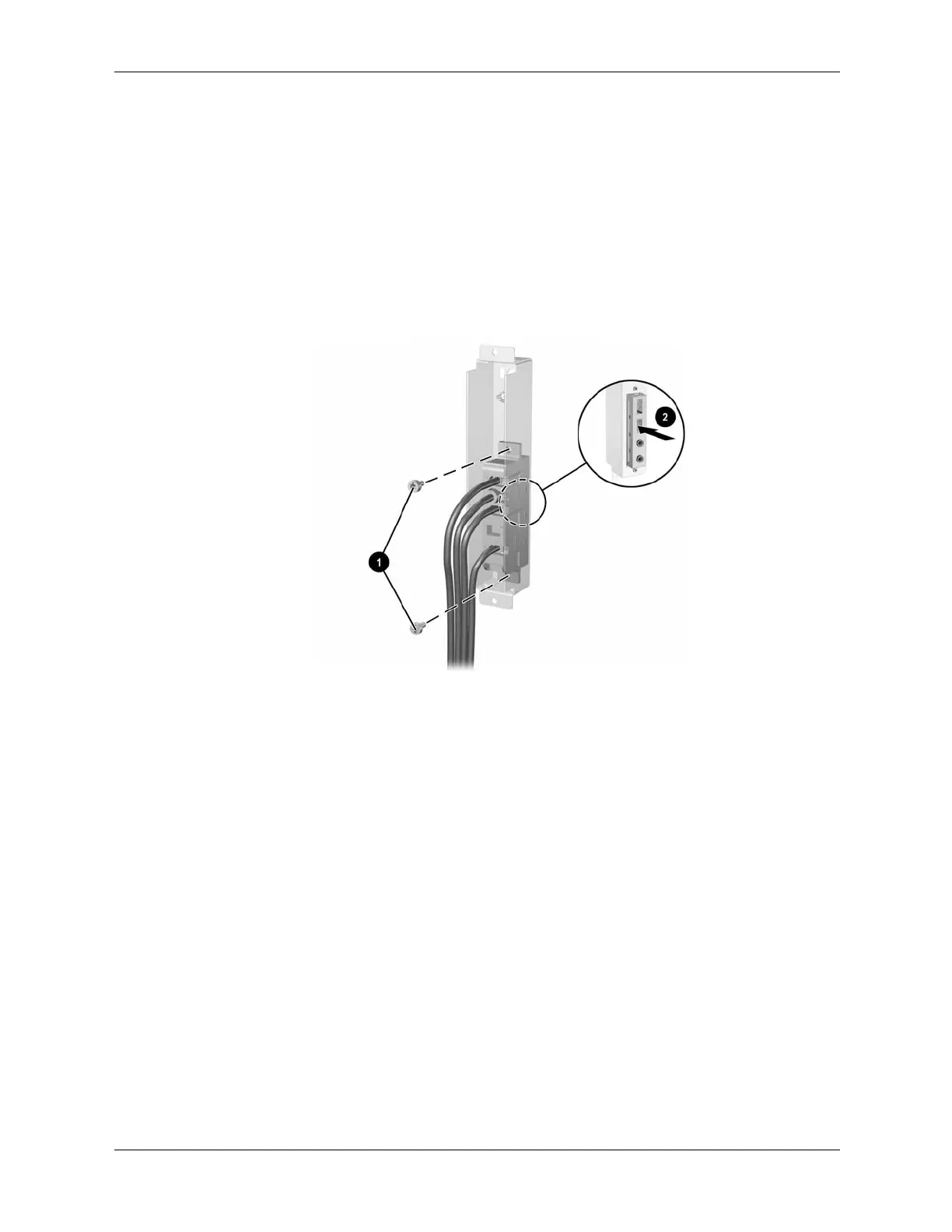

4. Remove the two screws 1 that hold the USB and audio port assembly in place.
5. Remove the I/O device assembly from the I/O panel 2 by pushing it out of the housing.
To install the I/O devices, reverse the removal procedures and then reinstall the housing
assembly.
