Service Reference Guide, dc5100 376220-001 7–5
Removal and Replacement Procedures— Small Form Factor (SFF) Chassis

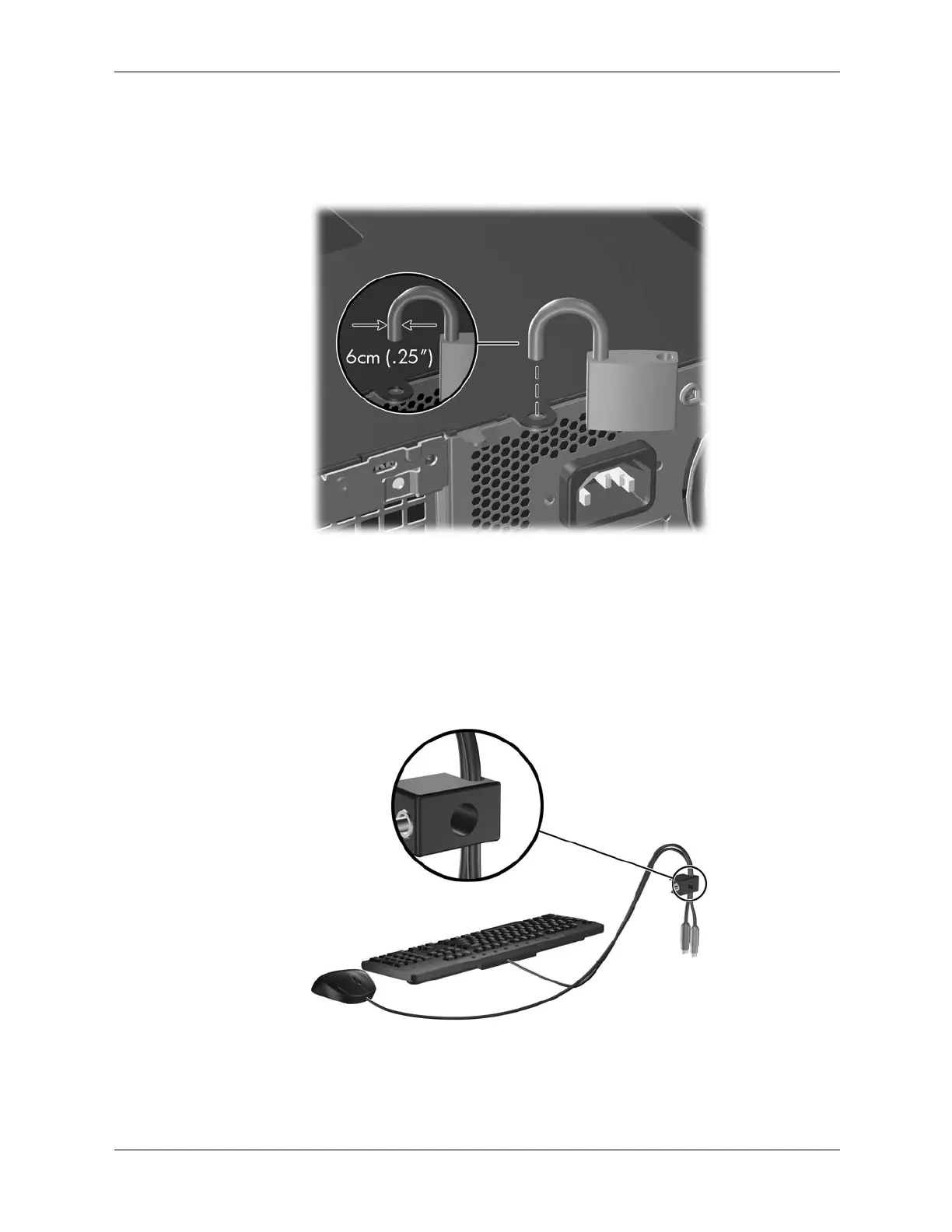

7.3.3 Pa dl oc k
A padlock may be used by itself to secure the computer cover to the computer chassis. A padlock
may also be used with a security cable to secure the computer to a fixed object.
I
7.3.4 Universal Chassis Clamp Lock
Without Security Cable
1. Thread the keyboard and mouse cables through the lock.
