Service Reference Guide, dc5100 376220-001 6–9
Removal and Replacement Procedures— Microtower (MT) Chassis
6.7 Expansion Cards
6.7.1 Expansion Slot Cover
1. Prepare the computer for disassembly (Section 6.1, “Preparation for Disassembly”).
2. Remove the access panel and rotate the computer so the system board is parallel to the table
to make it easier to work on (
Section 6.3, “Access Panel”).

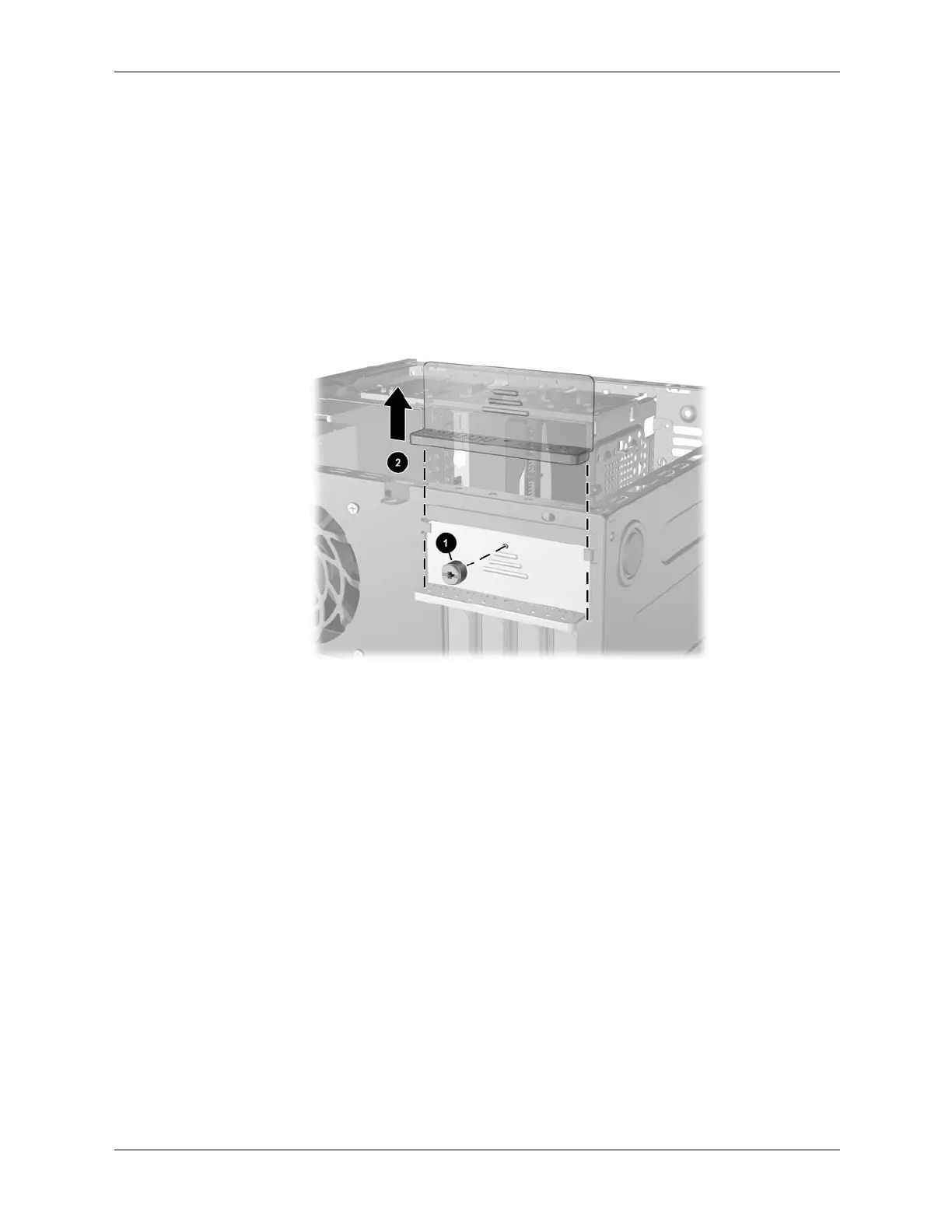

3. On the rear of the computer, remove the retaining screw 1 then, slide the slot cover lock up
2 to access the expansion slot covers.
For instructions on standard PCI expansion cards, see Section 6.7.2, “PCI Expansion Card.” or
6.7.3, “PCI Express Expansion Card.”
