6–6 376220-001 Service Reference Guide, dc5100
Removal and Replacement Procedures— Microtower (MT) Chassis
6.5 Front Drive Bezels
1. Prepare the computer for disassembly (Section 6.1, “Preparation for Disassembly”).
2. Remove the access panel (Section 6.3, “Access Panel”).
3. Remove the front bezel (Section 6.4, “Front Bezel”).
6.5.1 5.25" Drive Bezel Blank

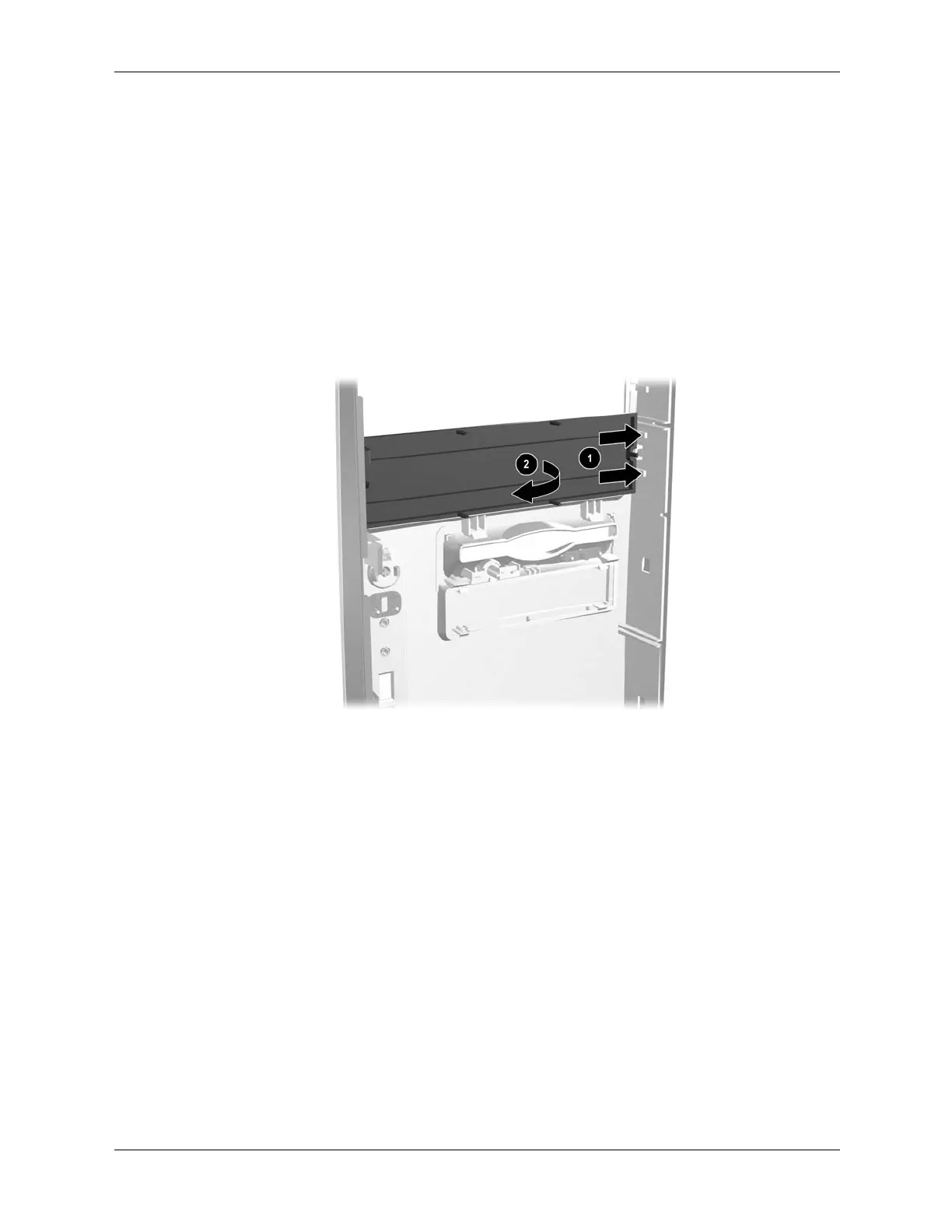

Press the two retaining tabs on the inside of the large bezel 1 towards the outside of the bezel to
release the bezel blank. At the same time, pull the bezel blank in 2 to remove it from the front
bezel.
To install a bezel blank, reverse the removal procedure.
