7–10 376220-001 Service Reference Guide, dc5100
Removal and Replacement Procedures— Small Form Factor (SFF) Chassis
7.4 Computer Cover
1. Prepare the computer for disassembly (Section 7.1, “Preparation for Disassembly”).
Ä
CAUTION: Before removing the computer cover, ensure that the computer is turned off and that the
power cord is disconnected from the electrical outlet.

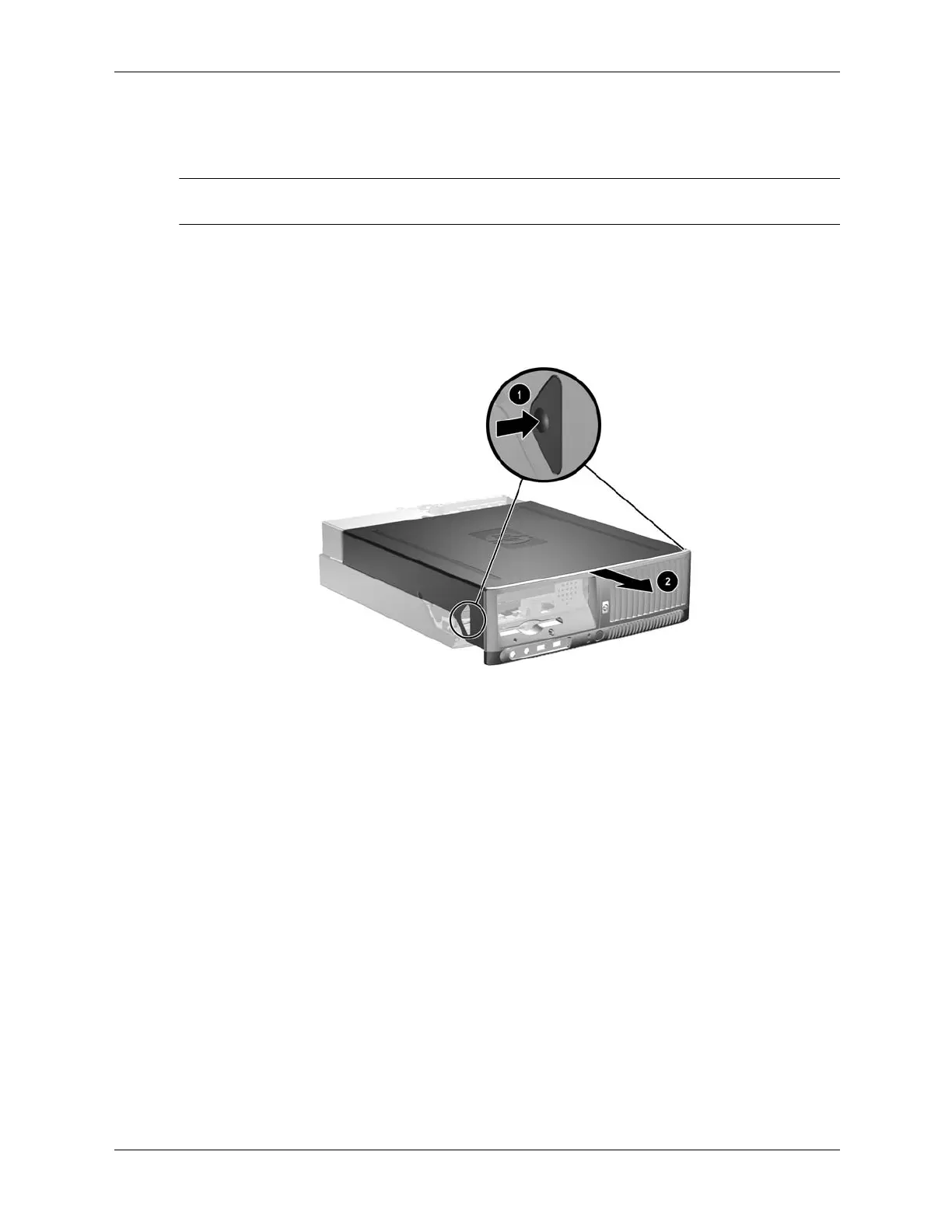

1. Press the buttons on the left and right sides of the computer 1.
2. Slide the computer cover towards the front of the computer until it stops 2 then, lift it up and
off the chassis.
To install the computer cover, reverse the removal procedure.
