Service Reference Guide, dc5100 376220-001 7–41
Removal and Replacement Procedures— Small Form Factor (SFF) Chassis
7.17 System Board
1. Prepare the computer for disassembly (Section 7.1, “Preparation for Disassembly”).
2. Remove the computer cover (Section 7.4, “Computer Cover”).
3. Remove all PCI and PCI Express expansion boards (Section 7.8, “Expansion Card”).
4. Remove the fan shroud from the chassis (Section 7.9, “Drives”).

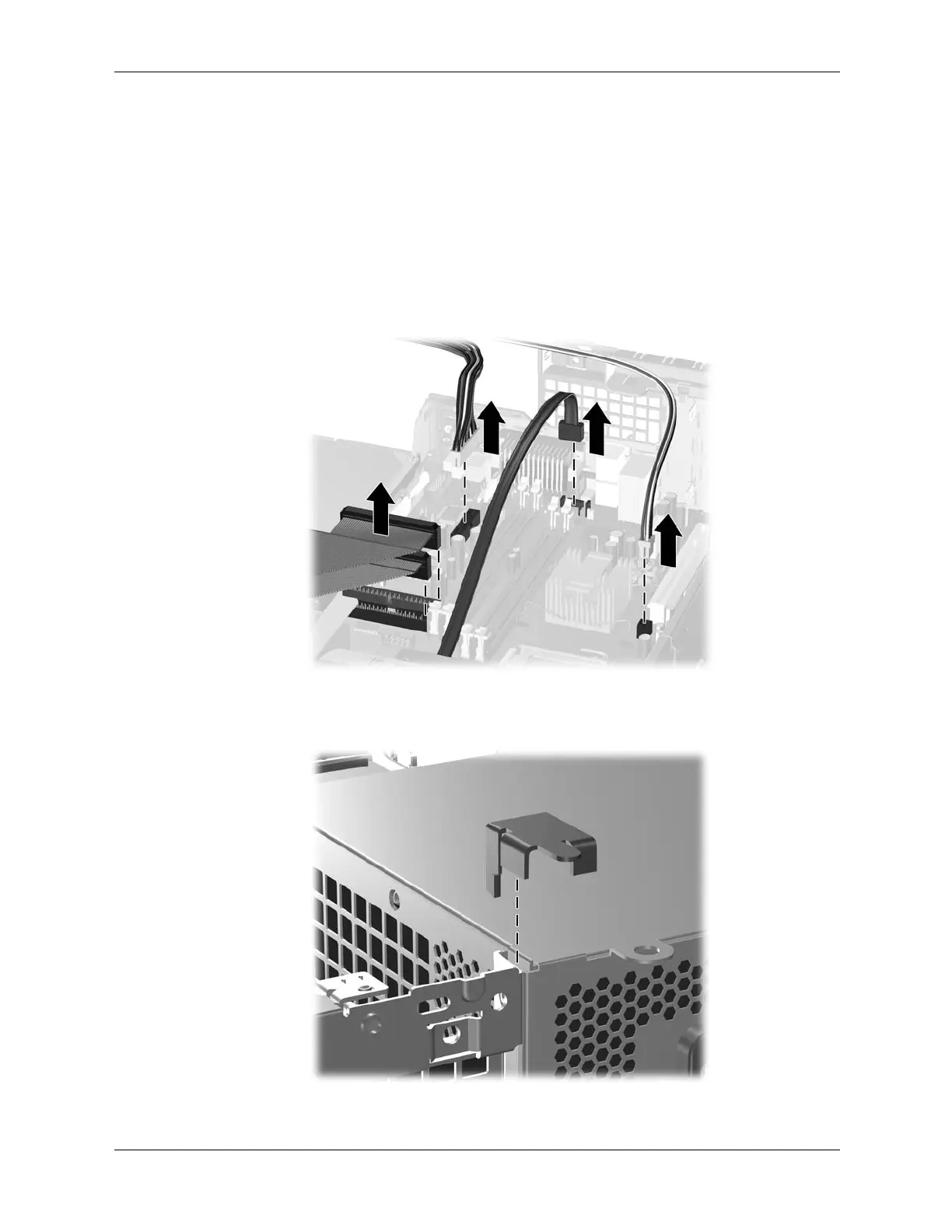

5. Slide the drive tray forward and disconnect the drive and power cables from the system
board.
6. Remove the security clip.
