Service Reference Guide, dc5100 376220-001 6–21
Removal and Replacement Procedures— Microtower (MT) Chassis
6.11 Front I/O Panel Housing Assembly
1. Prepare the computer for disassembly (Section 6.1, “Preparation for Disassembly”).
2. Remove the access panel and rotate the computer so the system board is parallel to the table
to make it easier to work on (
Section 6.3, “Access Panel”).
3. Disconnect three attaching cables from the system board: the power switch/LED cable, the
front USB cable, and the front audio cable.

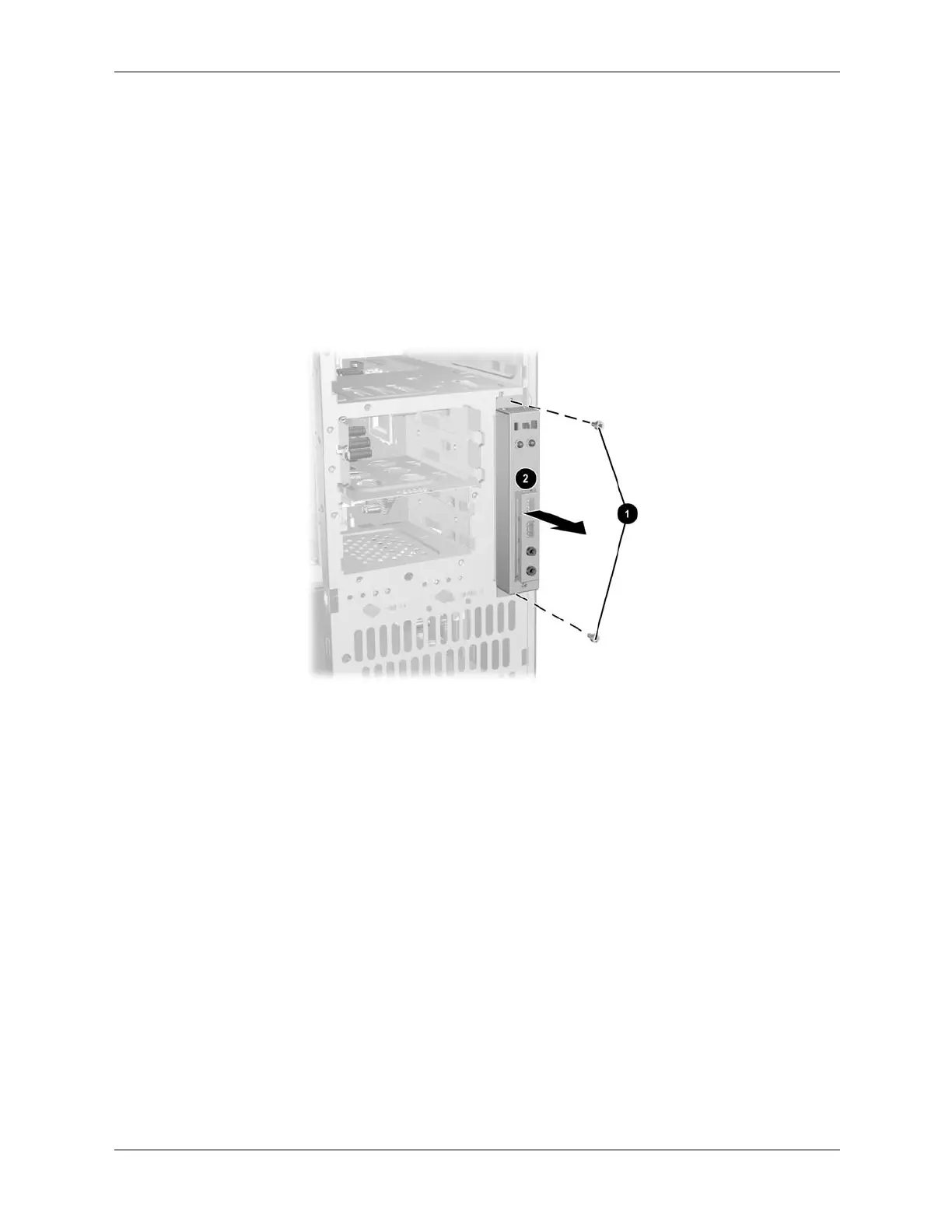

4. Remove the two screws 1 that secure the housing to the chassis and then pull the housing 2
away from the chassis.
To install the housing assembly, reverse the removal procedures.
