Horizontal cable insertion
Use at tool to pull connector evenly. Do not pull on cable to remove.
Slide connector into receptacle on same horizontal plane as board and use a at tool to push evenly into
receptacle.

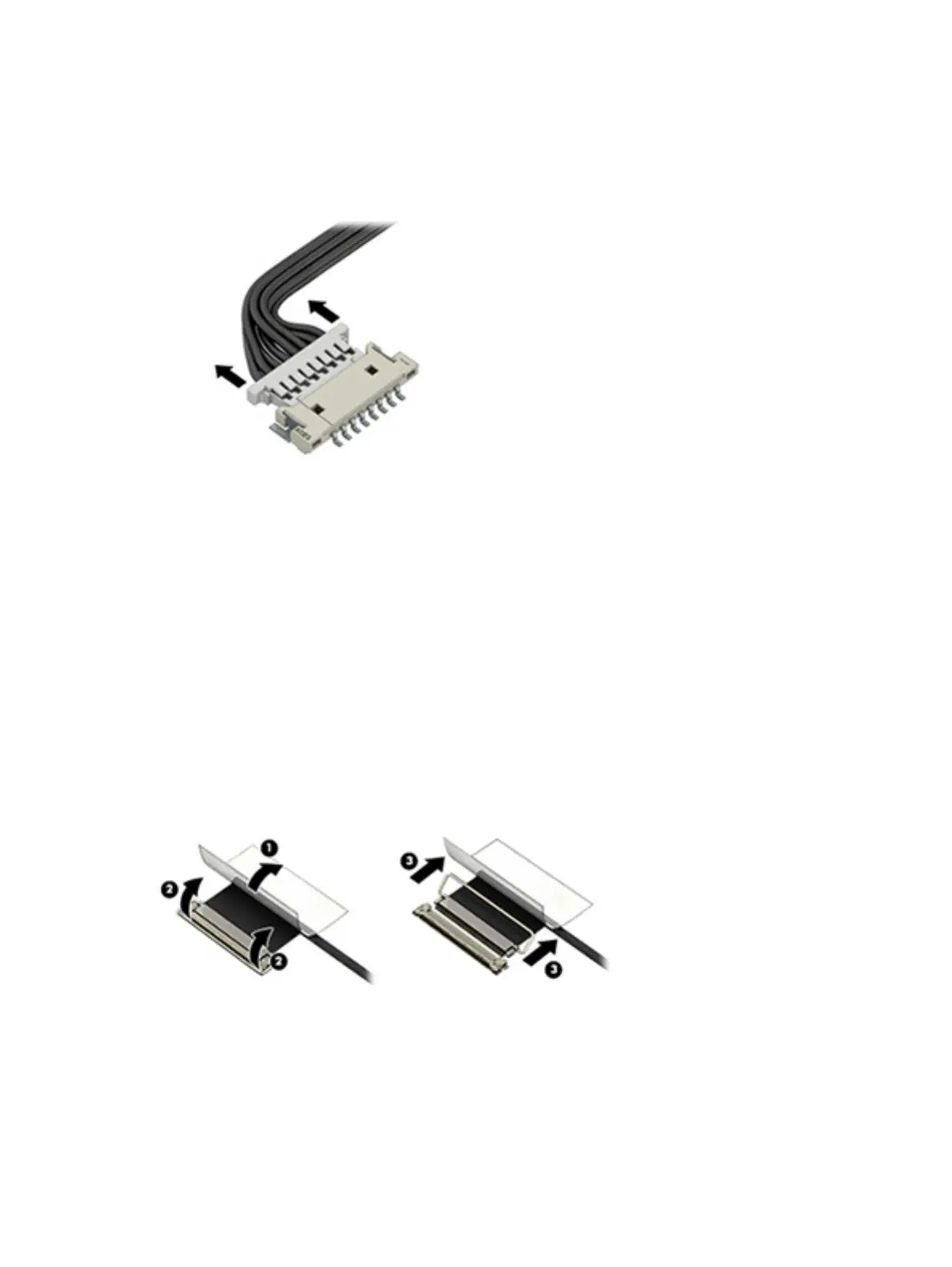

Multiple-pin horizontal connector (LVDS cable to display panel)
Use these procedures to properly insert and remove a multiple-pin horizontal connector.
Insert procedure:
1. Slide connector evenly into receptacle on same horizontal plane as PCB connector.
2. Pull lock bar to insert and push both side connector horizontally to rmly lock.
3. Tape down lock bar over the panel to hold in position.
Reverse the previous procedure to remove the connector:
1. Remove tape.
2. Pull up bar (pull tape) and release the lock with the PCB connector.
3. Pull to the direction in parallel with PCB to withdraw the connector.
Multiple-pin vertical connector (LVDS cable to system board)
Use this procedure to properly insert and remove a multiple-pin vertical connector.
● Remove the connector gasket before removing the connector.
138
Chapter 7 Troubleshooting guide
