Reverse this procedure to install the WWAN module.
POGO connector
To remove and disassemble the POGO connector, use these procedures and illustrations.
Table 6-7 POGO connector descriptions and part numbers
Description Spare part number
POGO connector and cable L67422-001
IMPORTANT: Be sure to use the correct size screwdriver to avoid stripping the screw.
Before removing the POGO connector and cable, follow these steps:
1. Prepare the computer for disassembly (see Preparation for disassembly on page 40).
2. Remove the display panel (see Display panel on page 42).
3. Remove the battery (see Battery on page 46).

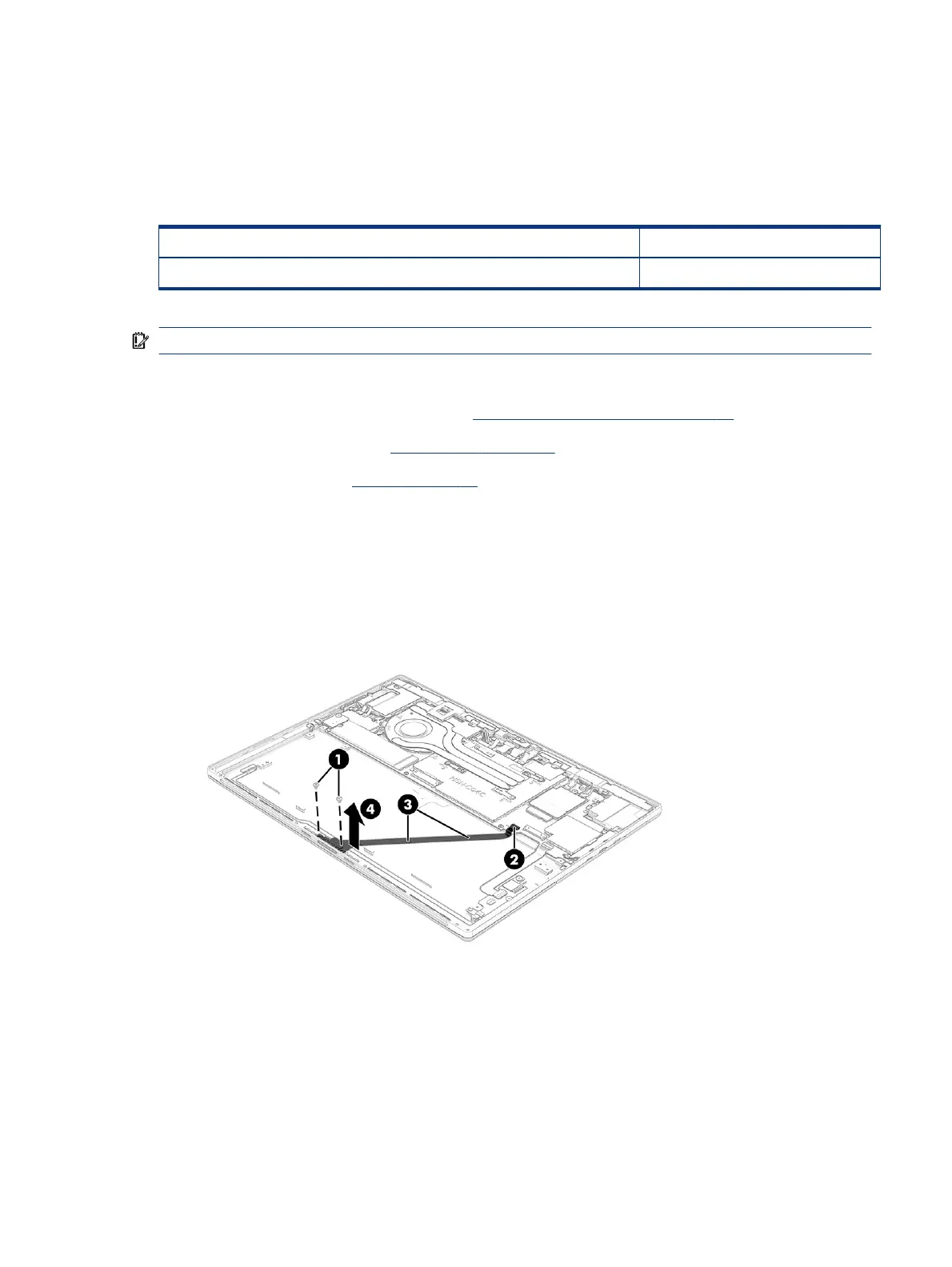

Remove the POGO connector and cable:
1. Disconnect the POGO cable from the ZIF connector on the system board (1).
2. Remove the two Phillips M1.4 × 2.5 screws (2).
3. Peel the cable up to disengage the adhesive that secures it to the computer (3), and then remove the
POGO connector from the computer (4).
Reverse this procedure to reassemble and replace the POGO connector.
Camera module
To remove the camera module, use these procedures and illustrations.
