Small Rear Cover
The small rear cover is located above the stand. You must remove it to remove the stand.
To remove the small rear cover:
1. Prepare the computer for disassembly (see
Preparing to Disassemble the Computer on page 28).
2. Position the computer with the rear facing you.
3. Pry the cover loose using the slot in the top of the cover (1), and then lift it off the computer (2).

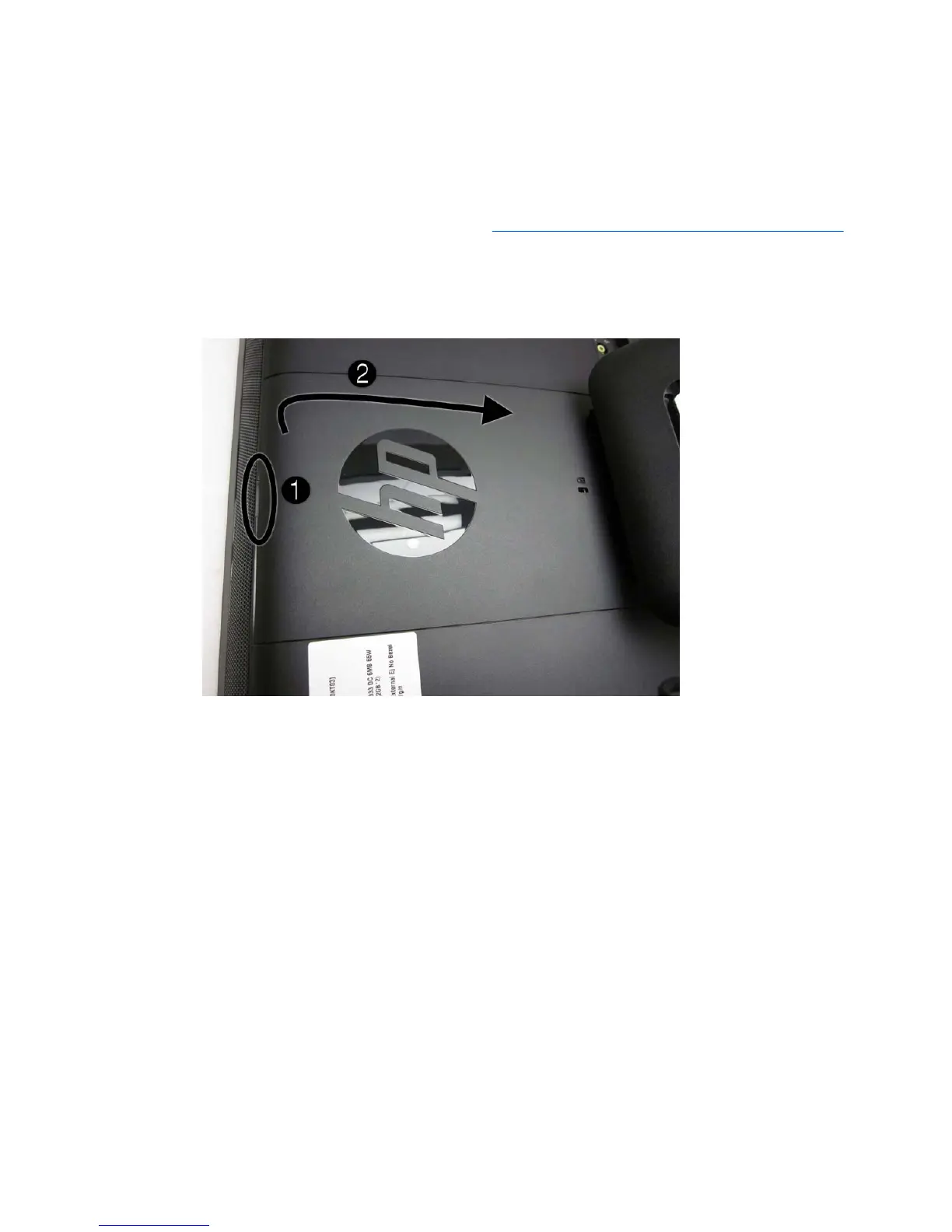

Figure 7-1 Removing the small rear cover
To replace the cover, reverse the removal procedures.
Small Rear Cover
29
