System Board Shield
The system board shield sits above the system board. It is secured with two screws.
To remove the system board shield:
1. Prepare the computer for disassembly (see
Preparing to Disassemble the Computer on page 28).
2. Remove the small rear cover (see
Small Rear Cover on page 29).
3. Remove the stand (see
Stand on page 30).
4.
Remove the right rear cover (see
Right Rear Cover on page 36).
5. Remove the heat sink (see
Heat Sink (Thermal Module) on page 39).
6.
Remove the rear cover (see
Rear Cover on page 47).
7. Remove the two screws (1) that secure the shield to the computer.
8. Rotate the shield from left to right to remove it from the computer (2).

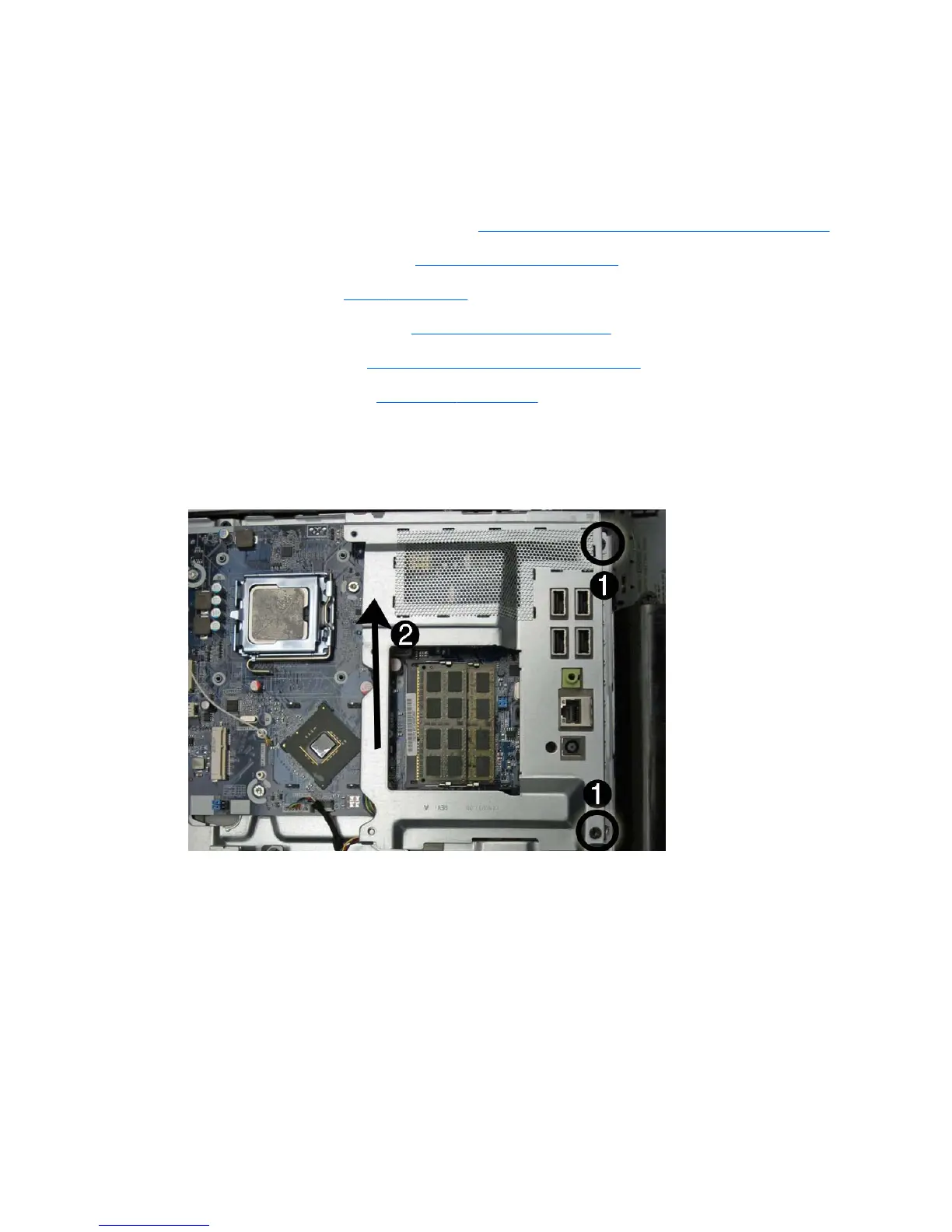

Figure 7-23 Removing the system board shield
To install the system board shield, reverse the removal procedures.
52 Chapter 7 Removal and Replacement Procedures All-in One (AIO) Chassis
