Optical Drive
Description Spare part number
8X DVD±RW SuperMulti DL Drive with LightScribe 597927-001
Optical drive bracket 651600-001
The optical drive is located under the left rear cover. It is secured with one screw.
To remove the optical drive:
1. Prepare the computer for disassembly (see
Preparing to Disassemble the Computer on page 28).
2. Position the computer with the rear facing you.
3. Remove the small rear cover (see
Small Rear Cover on page 29).
4.
Remove the stand (see
Stand on page 30).
5. Remove the left rear cover (see
Left Rear Cover on page 31).
6. Remove the screw (1) that secures the drive to the computer.
7. Insert a flat blade screwdriver into the slot and push (2) to disengage the drive, and then slide the
drive out of the computer (3).

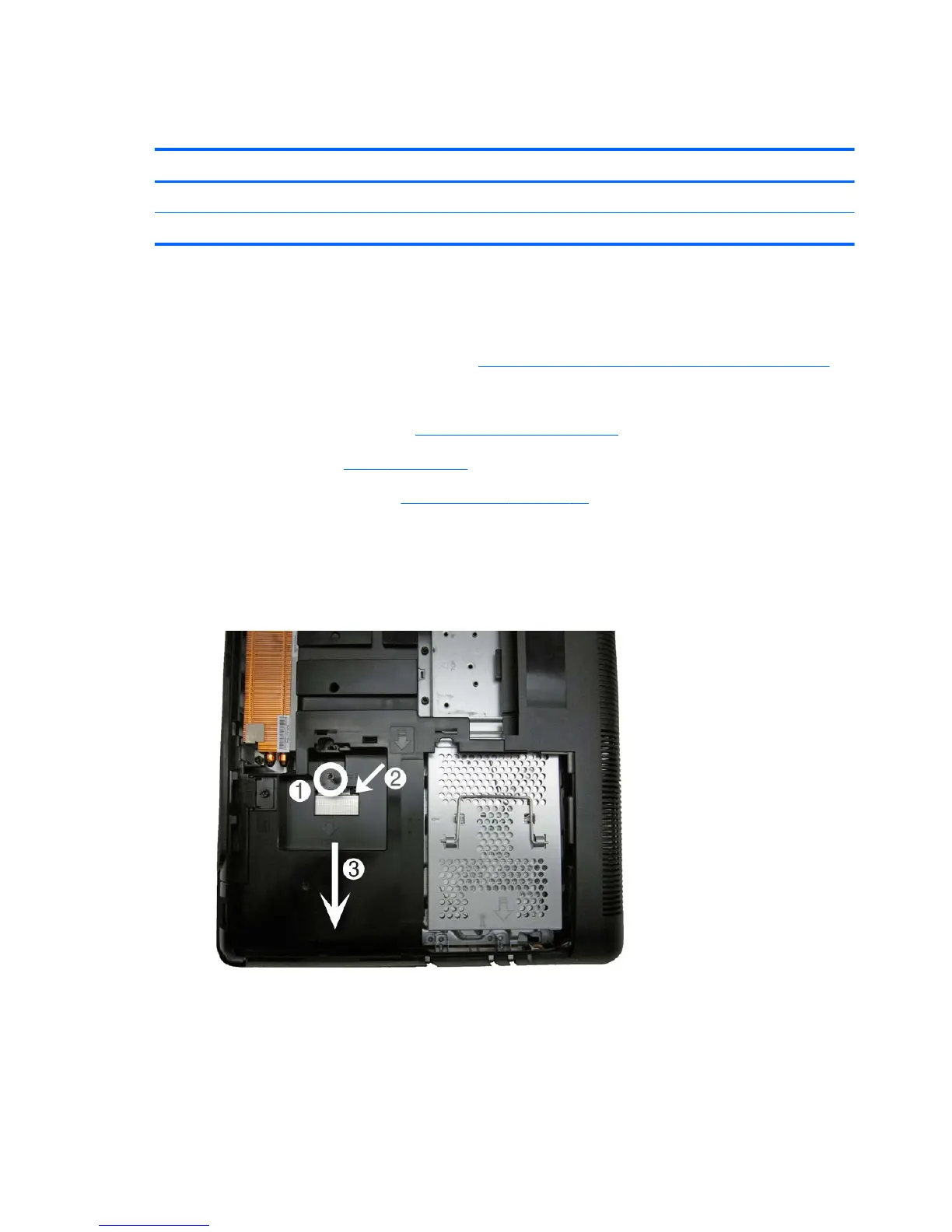

Figure 7-4 Removing the optical drive
32 Chapter 7 Removal and Replacement Procedures All-in One (AIO) Chassis
