Heat Sink (Thermal Module)
Description Spare part number
Heat sink (thermal module) 651607-001
The heat sink is secured with five screws and four clips. You have to remove the heat sink cover to
access the heat sink.
To remove the heat sink:
1. Prepare the computer for disassembly (see
Preparing to Disassemble the Computer on page 28).
2. Position the computer with the rear facing you.
3. Remove the small rear cover (see
Small Rear Cover on page 29).
4. Remove the stand (see
Stand on page 30).
5. Remove the right rear cover (see
Right Rear Cover on page 36).
6.
Remove the heat sink cover by removing the five screws that secure it to the computer (1), and
then lifting the cover off the computer (2).

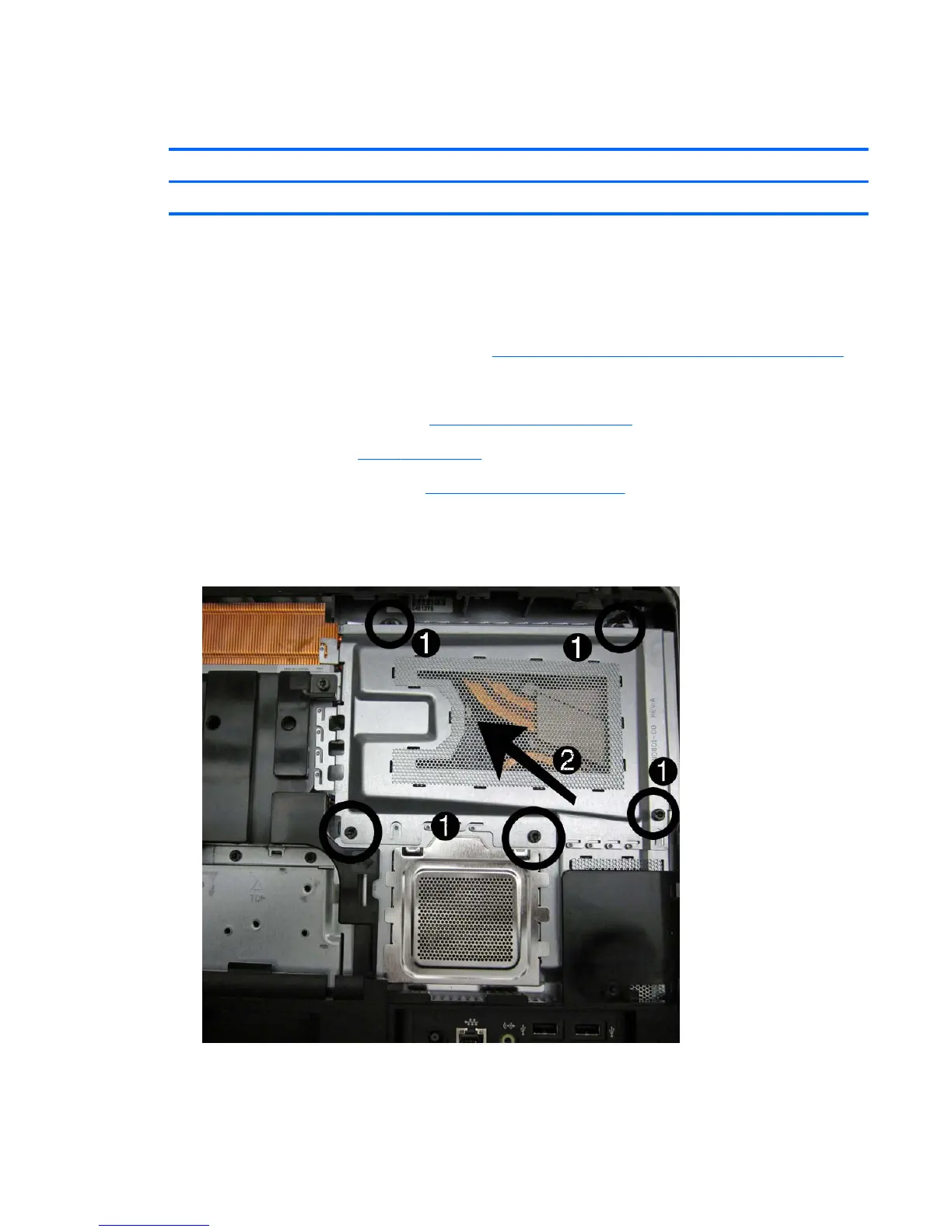

Figure 7-11 Removing the heat sink cover
Heat Sink (Thermal Module)
39
