Speakers
Description Spare part number
Speaker, right 651597-001
Speaker, left 651598-001
The speakers are located at the bottom of the computer. Two separate speakers are each secured by
two screws. The left speaker connects to the right speaker, and the right speaker connects to the system
board.
To remove the speakers:
1. Prepare the computer for disassembly (see
Preparing to Disassemble the Computer on page 28).
2.
Remove the small rear cover (see
Small Rear Cover on page 29).
3. Remove the stand (see
Stand on page 30).
4. Remove the right rear cover (see
Right Rear Cover on page 36).
5. Remove the heat sink (see
Heat Sink (Thermal Module) on page 39).
6. Remove the rear cover (see
Rear Cover on page 47).
7. Remove the system board shield (see
System Board Shield on page 52).
8. Remove two screws that secure each speaker to the computer.

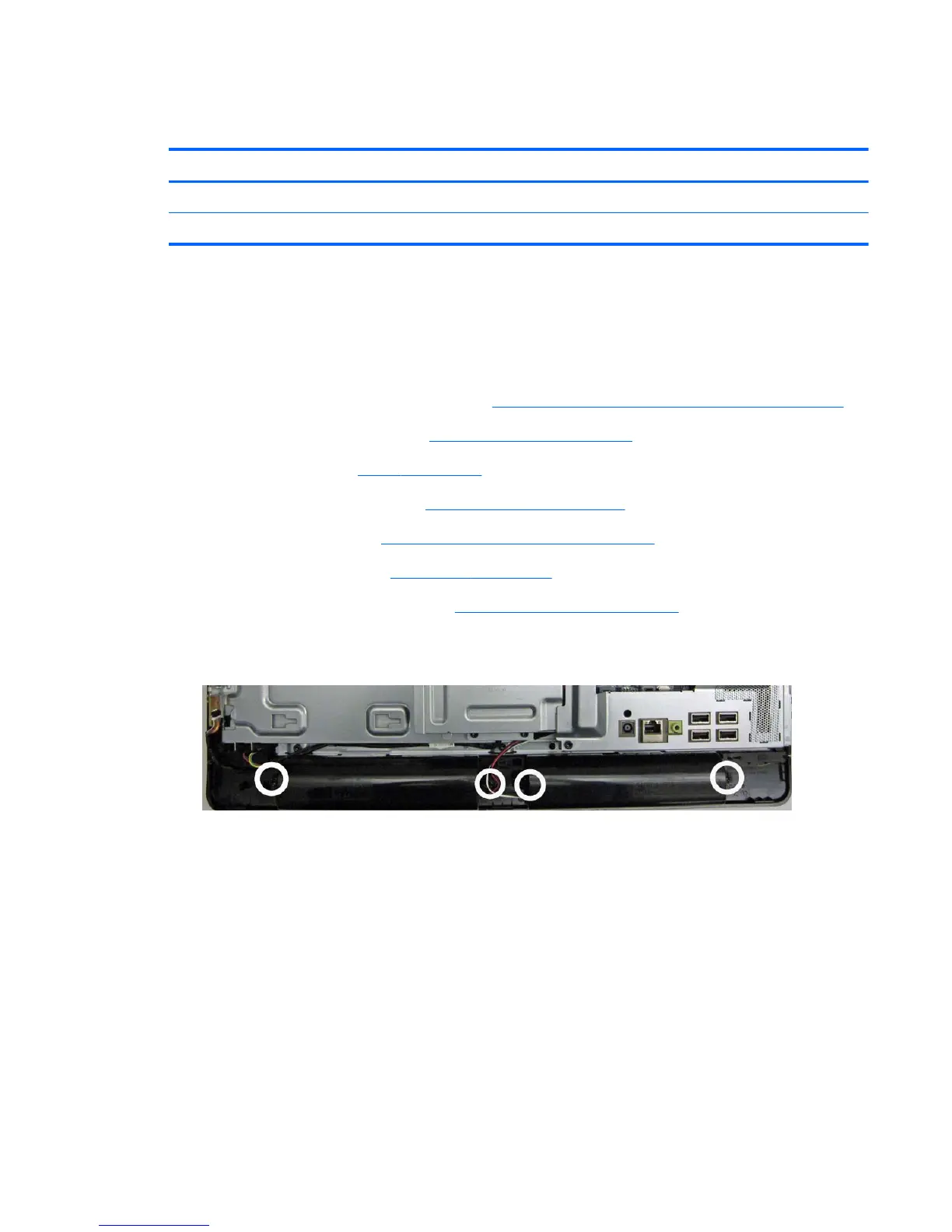

Figure 7-25 Removing the speakers
Speakers
55
