Webcam Module
Description Spare part number
Webcam module 651586-001
The webcam module is located at the top of the computer. It is located below an upper cover, is
secured with two screws, and has one connector.
To remove the webcam module:
1. Prepare the computer for disassembly (see
Preparing to Disassemble the Computer on page 28).
2. Position the computer with the top rear facing you.
3. Remove the small rear cover (see
Small Rear Cover on page 29).
4. Remove the stand (see
Stand on page 30).
5. Remove the right rear cover (see
Right Rear Cover on page 36).
6.
Remove the heat sink (see
Heat Sink (Thermal Module) on page 39).
7. To remove the upper cover that allows access to the webcam, remove the two screws (1) that
secure the cover to the computer, and then rotate the cover up and off the computer (2).

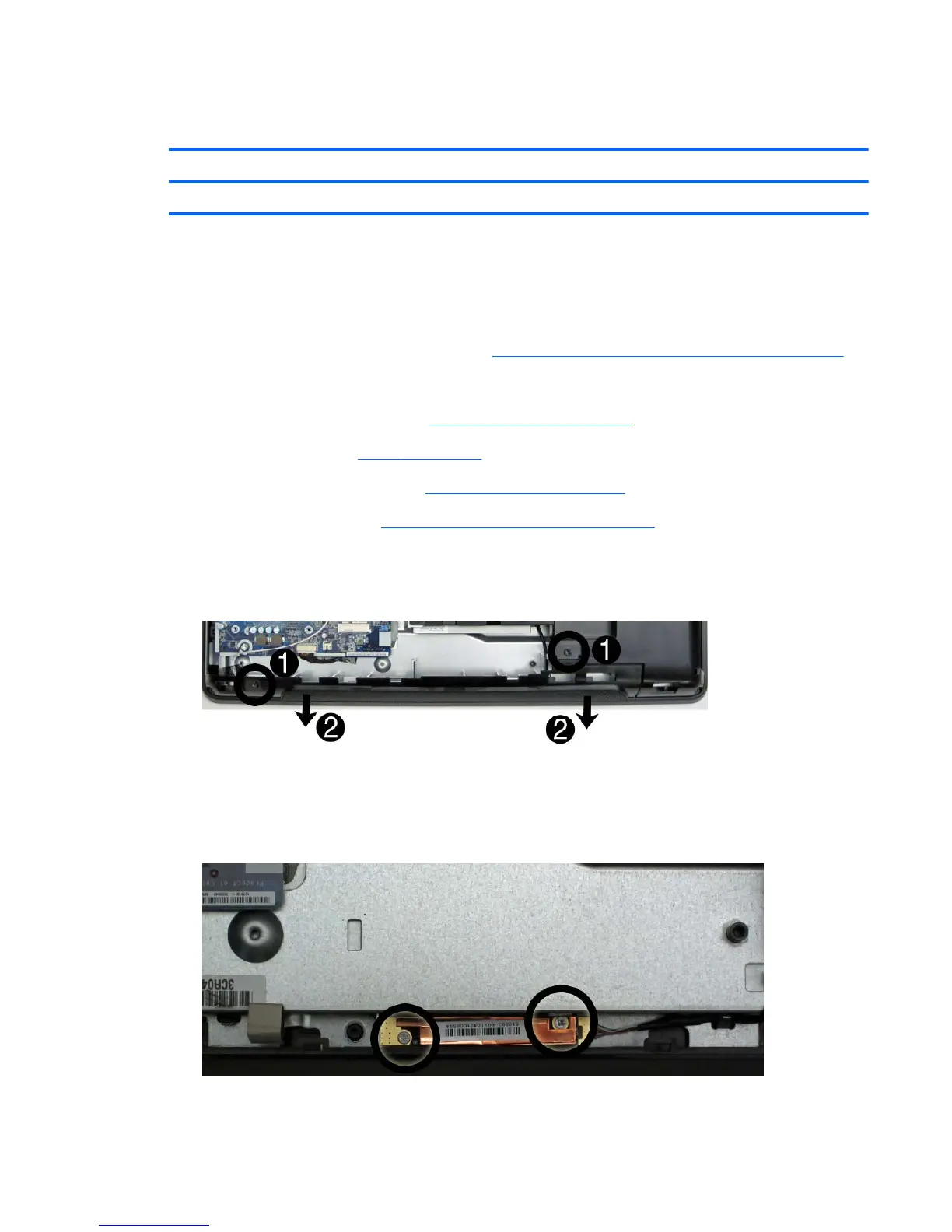

Figure 7-16 Removing the upper cover
8. Remove the two screws that secure the webcam module to the computer.
Figure 7-17 Removing the webcam module screws
