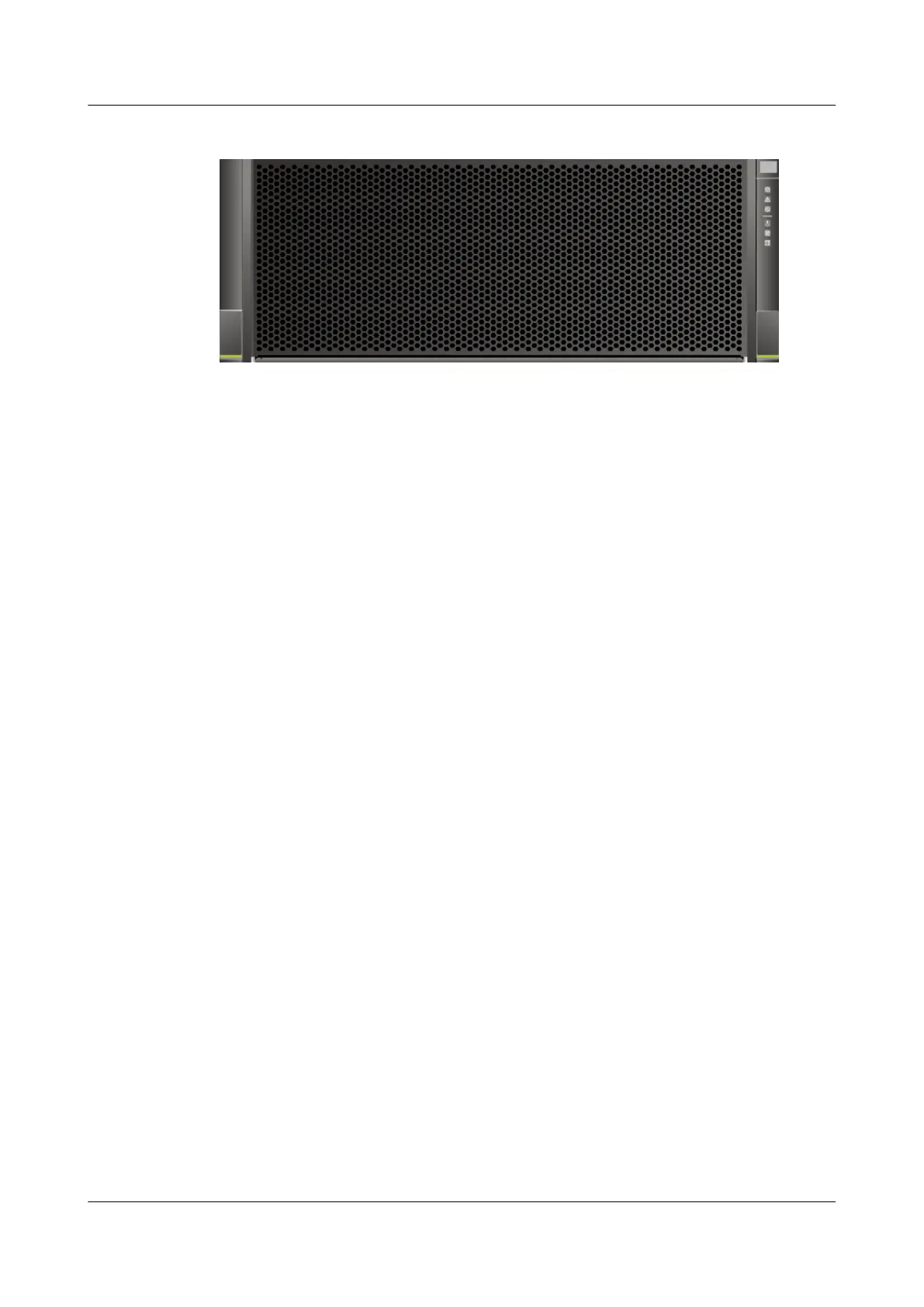

Figure 4-5 4 U high-density disk enclosure with 75 disk slots
4.2 2 U Controller Enclosure
This section describes a controller enclosure in terms of its hardware structure, component
functions, front and rear views, and indicators.
4.2.1 Overview
The controller enclosure adopts a modular design and consists of a system subrack,
controllers, power modules, and disk modules.
The 2 U controller enclosure of OceanStor 2600 V3 supports both AC and DC power
modules, and a 2 U controller enclosure of OceanStor 2600 V3 supports dual controllers only.
The following figure shows the structure of OceanStor 2600 V3 with dual controllers and AC
power modules.
Overall Structure
Figure 4-6 shows the overall structure and components of a 2 U 25-disk controller enclosure,
and Figure 4-7 shows the overall structure and components of a 2 U 12-disk controller
enclosure.
OceanStor 2600 V3
Product Description
4 Hardware Architecture
Issue 09 (2019-05-15) Copyright © Huawei Technologies Co., Ltd. 18
