No. Indicator Status Description
3 Link/Speed indicator of
the 8 Gbit/s Fibre
Channel port
l Steady blue: Data is being transmitted
between the storage system and the
application server at a rate of 8 Gbit/s.
l Blinking blue: Data is being transferred.
l Steady green: Data is being transmitted
between the storage system and the
application server at a rate of 2 Gbit/s or 4
Gbit/s.
l Blinking green: Data is being transferred.
l Steady red: The port is faulty.
l Off: The port link is down.
4.2.2.7 GE Electrical Interface Module
Function
A GE electrical interface module has four 1 Gbit/s electrical ports.
Ports

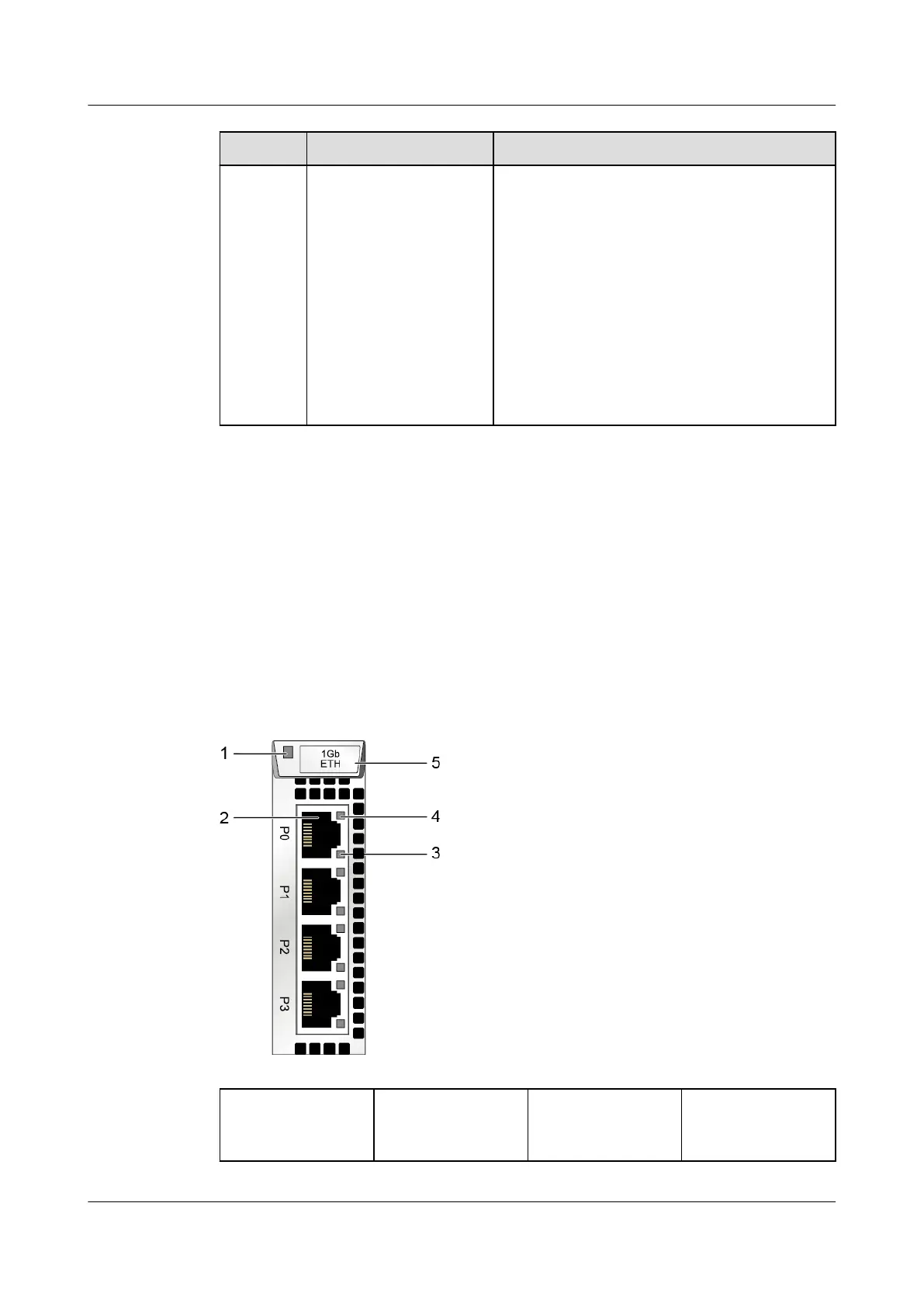

Figure 4-21 shows the appearance of a GE electrical interface module.
Figure 4-21 GE electrical interface module
1
Power indicator/Hot
Swap button on the
interface module
2 GE electrical port
OceanStor 2600 V3
Product Description
4 Hardware Architecture
Issue 09 (2019-05-15) Copyright © Huawei Technologies Co., Ltd. 35
