4.3.1 Overview
The disk enclosure consists of a system subrack, expansion modules, disk modules, and
power modules.
Overall Structure
Figure 4-33 shows the overall structure of a disk enclosure.
NOTE
A 2 U SAS disk enclosure can use AC or DC power modules. The following figure uses the AC power
module as an example.

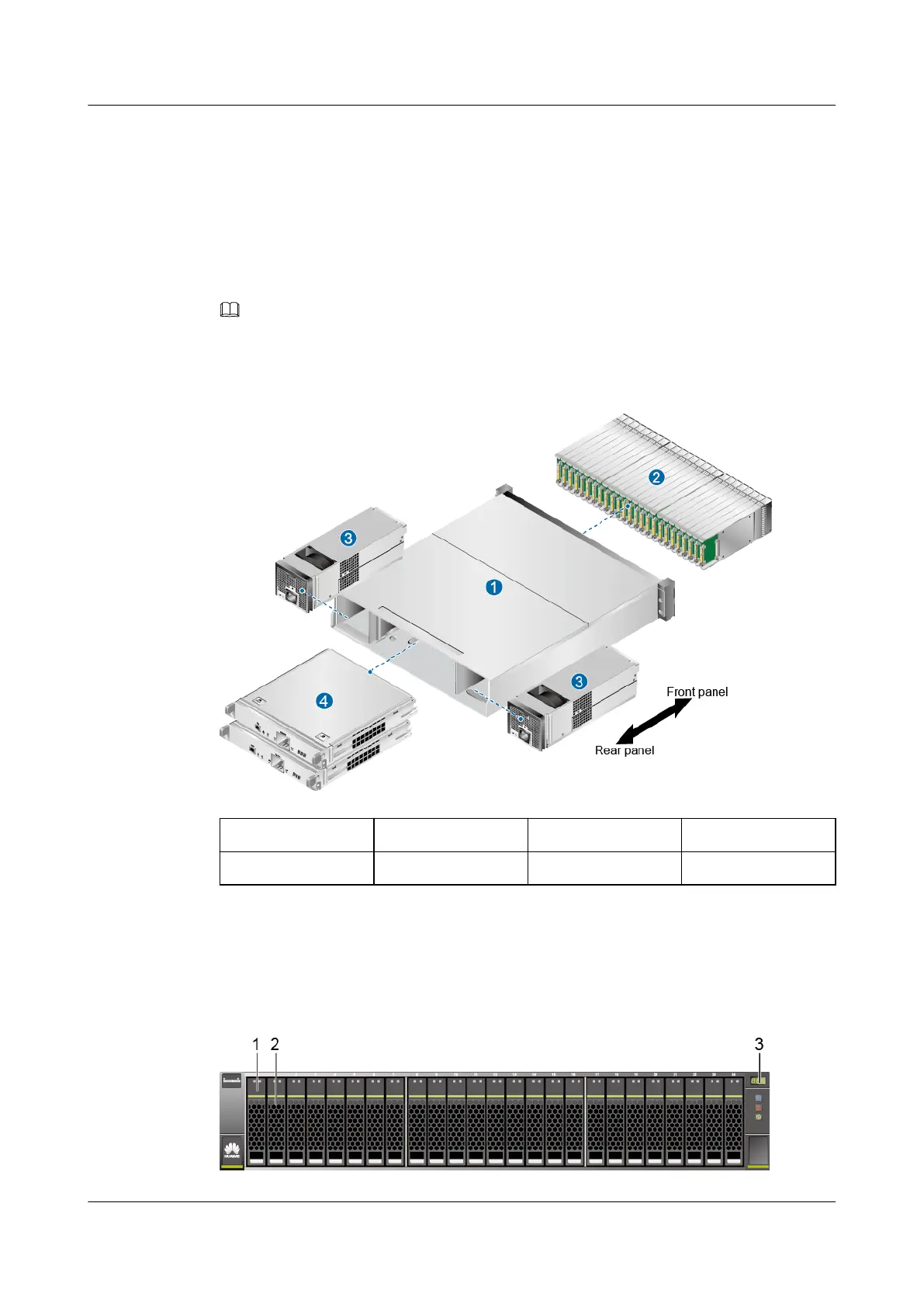

Figure 4-33 Overall structure of a disk enclosure
1 System subrack 2 Disk module
3 Power module 4 Expansion module
Front View
Figure 4-34 shows the front view of a disk enclosure.
Figure 4-34 Front view of a disk enclosure
OceanStor 2600 V3
Product Description
4 Hardware Architecture
