Table 4-14 Indicators on a power module
No. Indicator Status and Description
5 Running/Alarm indicator of
the power/fan module
l Steady green: The power module and fan module
are normal.
l Blinking green: The power input is normal but the
device is powered off.
l Steady red: The power module or fan module is
faulty.
l Off: No external power input is found.
4.3.2.4 Disk Module
Disk modules provide storage capacity for a storage system. Disk modules can function as
system coffer disks to save service data, system data, and cache data.
Appearance

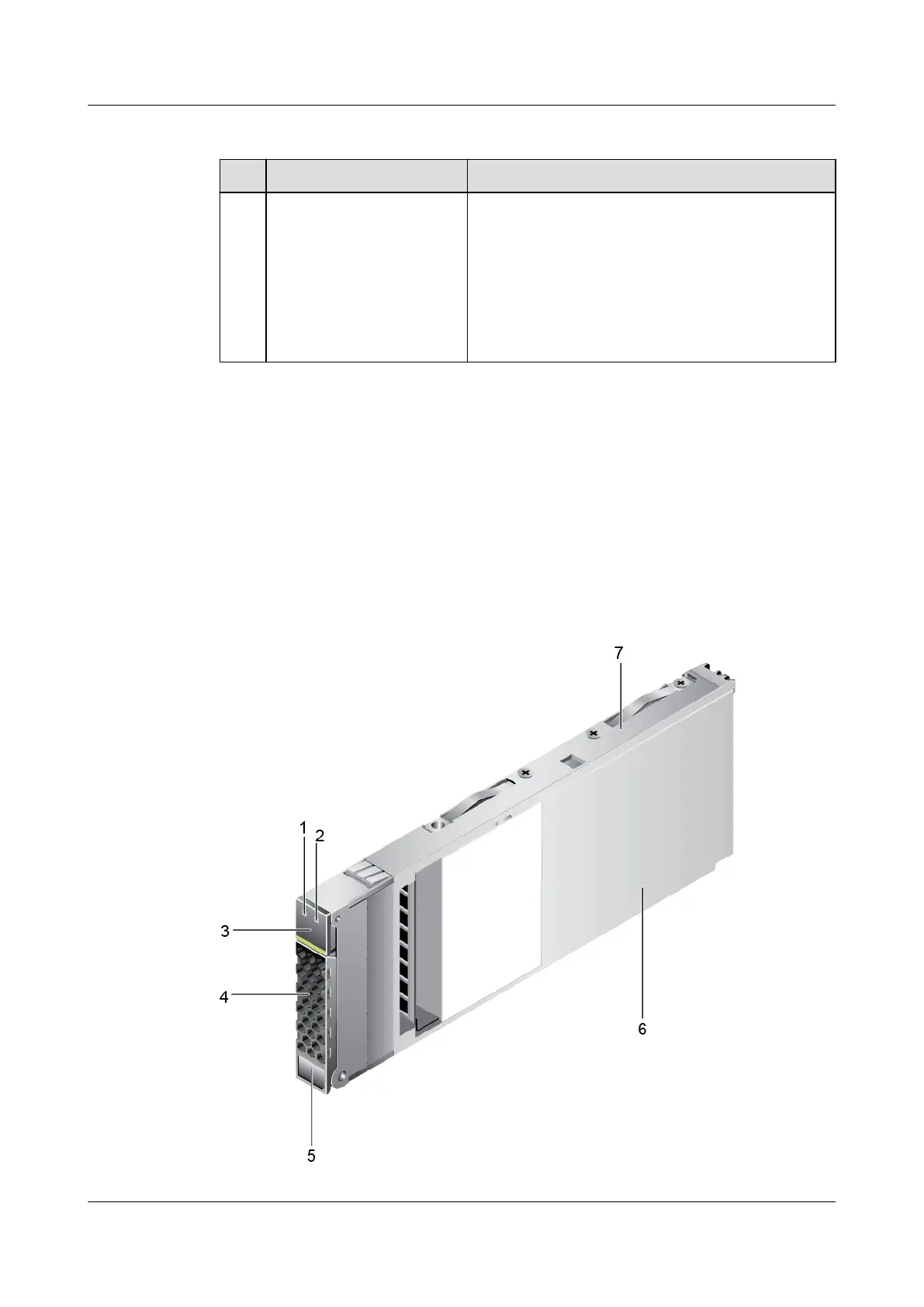

Figure 4-42 shows the appearance of a disk module.
Figure 4-42 Disk module
OceanStor 2600 V3
Product Description
4 Hardware Architecture
Issue 09 (2019-05-15) Copyright © Huawei Technologies Co., Ltd. 57
