Indicator
Table 4-26 describes the indicator on a disk module of a storage system that is powered on.
Table 4-26 Indicator on a disk module
No. Indicator Status and Description
5 Disk module status
indicator
l Steady green: The disk module is working
correctly.
l Blinking green: Data is being read and written
on the disk module.
l Steady red: The disk module is faulty.
l Blinking red: The disk module is located.
l Off: The disk module is powered off or
powered on incorrectly.
4.5.2.4 Power Module
The storage system supports AC power modules that ensure that a high-density disk enclosure
works correctly in maximum power consumption mode.
Appearance

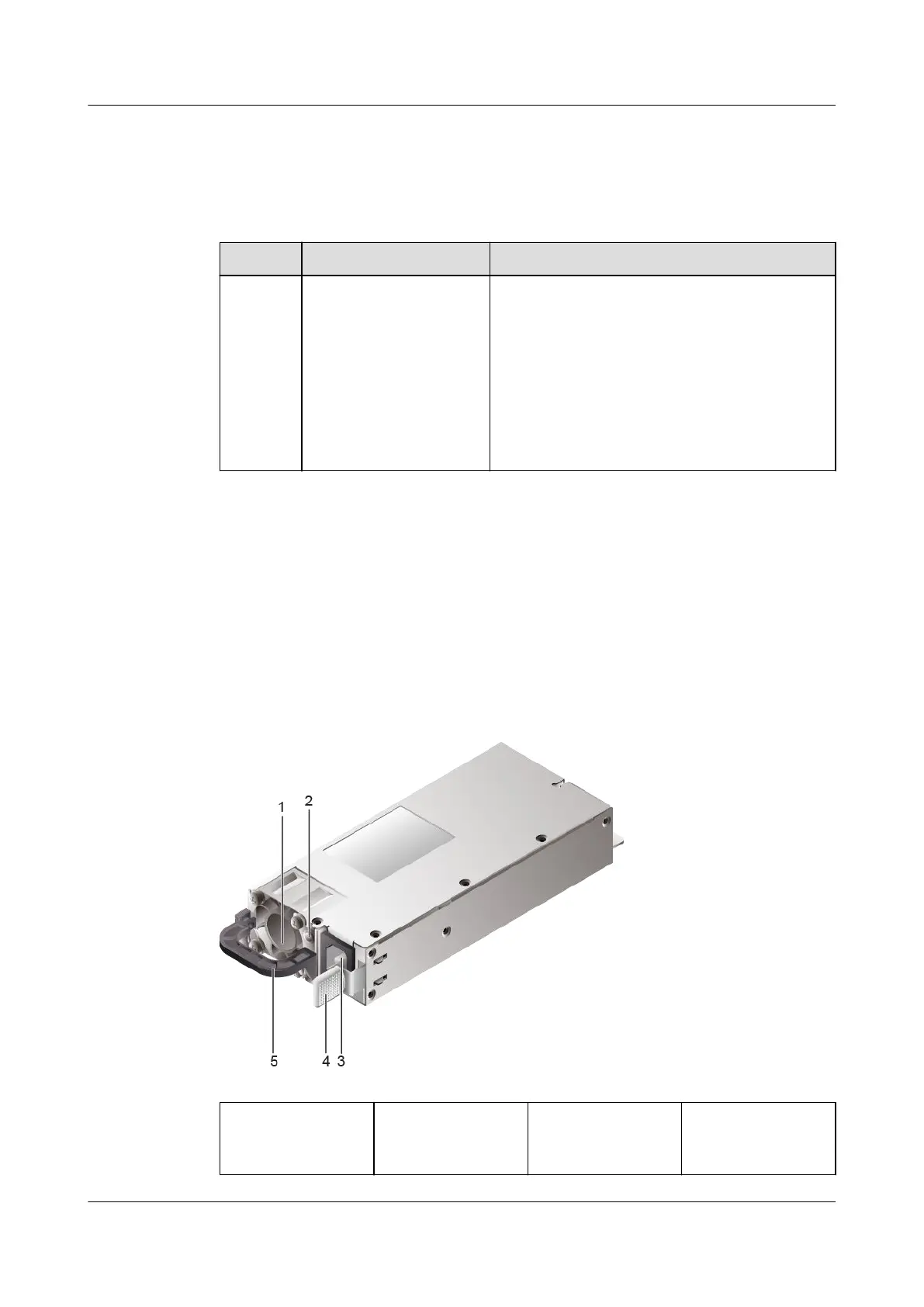

Figure 4-66 shows the appearance of a power module.
Figure 4-66 AC power module
1
Power module fan 2 Running/Alarm
indicator of the
power module
OceanStor 2600 V3
Product Description
4 Hardware Architecture
Issue 09 (2019-05-15) Copyright © Huawei Technologies Co., Ltd. 82
