3 Power module
socket
4 Power module latch
5 Power module
handle
- -
Indicator
Table 4-27 describes the indicator on a power module of a storage system that is powered on.
Table 4-27 Indicator on a power module
No.
Indicator Status and Description
2 Running/Alarm indicator
of the power module
l Steady green: The power module is working
correctly.
l Off: The power module is powered off, or
undervoltage, overvoltage, overtemperature, or
short-circuit occurs.
4.5.2.5 Fan Module
A fan module provides heat dissipation and supports the normal running of the disk enclosure
in maximum power consumption mode.
Appearance

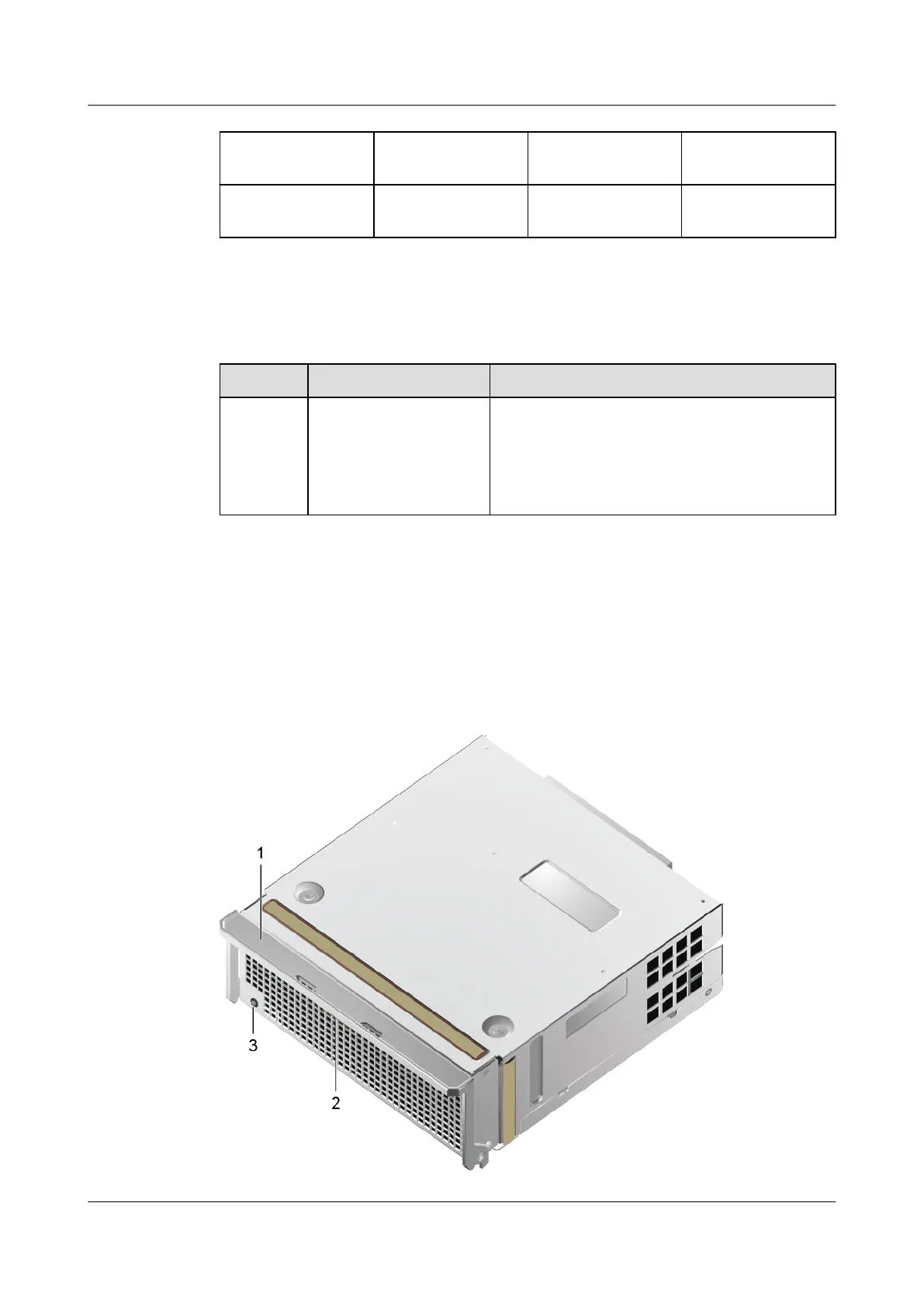

Figure 4-67 shows the appearance of a fan module.
Figure 4-67 Fan module
OceanStor 2600 V3
Product Description
4 Hardware Architecture
Issue 09 (2019-05-15) Copyright © Huawei Technologies Co., Ltd. 83
