Table 4-20 Indicators on a fan module
No. Indicator Status and Description
3 Running/Alarm indicator
of the fan module
l Steady green: The fan module is working
correctly.
l Steady red: The fan module is faulty.
l Off: The fan module is powered off.
4.4.2.5 Disk Module
Disk modules provide storage capacity for a storage system to store service data and can
function as system coffer disks.
Appearance

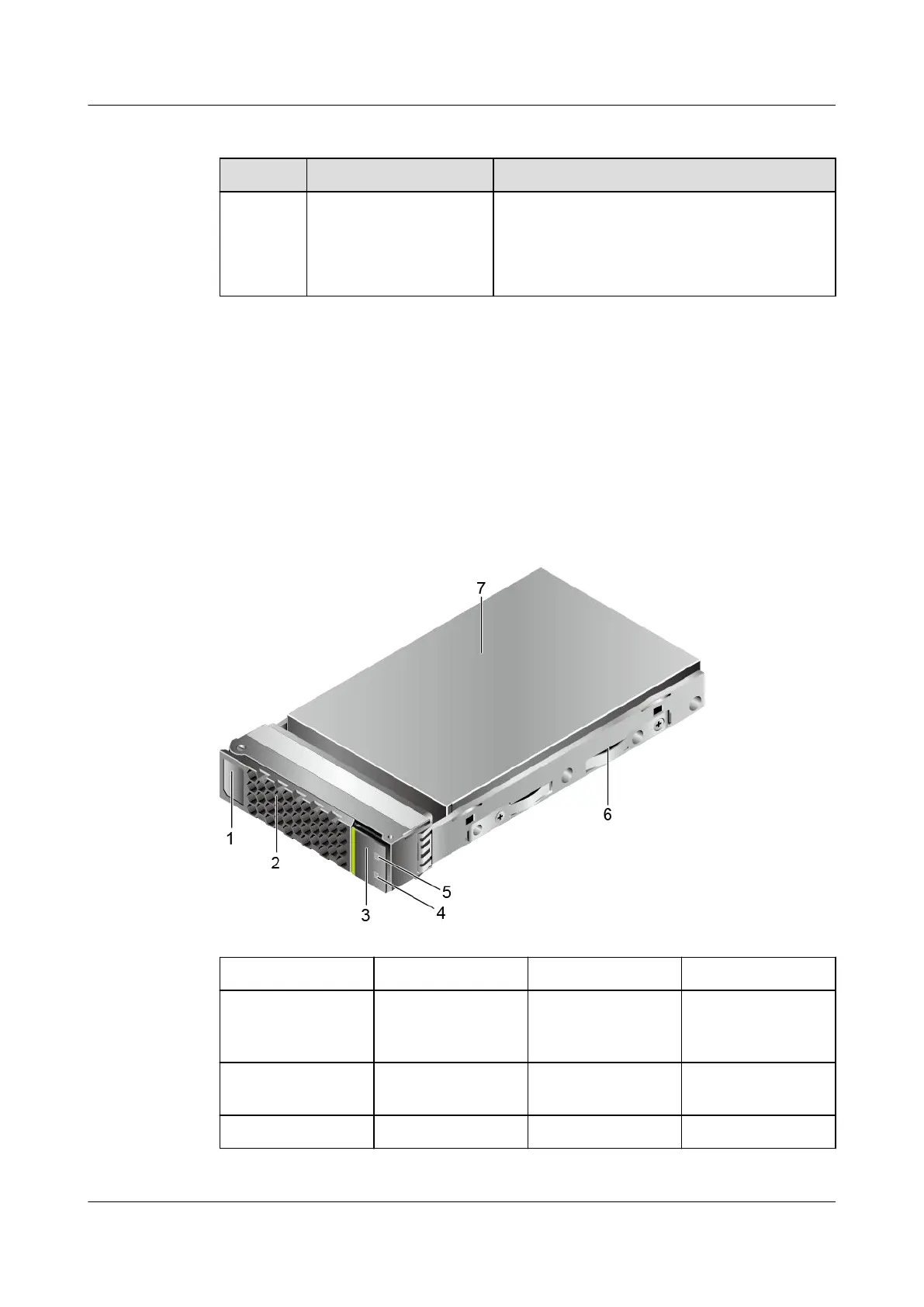

Figure 4-55 shows the appearance of a disk module.
Figure 4-55 Disk module
1
Disk module label 2 Disk module handle
3 Disk module latch 4 Alarm/Location
indicator of the disk
module
5 Running indicator of
the disk module
6 Disk tray
7 Disk - -
OceanStor 2600 V3
Product Description
4 Hardware Architecture
Issue 09 (2019-05-15) Copyright © Huawei Technologies Co., Ltd. 70
