No. Indicator Status and Description
2 Alarm/Location
indicator of the disk
module
l Steady red: The disk module is faulty.
l Blinking red: The disk module is being
located.
l Off: The disk module is working
correctly or hot swappable.
4.2.2.5 8 Gbit/s Fibre Channel Interface Module (Four Ports)
Function
An 8 Gbit/s Fibre Channel interface module (four ports) provides four 8 Gbit/s Fibre Channel
ports. If the port speed is auto-negotiable, the port will auto-negotiate 2 Gbit/s, 4 Gbit/s, or 8
Gbit/s. If the port speed is manually set but inconsistent with the data transfer speed of the
connected application server, the connection will be interrupted.
Ports

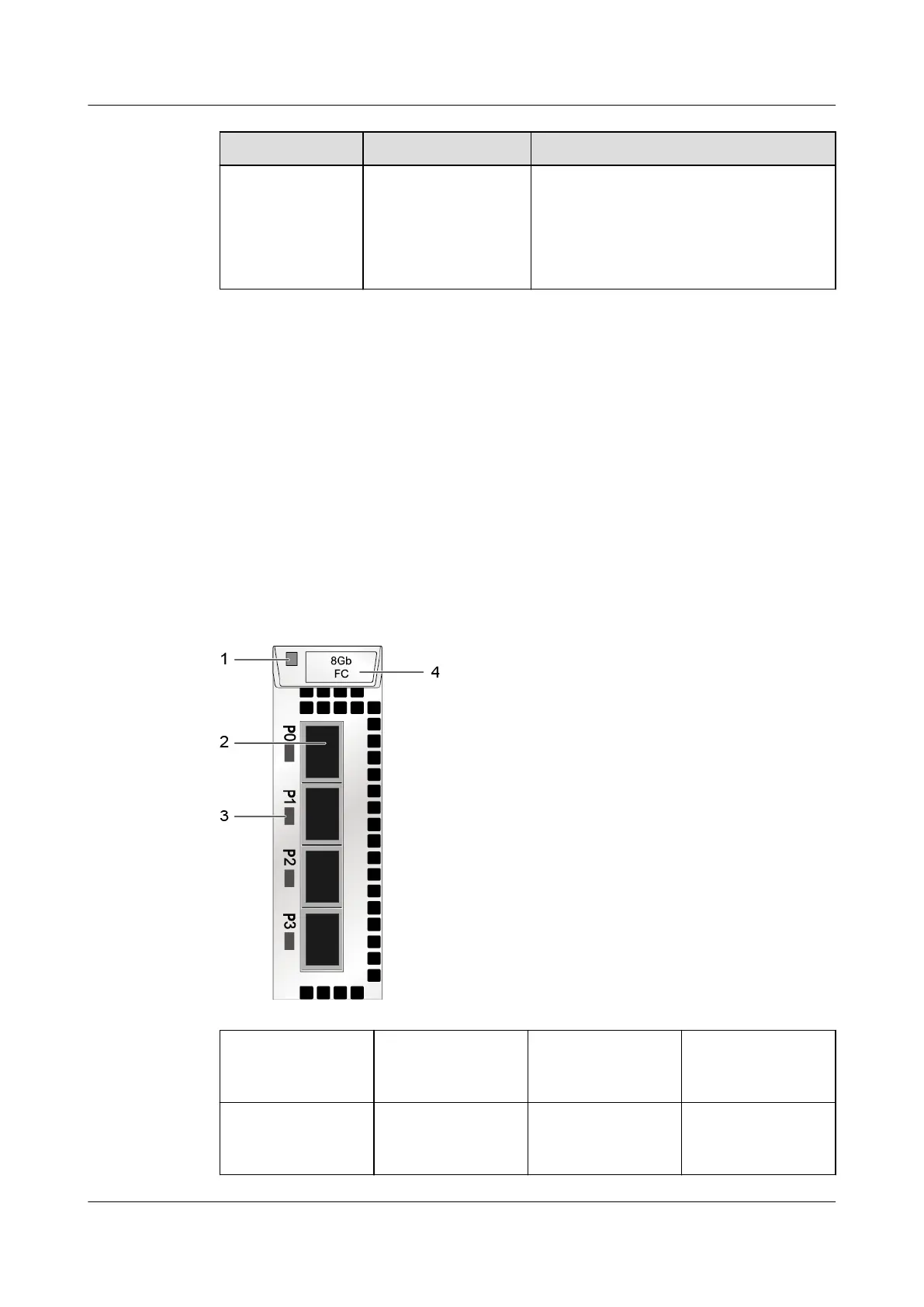

Figure 4-19 shows the appearance of an 8 Gbit/s Fibre Channel interface module (four ports).
Figure 4-19 8 Gbit/s Fibre Channel interface module (four ports)
1
Power indicator/Hot
Swap button on the
module
2 8 Gbit/s Fibre
Channel port
3 Link/Speed indicator
of an 8 Gbit/s Fibre
Channel port
4 Module handle
OceanStor 2600 V3
Product Description
4 Hardware Architecture
