Step 10 Press and hold down the latches on both sides of a fan module bracket, and lift the fan
support. Use the same method to lift the other fan module bracket. See Figure 7-31.

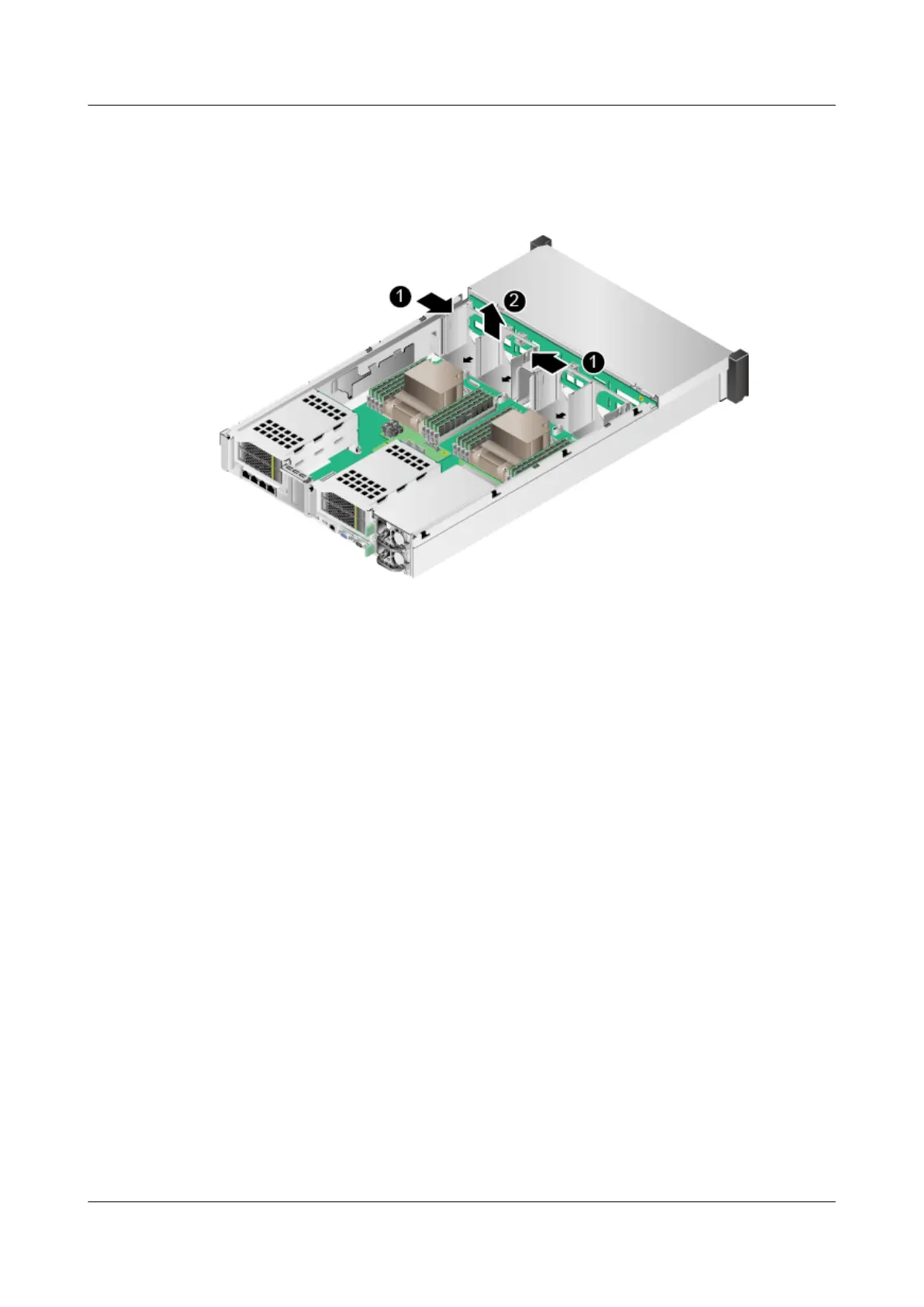

Figure 7-31 Removing a fan module bracket
Step 11 Remove the cable to be removed.
Step 12 Place the removed cable in an ESD bag.
----End
7.18 Installing an Internal Cable
Install an internal cable to replace the original one.
Procedure
Step 1 Wear an ESD wrist strap. For details, see 1 Safety Instructions.
Step 2 Remove the cable to be replaced. For details, see 7.17 Removing an Internal Cable.
Step 3 Take a spare cable out of the ESD bag.
Step 4 Install the spare cable. For details about cable port positions, see 2.7 Internal Cabling.
Step 5 Install fan module brackets in the chassis. See Figure 7-32.
RH2288 V3 Server
User Guide
7 Replacing Parts
Issue 32 (2019-03-28) Copyright © Huawei Technologies Co., Ltd. 157
