2.2 Appearance
Front Panel

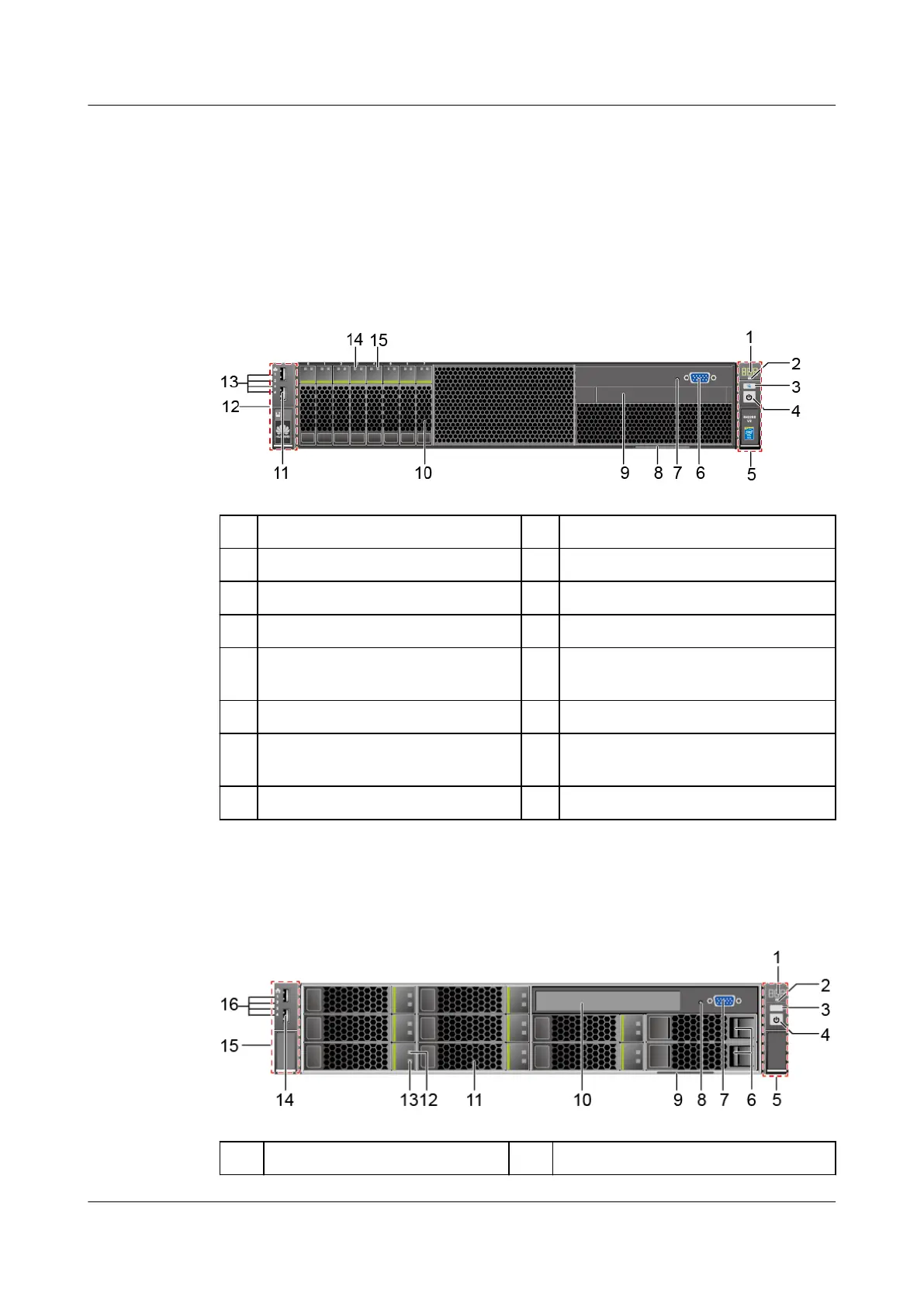

Figure 2-2 shows the front panel of an RH2288 V3 with eight 2.5-inch hard disks.
Figure 2-2 Front panel of an RH2288 V3 with eight 2.5-inch hard disks
1 Fault diagnosis LED 2 Health indicator
3 UID button/indicator 4 Power button/indicator
5 Right mounting ear 6 VGA port
7 NMI button 8 Label plate with an ESN label
9 Built-in DVD drive 10 Hard disks (numbered 0 to 7 from left
to right)
11 USB 2.0 port 12 Left mounting ear
13 Network port link status indicators
(numbered 1 to 4 from top to bottom)
14 Hard disk fault indicator
15 Hard disk activity indicator - -
Figure 2-3 shows the front panel of an RH2288 V3 with eight 3.5-inch hard disks.
Figure 2-3 Front panel of an RH2288 V3 with eight 3.5-inch hard disks
1
Fault diagnosis LED 2 Health indicator
RH2288 V3 Server
User Guide
2 Overview
Issue 32 (2019-03-28) Copyright © Huawei Technologies Co., Ltd. 8
