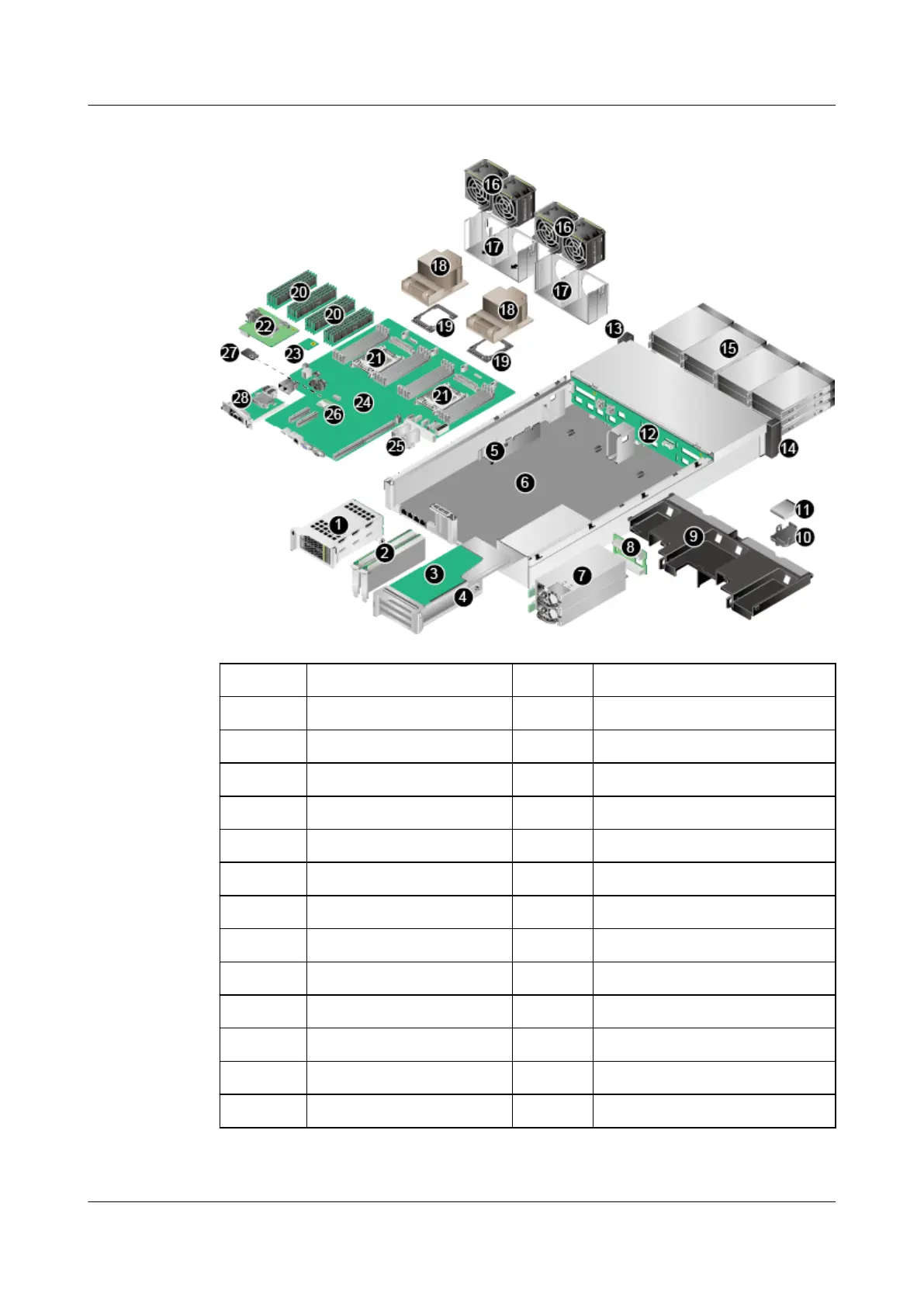

Figure 2-17 RH2288 V3 components
1 Rear hard disk module 2 PCIe card on the mainboard
3 PCIe card on a riser card 4 I/O module
5 Internal cable guide 6 Chassis
7 PSU 8 PSU backplane
9 Air duct 10 Supercapacitor tray
11 Supercapacitor 12 Hard disk backplane
13 Right mounting ear 14 Left mounting ear
15 Hard disk 16 Fan module
17 Fan module bracket 18 Heat sink
19 CPU installation tool 20 DIMM
21 CPU 22 RAID controller card
23 TPM (optional) 24 Mainboard
25 SATADOM 26 Dual-SD module
27 SD card 28 Flexible NIC
