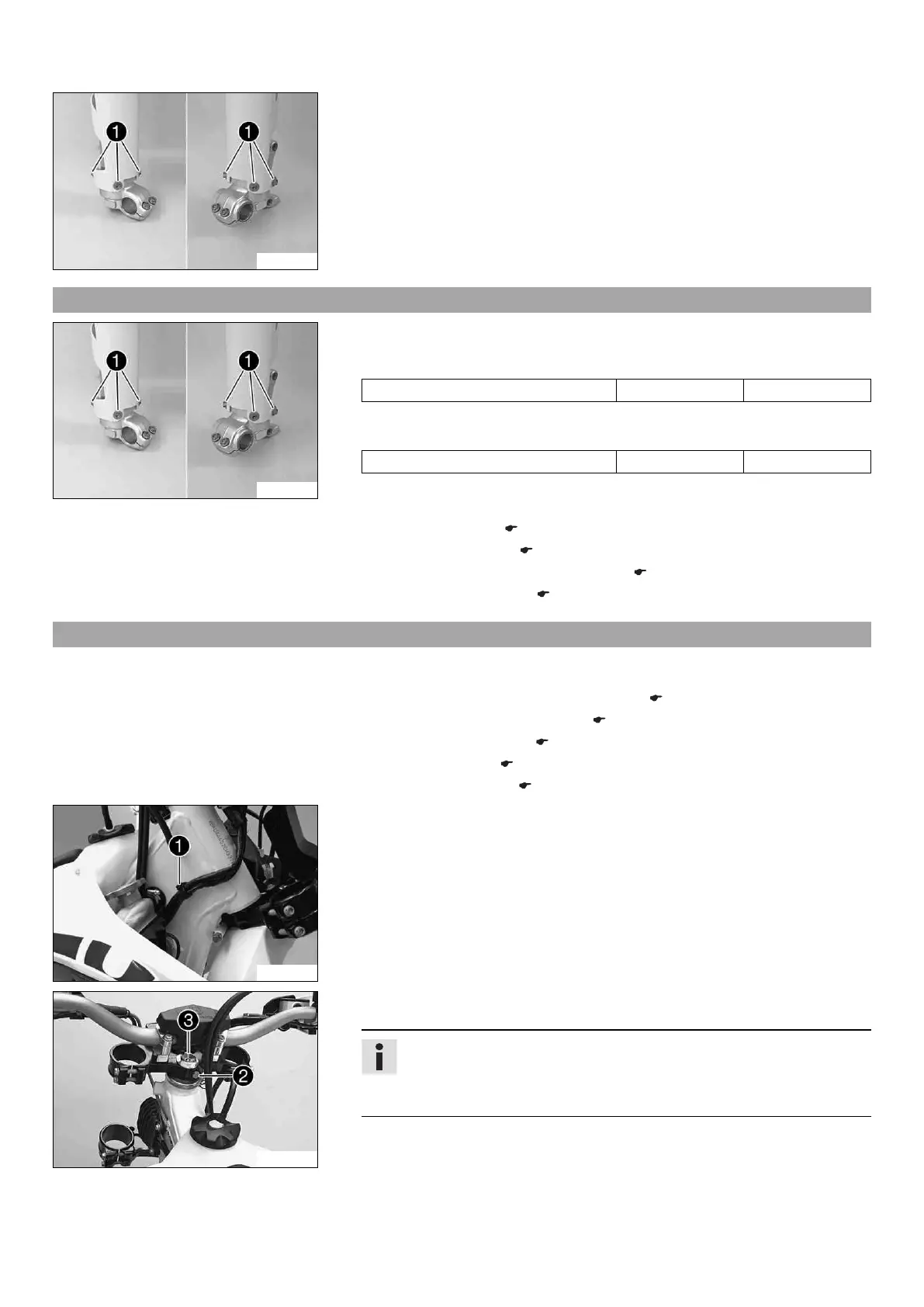

12 SERVICE WORK ON THE CHASSIS 44
C00565-10
Main work
– Remove screws
1
on the left fork leg. Remove the fork protector upwards.
– Remove the screws on the right fork leg. Remove the fork protector upwards.
12.10 Installing the fork protector x
C00565-10
Main work
– Position the fork protector on the left fork leg. Mount and tighten screws
1
.
Guideline
Remaining screws, chassis M6 10 Nm (7.4 lbf ft)
– Position the fork protector on the right fork leg. Mount and tighten the screws.
Guideline
Remaining screws, chassis M6 10 Nm (7.4 lbf ft)
Finishing work
– Install the fork legs. x ( p. 43)
– Install the front wheel. x ( p. 74)
– Install the headlight mask with the headlight. ( p. 82)
– Check the headlight setting. ( p. 84)
12.11 Removing the lower triple clamp x
Preparatory work
– Switch off all power consumers and switch off the engine.
– Remove the headlight mask with the headlight. ( p. 82)
– Raise the motorcycle with a lift stand. ( p. 41)
– Remove the front wheel. x ( p. 74)
– Remove the fork legs. ( p. 42)
– Remove the front fender. ( p. 48)
C00599-10
Main work
– Open cable holder
1
in front of the right radiator and detach the wiring harness.
C00566-13
– Remove screw
2
. Remove screw
3
, take off the upper triple clamp with the han-
dlebar and set it aside.
Info
Protect the motorcycle and its attachments against damage by covering
them.
Do not bend the cables and lines.
