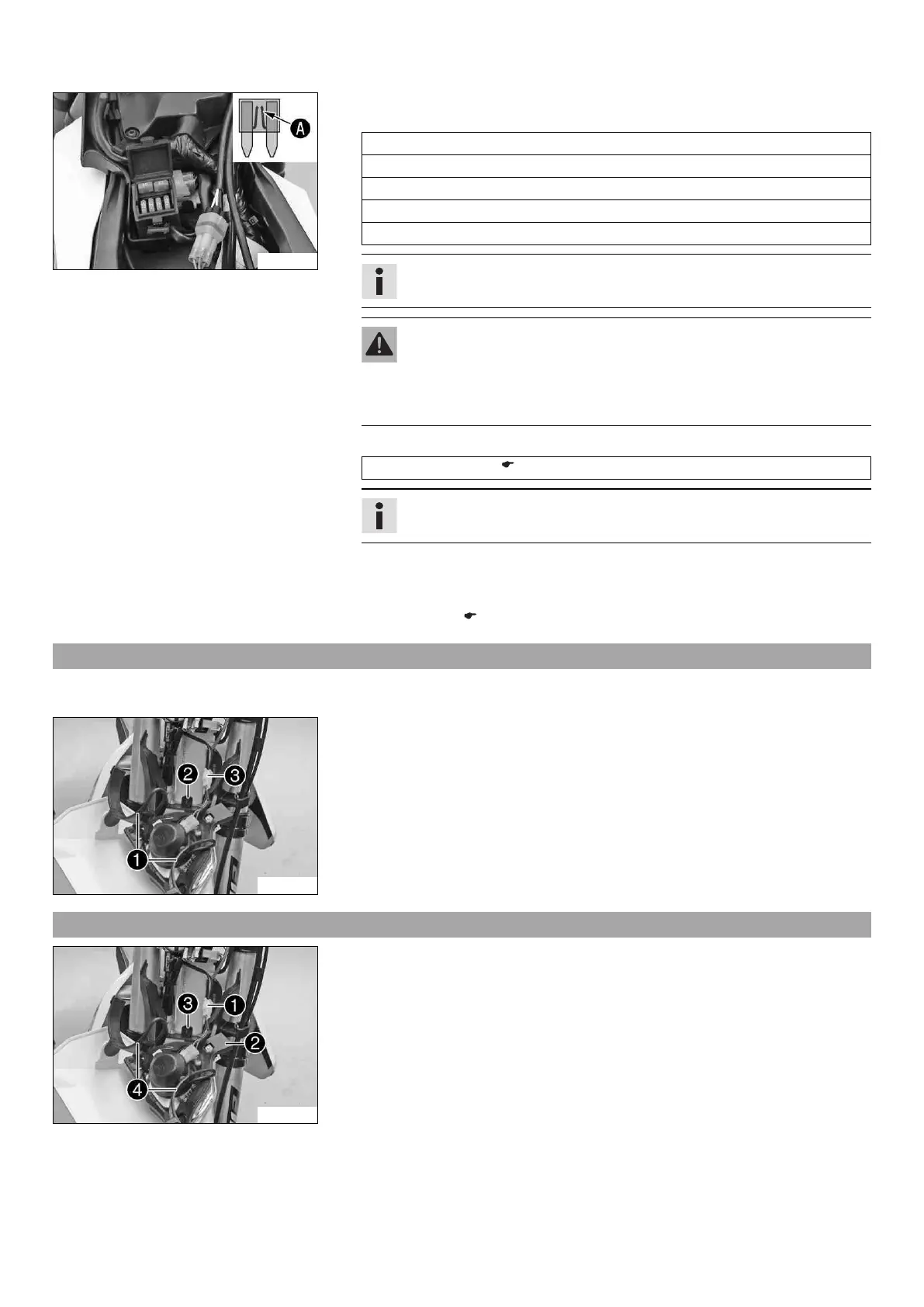

15 ELECTRICAL SYSTEM 82
B01642-10
– Remove the defective fuse.
Guideline
Fuse 1 - 10 A - EFI control unit
Fuse 2 - 10 A - fuel pump
Fuse 3 - 10 A - high beam, low beam, parking light, tail light, license plate lamp
Fuse 4 - 10 A - horn, brake light, turn signal, radiator fan (optional)
Fuses res - 10 A - spare fuses
Info
A defective fuse can be identified by the burned-out fuse wire
A
.
Warning
Fire hazard The electrical system can be overloaded if the wrong fuses are
used.
– Use only fuses with the prescribed amperage. Never by-pass or repair
fuses.
– Use spare fuses with the correct rating only.
Fuse (75011088010) ( p. 105)
Tip
Replace the spare fuse in the fuse box so that it is available if needed.
– Check that the power consumer is functioning properly.
– Close the fuse box cover.
Finishing work
– Mount the seat. ( p. 49)
15.6 Removing the headlight mask with the headlight
Preparatory work
– Switch off all power consumers and switch off the engine.
B01787-10
Main work
– Open rubber bands
1
on the fork legs.
– Tilt the headlight mask forward and detach at catch
2
.
– Disconnect connector
3
.
– Take off the headlight mask with headlight.
15.7 Installing the headlight mask with the headlight
B01787-11
Main work
– Plug in connector
1
.
– Check that the lighting is functioning properly.
– Attach headlight holder
2
at catch
3
and position the headlight mask.
