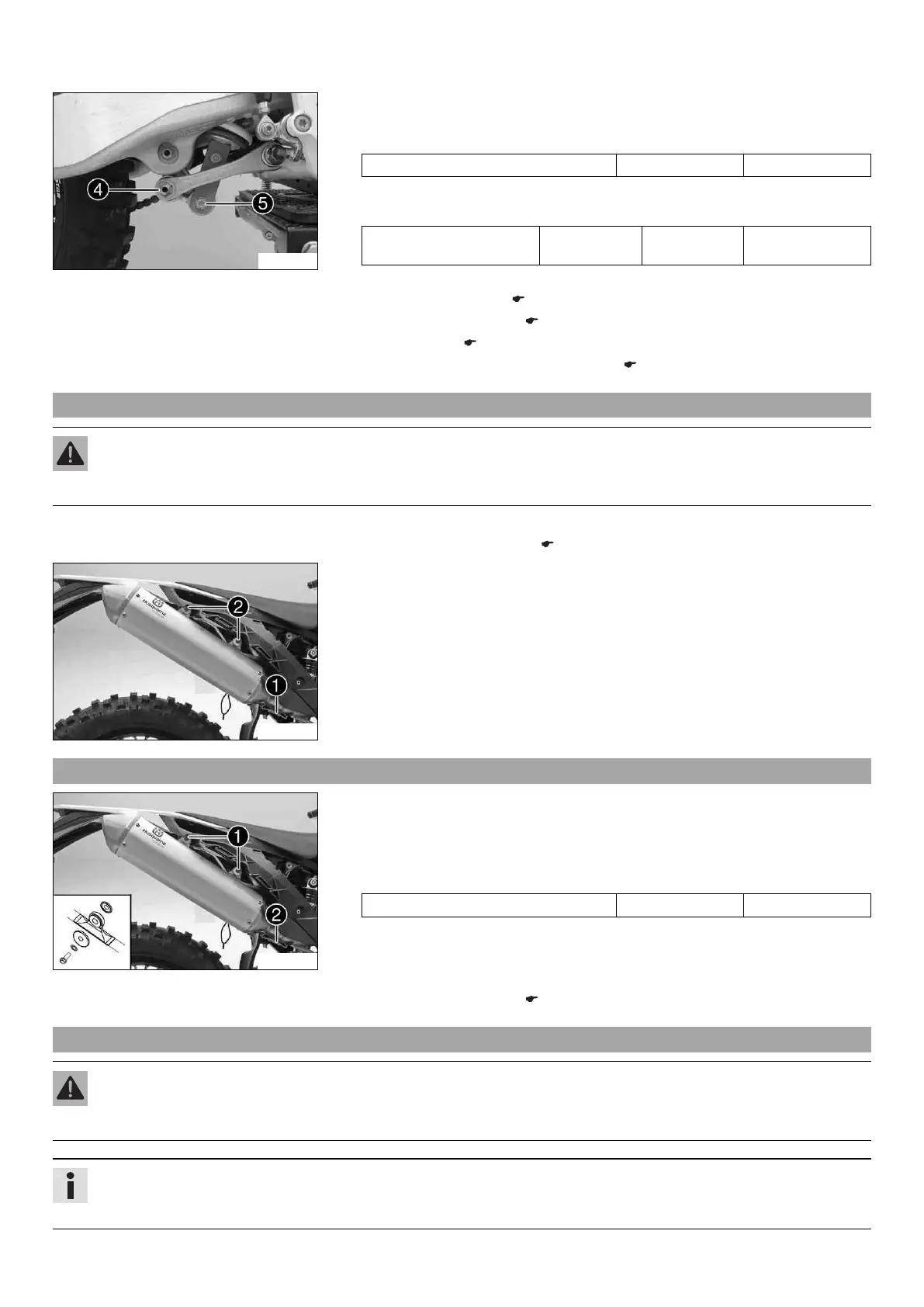

12 SERVICE WORK ON THE CHASSIS 54
309345-11
– Position the angle lever and linkage lever.
– Mount and tighten fitting
4
.
Guideline
Nut, linkage lever on angle lever M14x1.5 80 Nm (59 lbf ft)
– Mount and tighten screw
5
.
Guideline
Screw, bottom shock
absorber
M10 60 Nm
(44.3 lbf ft)
Loctite
®
2701™
Finishing work
– Install the main silencer. ( p. 54)
– Install the right side cover. ( p. 56)
– Mount the seat. ( p. 49)
– Remove the motorcycle from the lift stand. ( p. 41)
12.30 Removing the main silencer
Warning
Danger of burns The exhaust system gets very hot when the vehicle is driven.
– Allow the exhaust system to cool down. Do not touch hot components.
Preparatory work
– Remove the right side cover. ( p. 55)
B01814-11
Main work
– Disconnect spring
1
.
– Remove screws
2
and take off the main silencer.
12.31 Installing the main silencer
B01814-10
Main work
– Mount the main silencer. Mount screws
1
but do not tighten yet.
– Reconnect spring
2
.
– Tighten screws
1
.
Guideline
Remaining screws, chassis M6 10 Nm (7.4 lbf ft)
Finishing work
– Install the right side cover. ( p. 56)
12.32 Changing the glass fiber yarn filling of the main silencer x
Warning
Danger of burns The exhaust system gets very hot when the vehicle is driven.
– Allow the exhaust system to cool down. Do not touch hot components.
Info
Over time, the fibers of the glass fiber yarn escape and the damper "burns" out.
Not only is the noise level higher, the performance characteristic changes.
