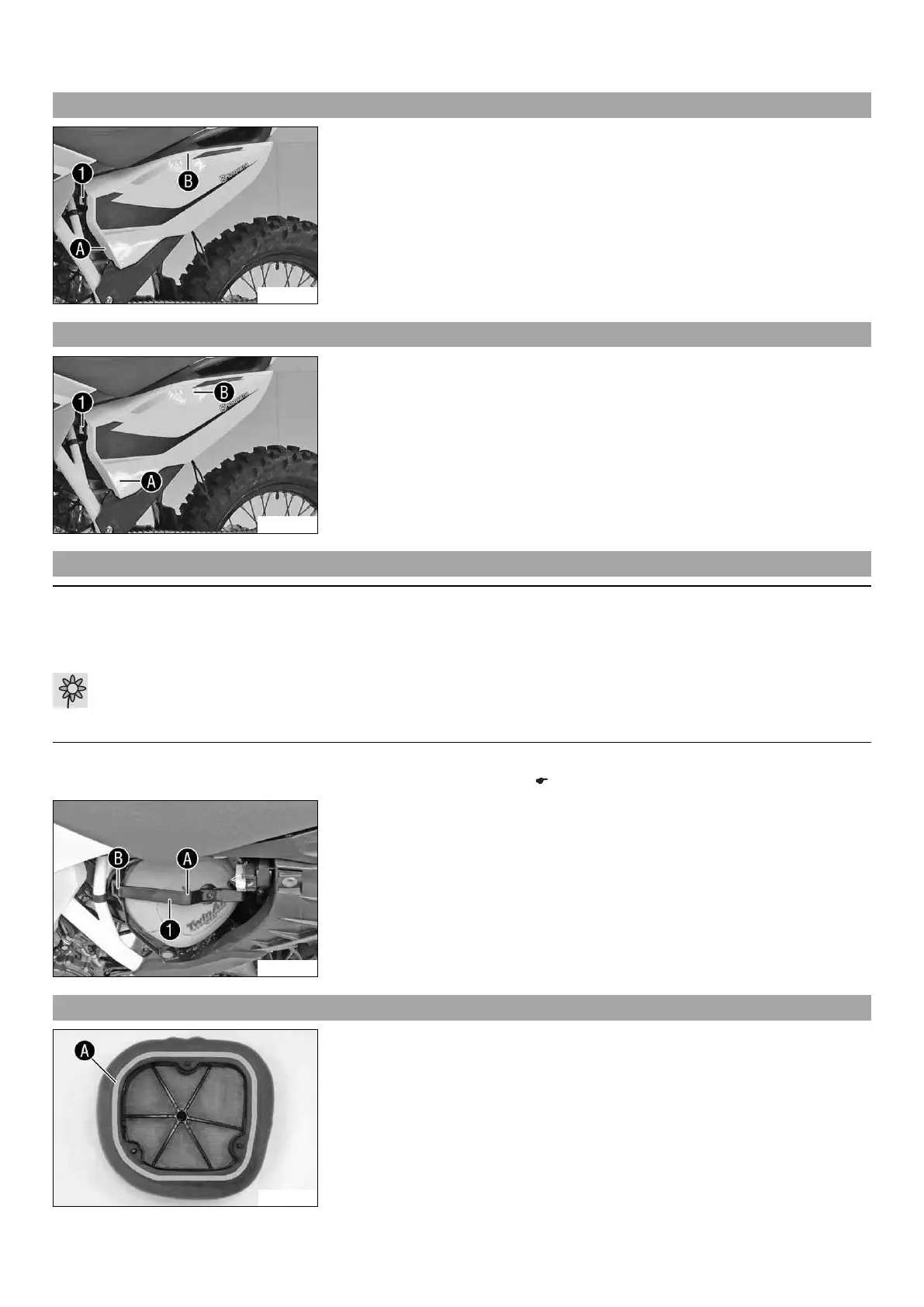

12 SERVICE WORK ON THE CHASSIS 50
12.22 Removing the air filter box lid
B01817-10
– Release catch
1
, pull off the air filter box lid sideways in areas
A
and
B
and
remove toward the rear.
12.23 Installing the air filter box lid
B01817-11
– Position the air filter box lid and tab
1
. Engage the air filter box lid in areas
A
and
B
.
– Engage tab
1
.
12.24 Removing the air filter x
Note
Engine failure Unfiltered intake air has a negative effect on the service life of the engine.
– Never ride the vehicle without an air filter since dust and dirt can get into the engine and result in increased wear.
Warning
Environmental hazard Hazardous substances cause environmental damage.
– Oil, grease, filters, fuel, cleaners, brake fluid, etc., should be disposed of as stipulated in applicable regulations.
Preparatory work
– Remove the air filter box lid. ( p. 50)
B01816-11
Main work
– Push air filter holder
1
toward the air filter at position
A
and detach it at end
B
.
Swing the air filter holder to one side and remove the air filter with the air filter sup-
port.
– Remove the air filter from the air filter support.
12.25 Installing the air filter x
101351-10
Main work
– Mount the clean air filter on the air filter support.
– Grease the air filter in area
A
.
